Shockwave Parts
Pack of sacrifical 3/8'' clip-in sockets
Pack of sacrifical 3/8'' clip-in sockets
Regular price
$9.49 CAD
Regular price
Sale price
$9.49 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

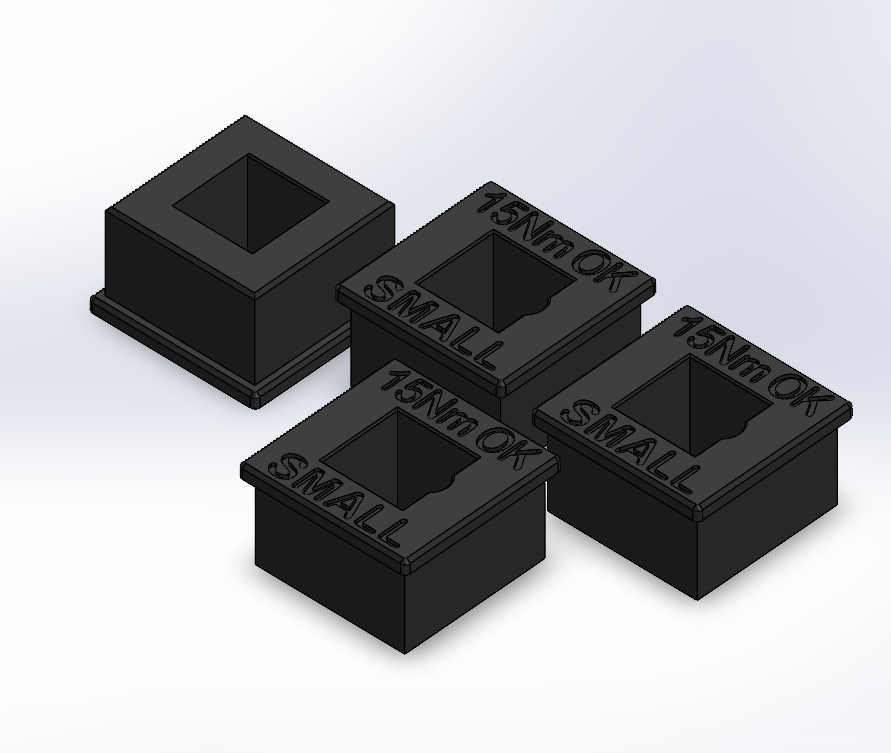

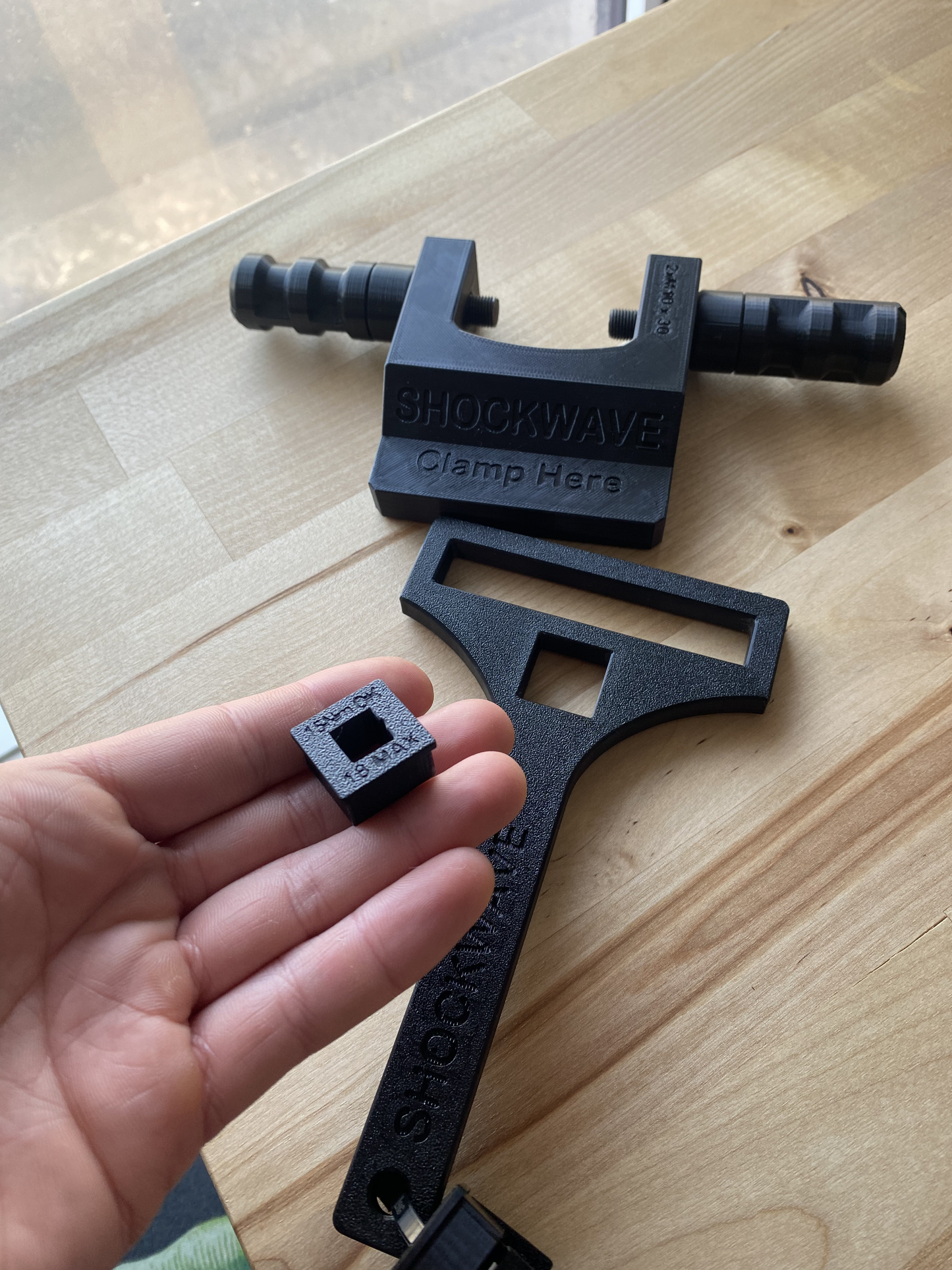

Trunnion Vise Holder Sacrificial 3/8″ Sockets (Set of 4)

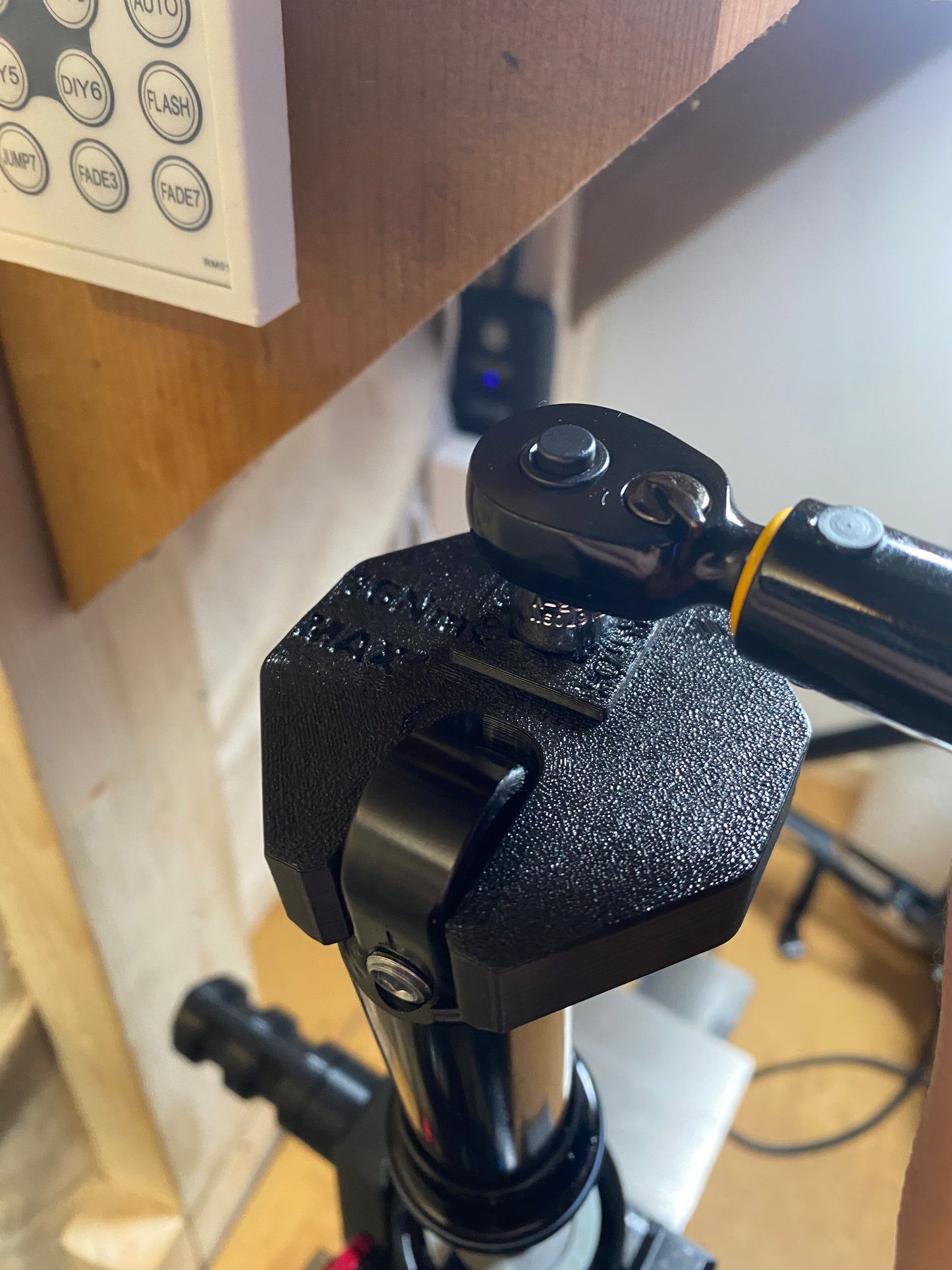

These sacrificial sockets let you use a 3/8″ torque wrench with the Trunnion Vise Holder and the Shock Eyelet Torque Tool. It’s the only way we’ve found to safely torque damper parts using plastic tools. Yes, they’ll eventually wear out, but for the few times you’ll ever need to torque one of these things, they’re totally worth it.
If you're replacing the damper tube on a Float X2 or a damper shaft on a DPX2 or Float X, this tool helps, but honestly, a luggage scale is often better. You can see how much torque you apply in real time and it's even more precise than cheap torque wrenches.
What’s Included:
- Small Socket: Fits 9.35 – 9.45 mm
- Medium Socket: Fits 9.45 – 9.55 mm
- Large Socket: Fits 9.55 – 9.65 mm
- Note: If your measurement is over 9.65 mm, contact us.
Specifications:
- Tolerance: ±0.01 mm for a tight fit
- Fits standard 3/8″ torque wrench drives
Performance & Usage:
- Designed for up to 15 Nm of torque continuously
- Will shear after 5–6 uses above 15 Nm; expected failure at ≈18–19 Nm
- If you need more than 15 Nm, use a luggage scale or the calculator below
- You should honestly just always use a luggage scale, there is even a preset in our calculator.
- Not available in 1/4″ drive, use a 1/4″ to 3/8″ adapter if needed
⚠️ Warning & Disclaimer:
- These sockets are sacrificial. Keep torque under 15 Nm whenever possible.
- The Trunnion Torque Tool and Eyelet Tool are not included.
- Always confirm socket fit before use, loose sockets may fail under just 10 Nm.
- For DIY use only. Read our full guide on the Socket Size Calculator page and our Terms of Service.
