Universal Steerer Tube Dummy
Universal Steerer Tube Dummy
Couldn't load pickup availability
Universal Steerer Tube Dummy

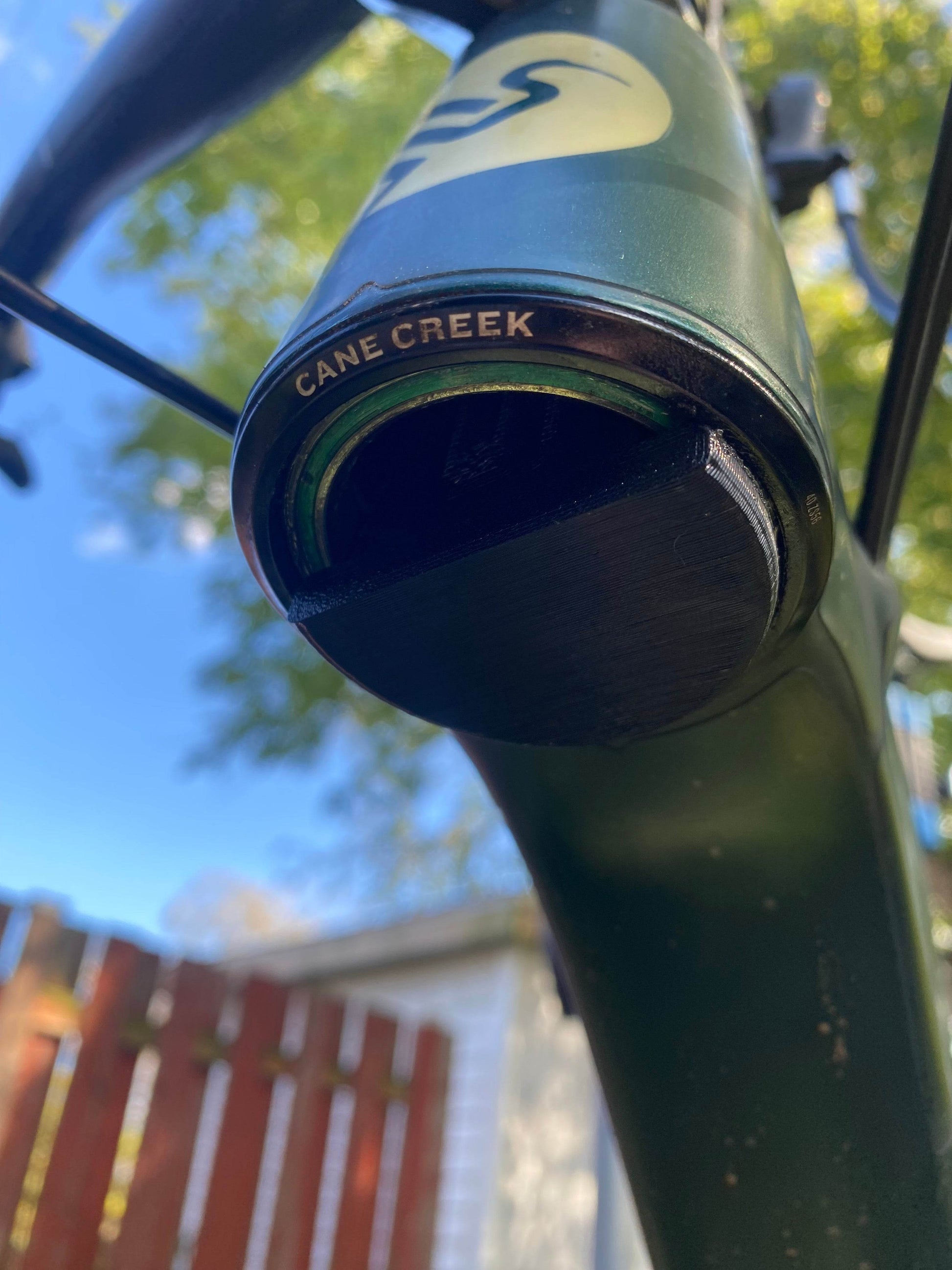

The Universal Steerer Tube Dummy replaces your fork steerer tube whenever the fork is removed from the bike.
It keeps your headset, spacers, stem, and brake caliper fully assembled, aligned, and organized for transport, storage, or service.
No loose headset parts.
No mixed spacers.
No caliper hanging by the hose.

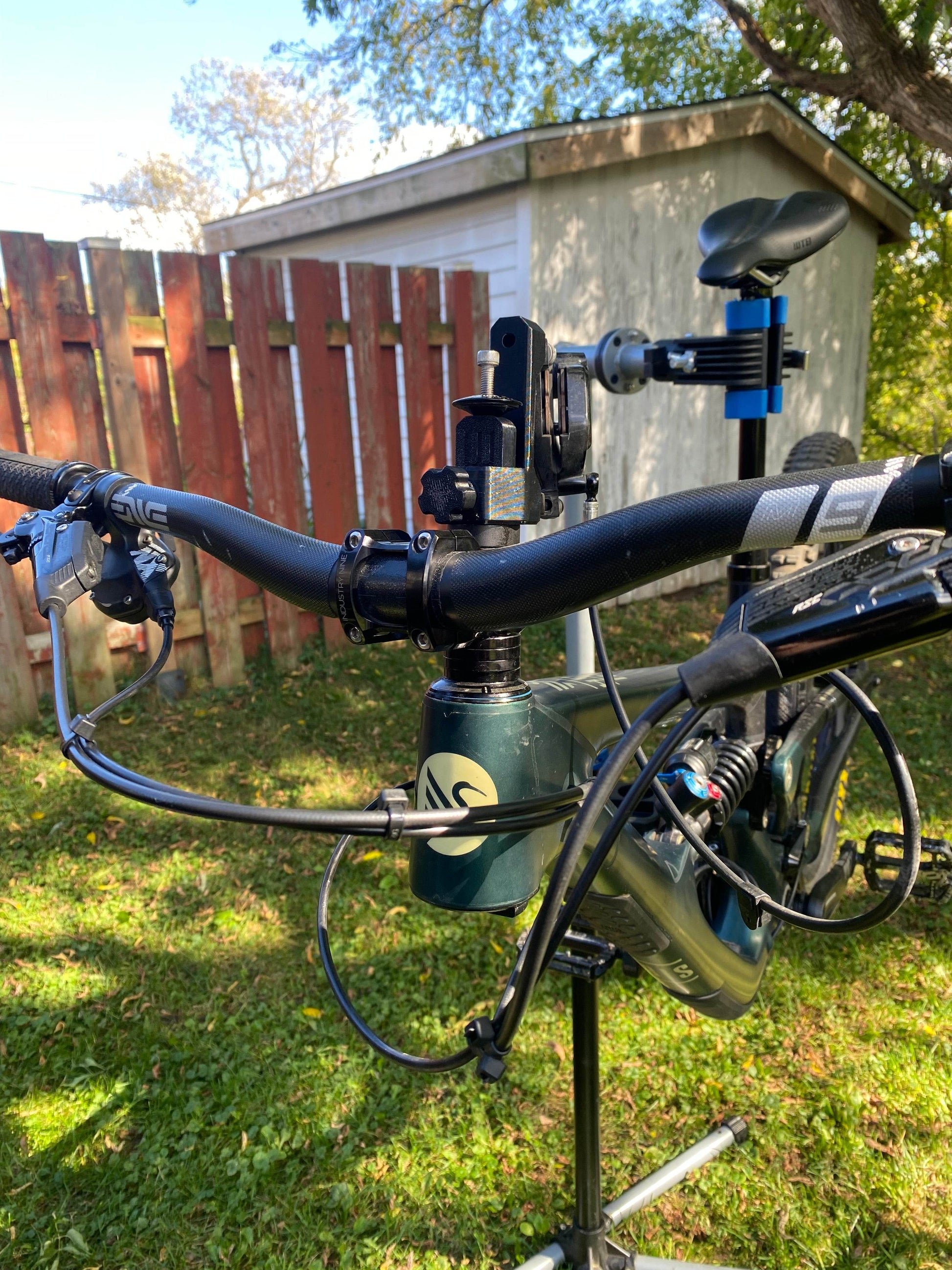

Simply transfer everything onto the dummy tube, clamp the stem, and your cockpit stays together exactly how it came off the bike.
Eco Version vs Reinforced Version — Which one should you pick?
Eco Version (Most riders)
- Uses less material: lighter and more resource-efficient
- Perfect for transport and storage: keeps the headset and cockpit fully organized while the fork is removed
- Strong for normal use: ideal for suspension service, winter storage, travel, or long-term projects
- Best choice for: riders who occasionally remove their fork and simply want a clean, organized setup
Reinforced Version (Heavy Bike / Shop Use)
- Reinforced internal structure: significantly stiffer with more internal material
- Designed for aggressive handling: better suited for shops that regularly move bikes around without a fork installed
- Higher rigidity: resists flex when leverage is applied through the handlebar and stem
- Ideal for heavy bikes: especially useful for e-bikes or frequent day-to-day workshop handling
The Eco Version is fully suitable for normal transport, storage, and maintenance use.
The Reinforced Version is intended for heavier bikes or workshop environments where bikes may be rolled and moved around on the rear wheel while force is applied through the handlebar with the fork removed.
Why this matters
- No headset chaos: bearings, spacers, and stem stay together exactly how they came off the bike
- Faster reassembly: preserve your exact spacer stack and cockpit setup
- Cleaner transport: keeps the front-end compact and organized while the fork is stored separately
- Better long-term storage: prevents small headset parts from getting lost over time
- Cleaner workspace: easier access to the frame while the fork is removed

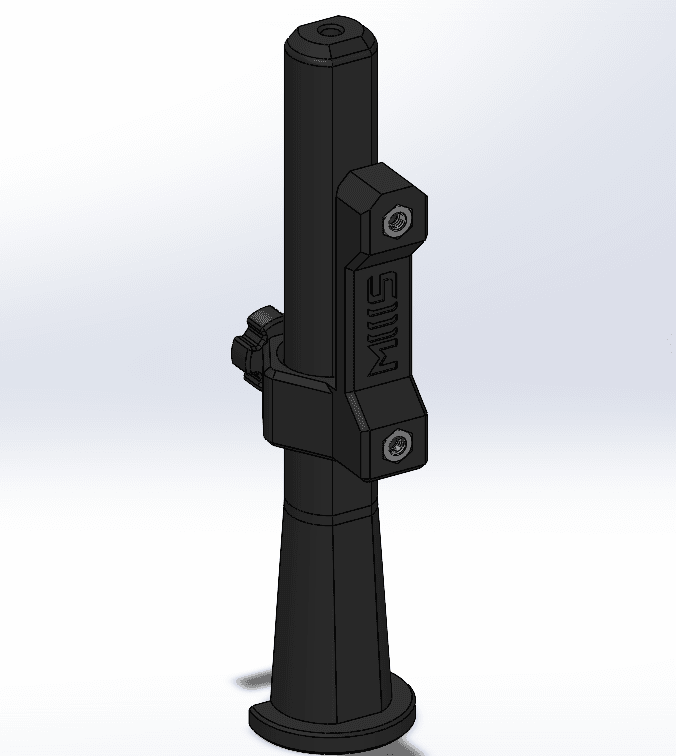

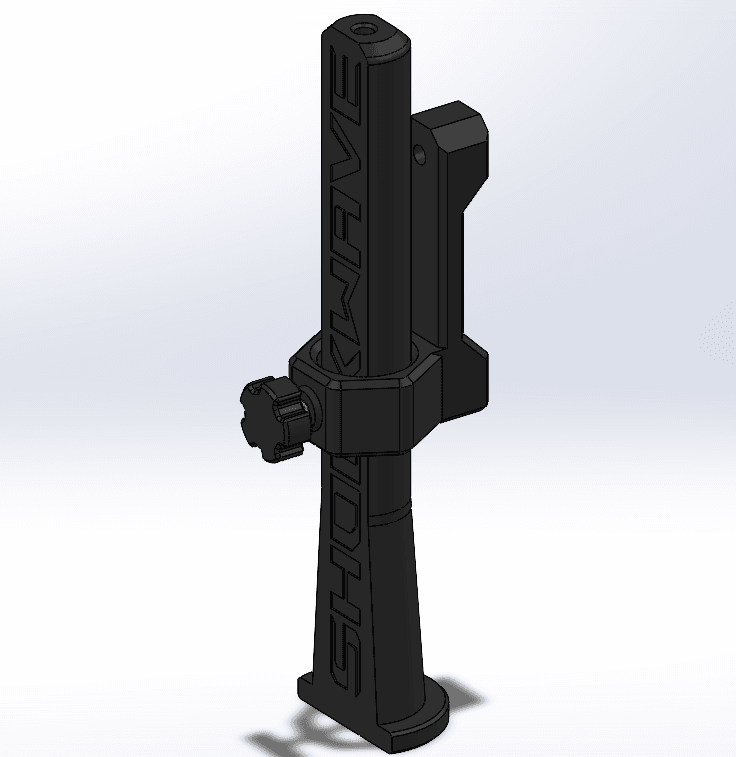

Key Features

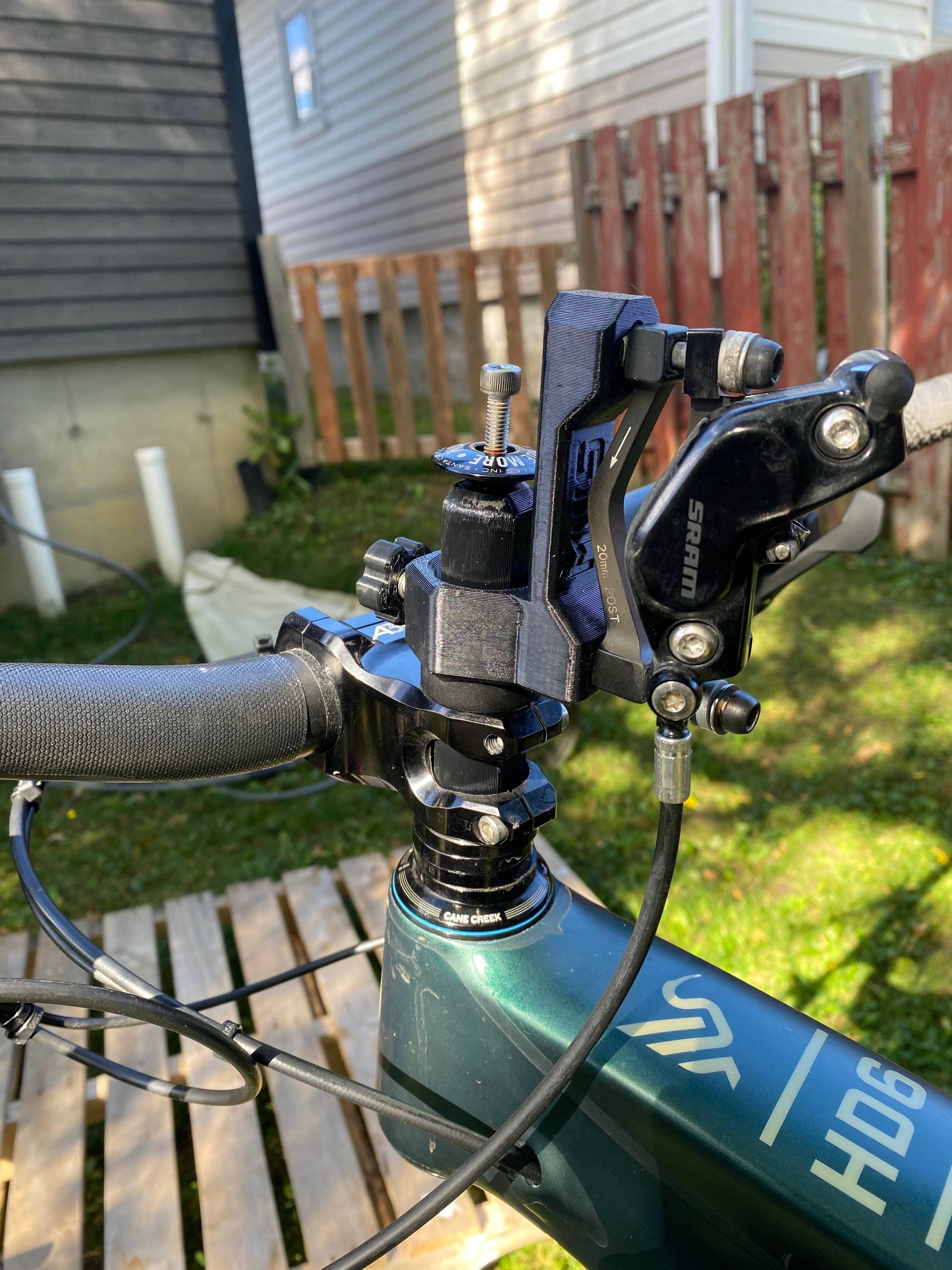

- Full-length support: stabilizes the entire spacer and stem stack

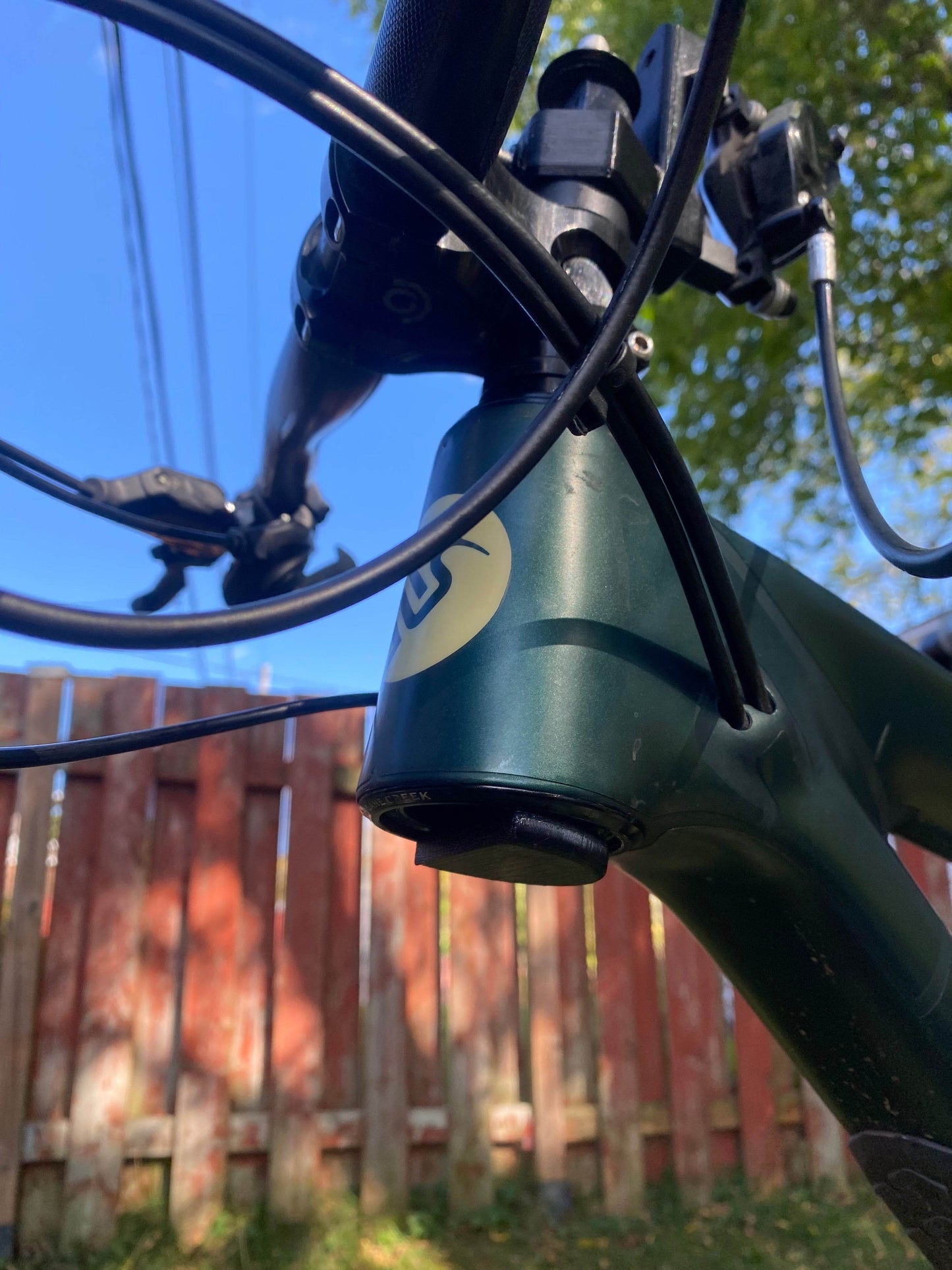

- Easy spacer removal: slightly non-round profile helps prevent binding
- Controlled fit: slides in easily and locks securely once clamped
- Top clamp system: helps prevent rotation and creeping during storage or transport

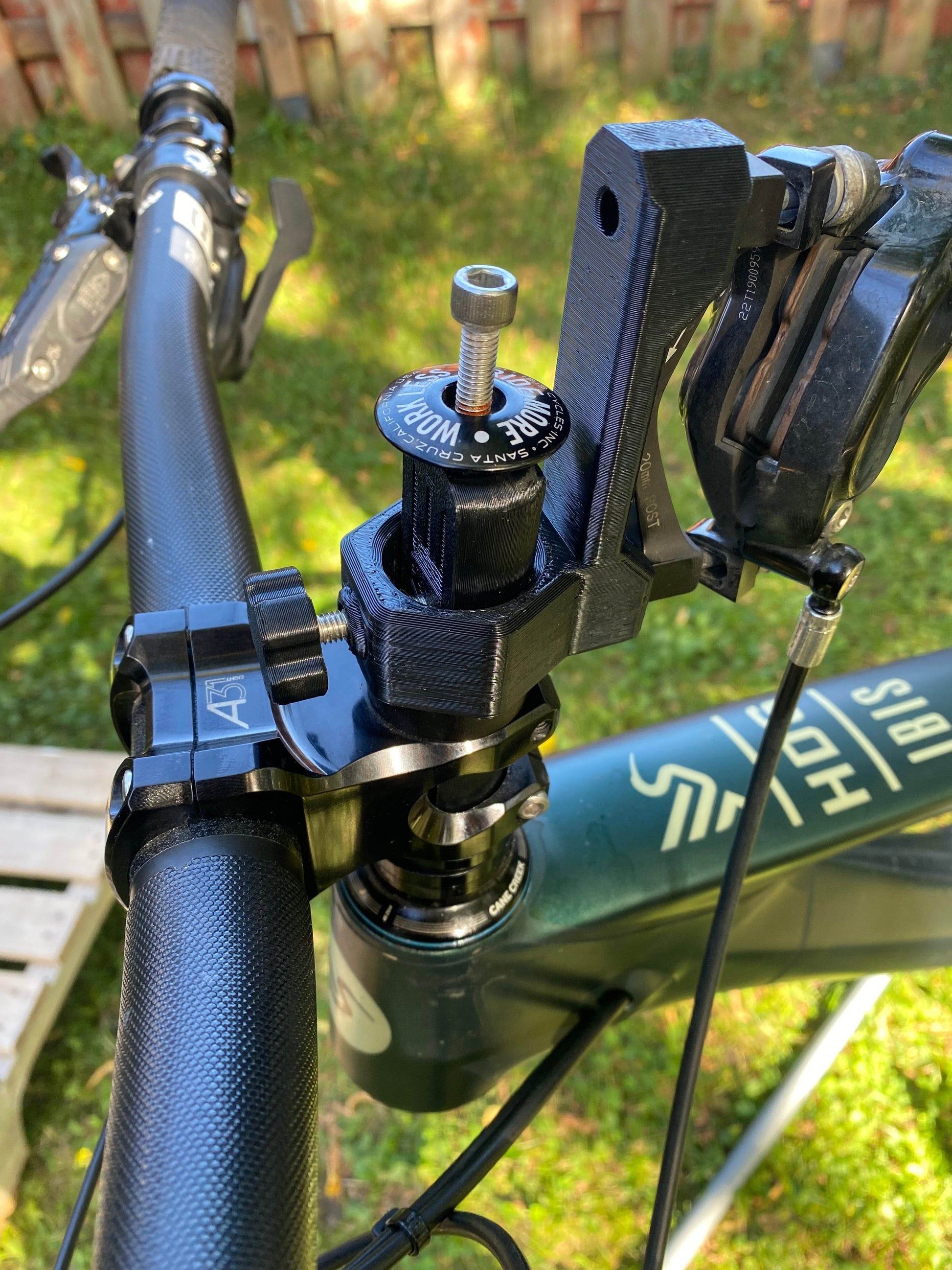

- Caliper mounting: secure your brake caliper directly onto the dummy tube
- Durable polymer construction: designed for repeated workshop use
Compatibility
Fits: standard 1-1/8" (28.6 mm) steerers
Compatible with both straight and tapered forks
Does NOT fit: oversized “Overdrive” steerers (some older Giant bikes)
Length: 220 mm (covers the majority of setups)
Threads & Hardware
Critical threads are metal, not plastic.

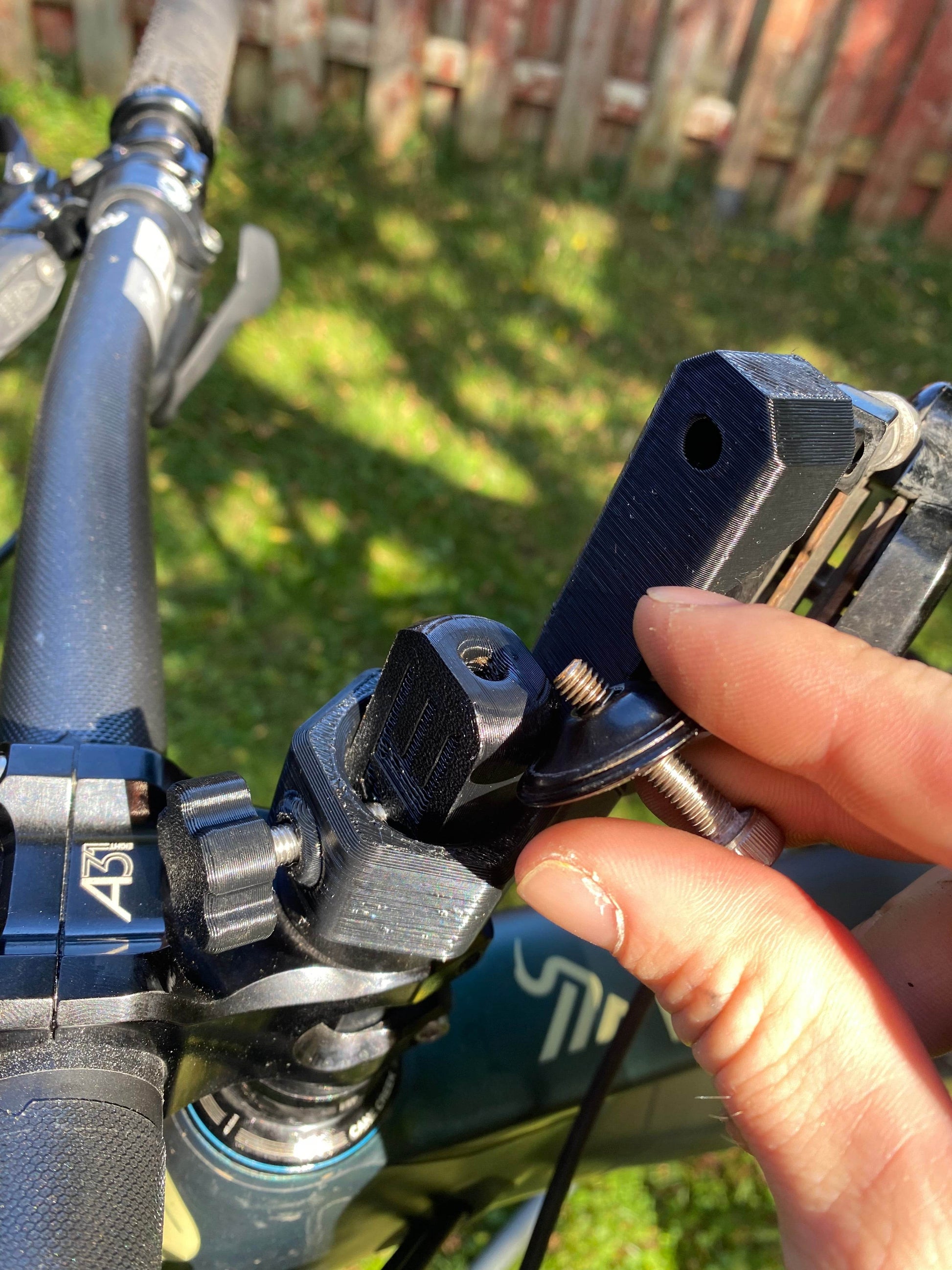

Top cap interface: consistent preload without stripping
Caliper mounts: durable threads designed for repeated use
Transport, Storage & Real-World Use
Perfect for suspension service, bike transport, winter storage, frame work, or long-term projects.
Instead of leaving headset parts loose in a box, everything stays assembled directly on the dummy tube.
You can clean the headset, reinstall each part onto the tube one by one, secure the stem, attach the caliper, and store or transport the bike with the entire front-end organized and protected.
When it is time to reinstall the fork, your complete setup is already preserved exactly how it was before.
Frequently Asked Questions
What is the Universal Steerer Tube Dummy and what does it do?
The Universal Steerer Tube Dummy is a 220 mm polymer tool that slides into a bike's head tube to replace the fork steerer tube when the fork is removed. It holds the headset bearings, spacers, stem, and brake caliper in their original assembled position, eliminating loose parts during suspension service, winter storage, travel, or frame work. Critical threads, at the top cap interface and caliper mounts, are metal, not plastic, for durability across repeated use.
What is the difference between the Eco and Reinforced versions?
The Eco version uses less material, making it lighter and more resource-efficient; it handles transport, storage, and standard maintenance use. The Reinforced version has a stiffer internal structure with more material, designed for workshops that regularly move bikes without a fork installed, and for heavier bikes such as e-bikes where force is applied through the handlebar while only the rear wheel is on the ground. Both versions share the same 220 mm length and 1-1/8" (28.6 mm) steerer compatibility.
Which bike steerer sizes does it fit?
The Universal Steerer Tube Dummy fits standard 1-1/8" (28.6 mm) steerers and is compatible with both straight and tapered forks. It does not fit oversized Overdrive steerers found on some older Giant bikes. At 220 mm in length, it covers the majority of standard headset and spacer stack configurations.
How does it ship to Canada, and what does it cost?
The Universal Steerer Tube Dummy is priced at $49.49 CAD and is in stock, shipping from Canada. Tracked shipping within Canada starts at $8.49 with a maximum rate of $14.99, and orders over $89 CAD qualify for free shipping. Orders ship from a Canadian location, so domestic customers receive their order without customs delays or import fees.
Is it available for international customers outside Canada?
Yes. Shockwave Parts offers free international shipping on orders that exceed a fixed order threshold, with worldwide delivery available. The product is listed in CAD at $49.49 and ships from Canada, so international customers should account for their local customs requirements. The store's shipping page provides the exact international free-shipping threshold.
