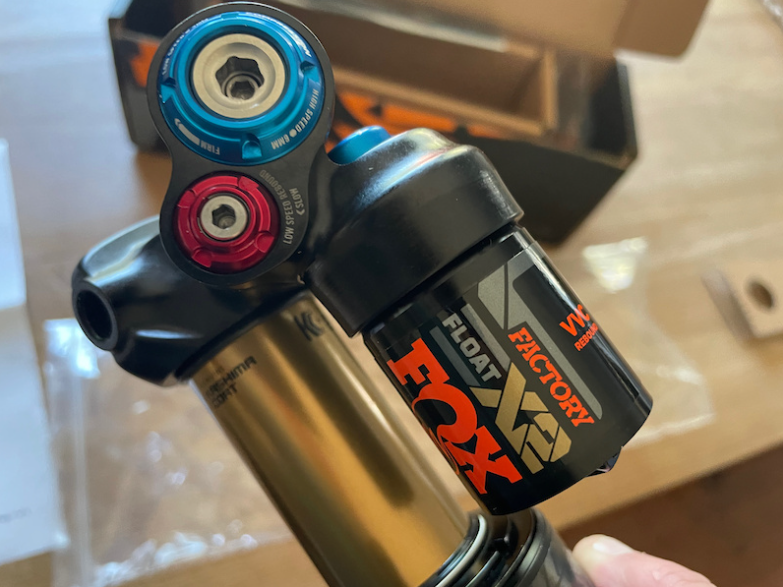

Fox Float X2 2021–2025 Full DIY Rebuild Toolkit

Float X2 2021–2025 Full DIY Rebuild Toolkit

⚠️ You MUST Read the Full Manual Before Buying This Tool kit

This shock is extremely easy to damage. If you skip the manual, you will break the shaft clamps or strip critical internals. The hardest part is really clamping the smal 3/8 inch damper shaft to unscrew the eyelet. Click on the big red button to read that manual and please do it, or just don't buy the kit if you don't plan on reading it.

Always depressurize the IFP AND open the bleed screw slowly. These shocks often stay pressurized even after releasing IFP pressure due to internal aeration of the oil. If you skip this step, the damper can shoot oil.

View the Shaft Clamp Usage Manual

If you don’t feel confident, do not buy this tool kit. I’m not here to make money off mistakes. I built these tools to help people service their shocks safely. If you won’t take the time to read the manual, this isn’t the tool for you. Please, save yourself the trouble.

The small X2 2021-2025 clamp will not fit if you don't fully screw the inner air sleeve back onto the negative sealhead. Click here if you don't understand the words I just said

NEVER unscrew the VVC Rebound small nuts after unscrewing the mid valve from the main 3/8 inch damper shaft. You can unscrew the mid valve from the main shaft if you want or you can just slide the sealhead from the eyelet side because there is no U-cup seal.

Your all-in-one service kit for Fox Float X2 shocks (2021–2025). Covers both 50h/200h dynamic seal service and optional static seal access if you need a full teardown. Everything works at home, no pro-shop required.

Buy the MTB Hydraulics seal kit if you don't plan to open the piggyback, damper body, or adjusters. It's cheaper than the Fox kit and just as good, even better in our experience. If you're replacing static seals, get the full Fox kit instead.
Tip: If your lockout lever doesn’t work, it’s usually just trapped air or old oil. A regular bleed often brings it back to life, no need to open the adjuster or damper.

Do not forget to get yourself a schrader valve core tool!

Essential Tools (You can't release the pressure in the damper without the valve core tool)

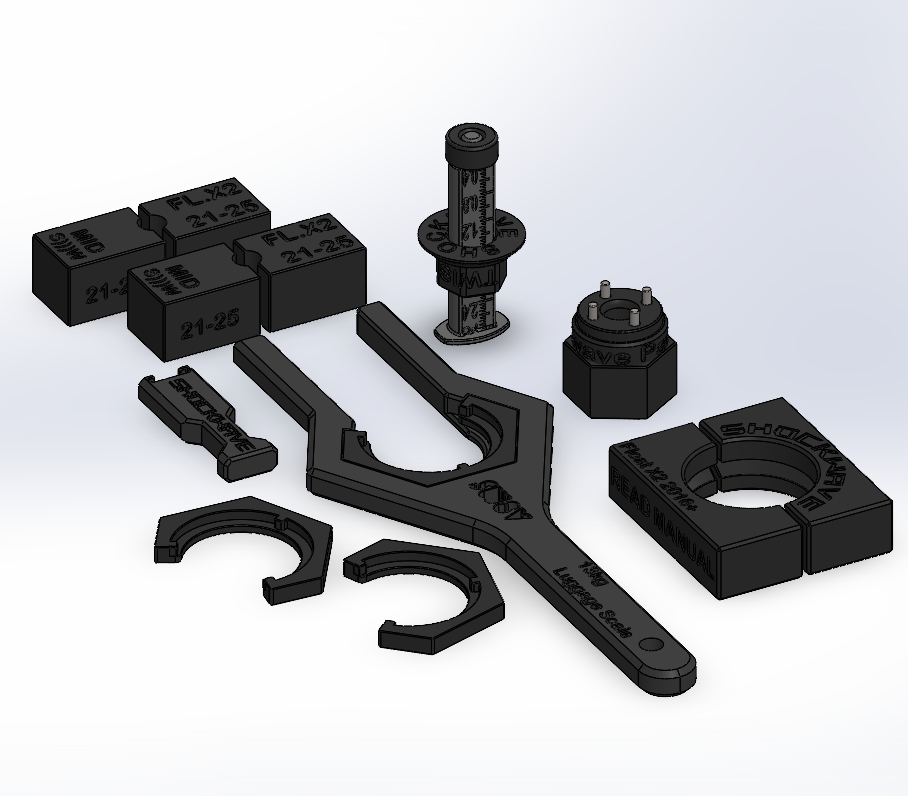

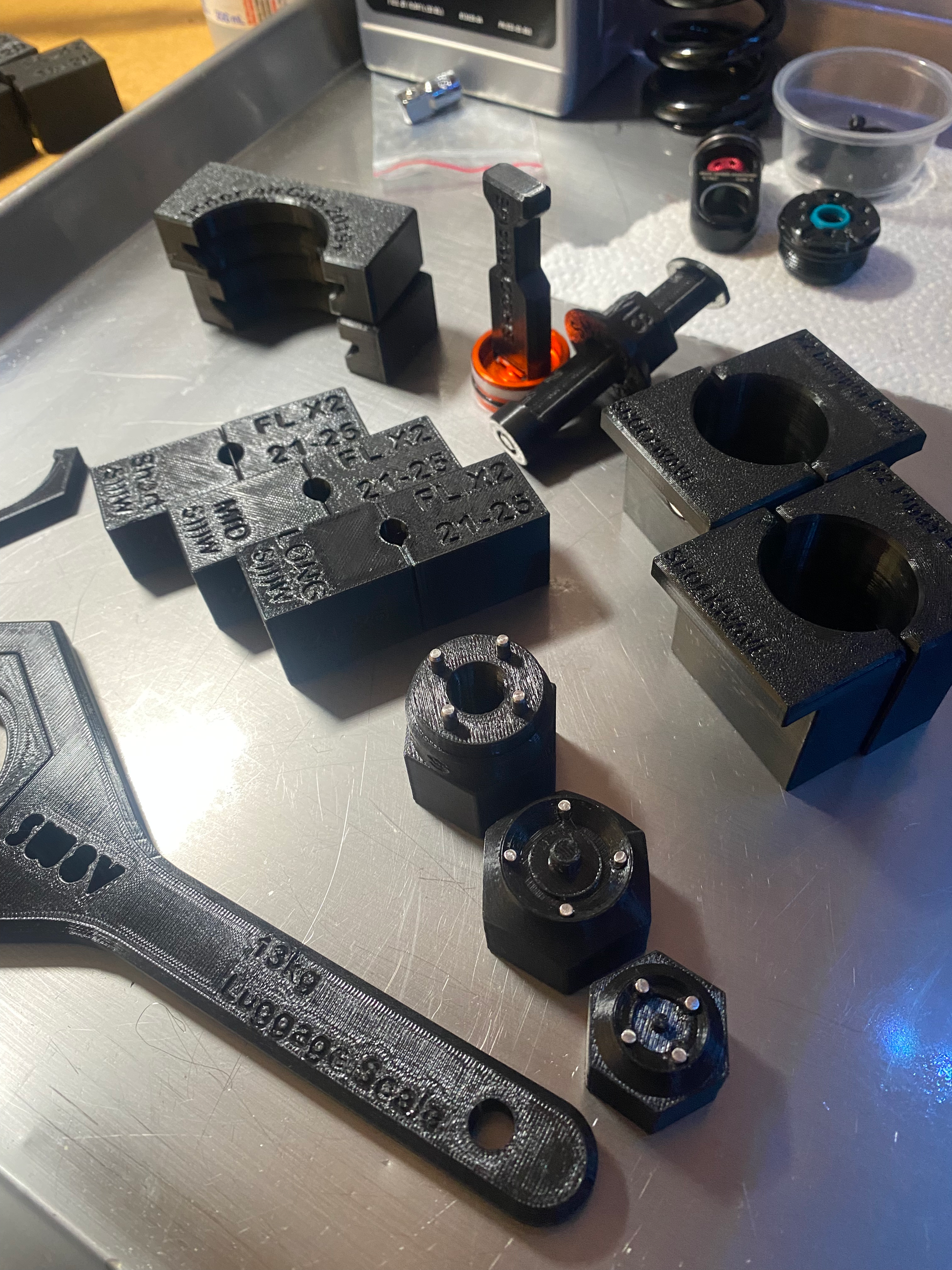

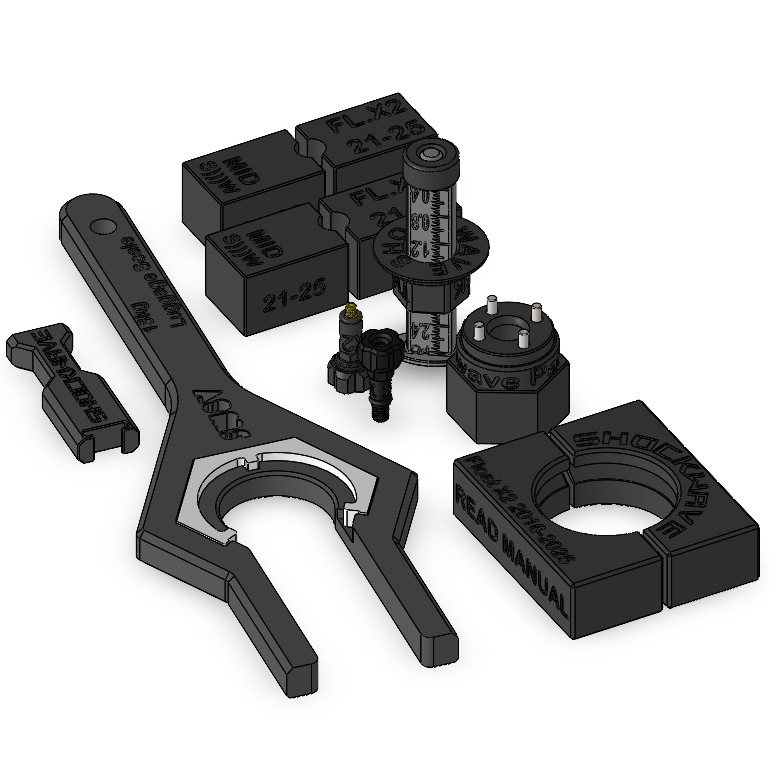

What’s Included (Optional in blue)

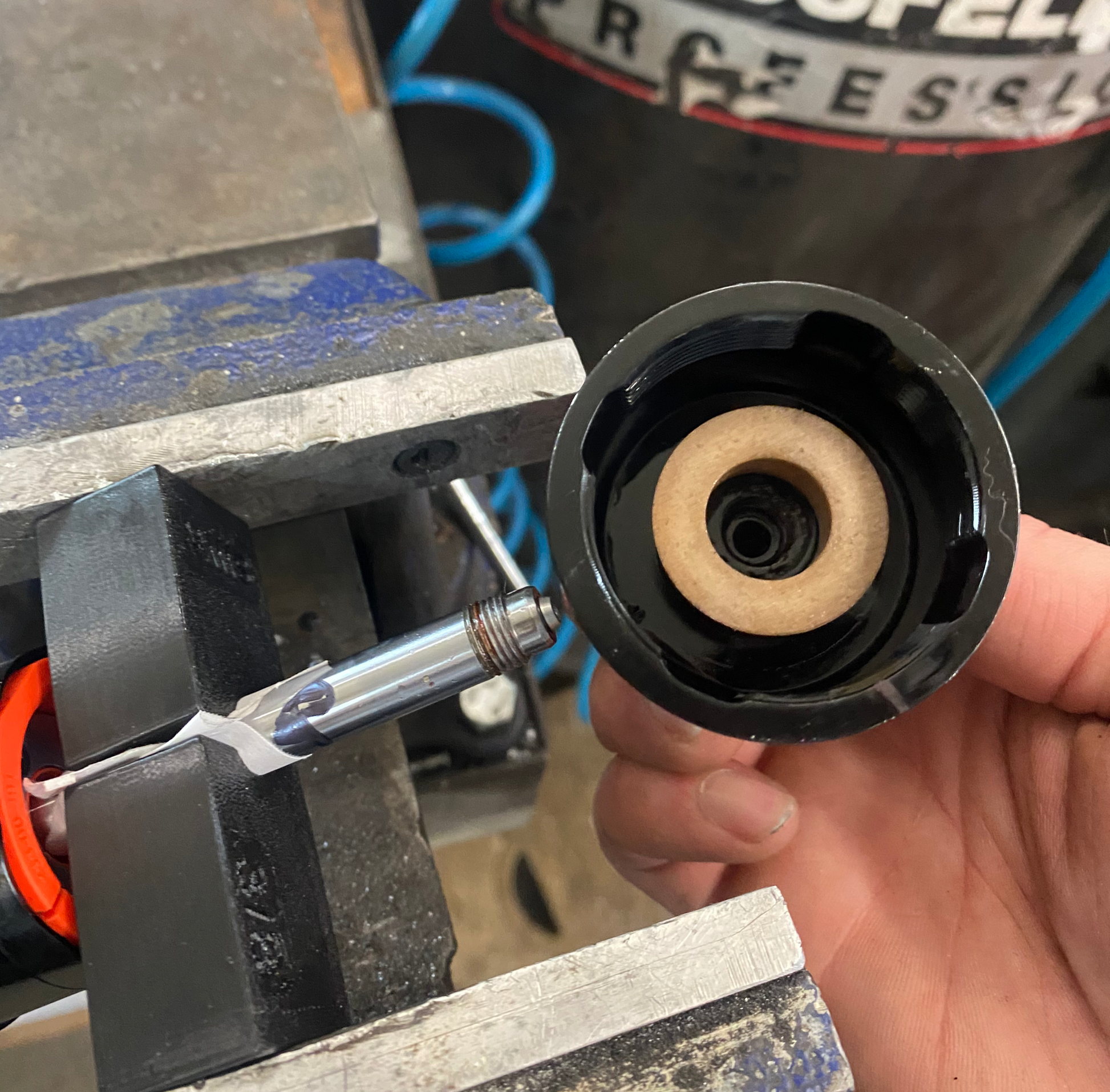

Float X2 2021–2025 Small Shaft Clamp (3/8") included TWO times in the kit for the stroke you selected.

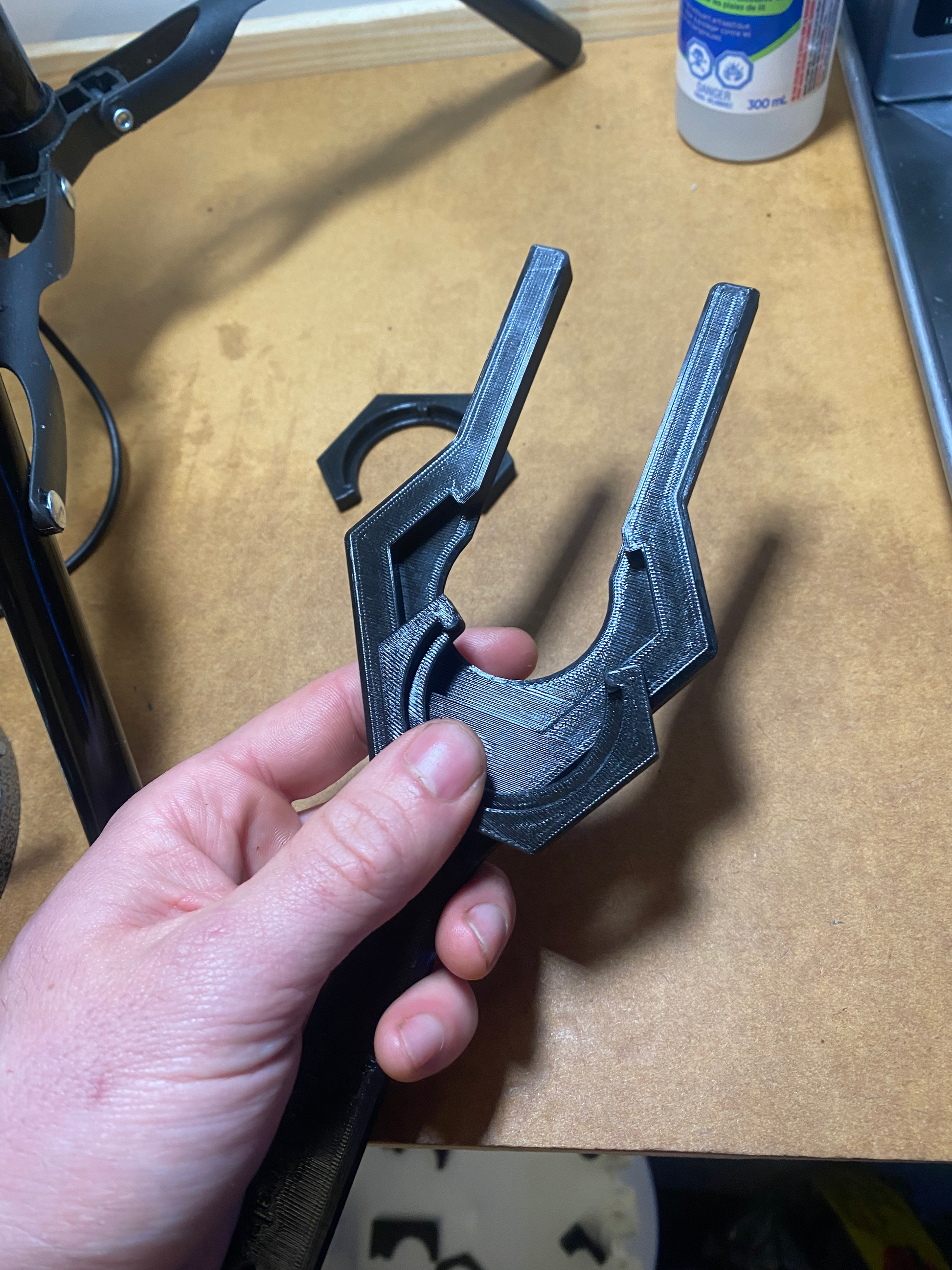

Float X2 Air Can Wrench (All Years)

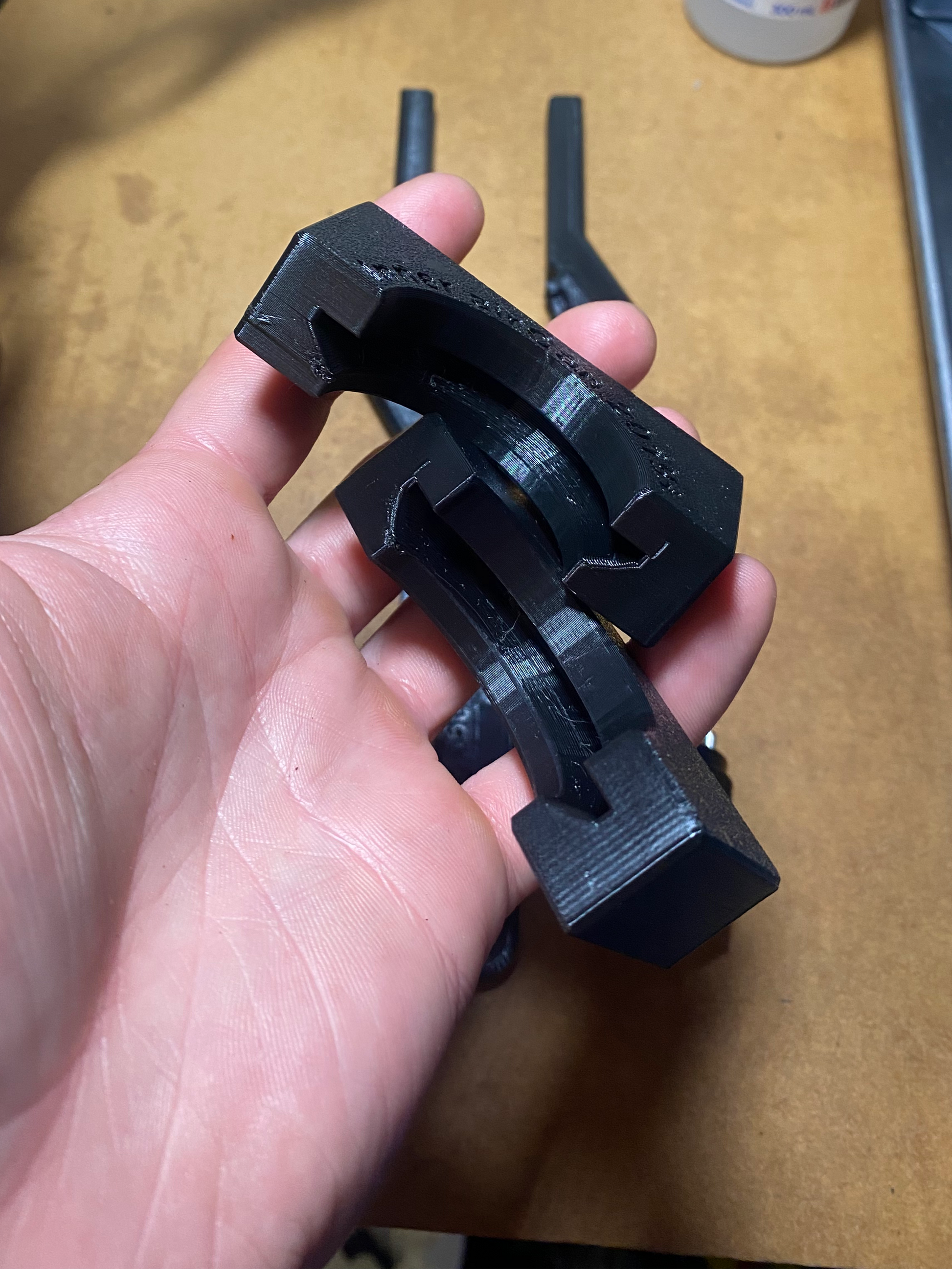

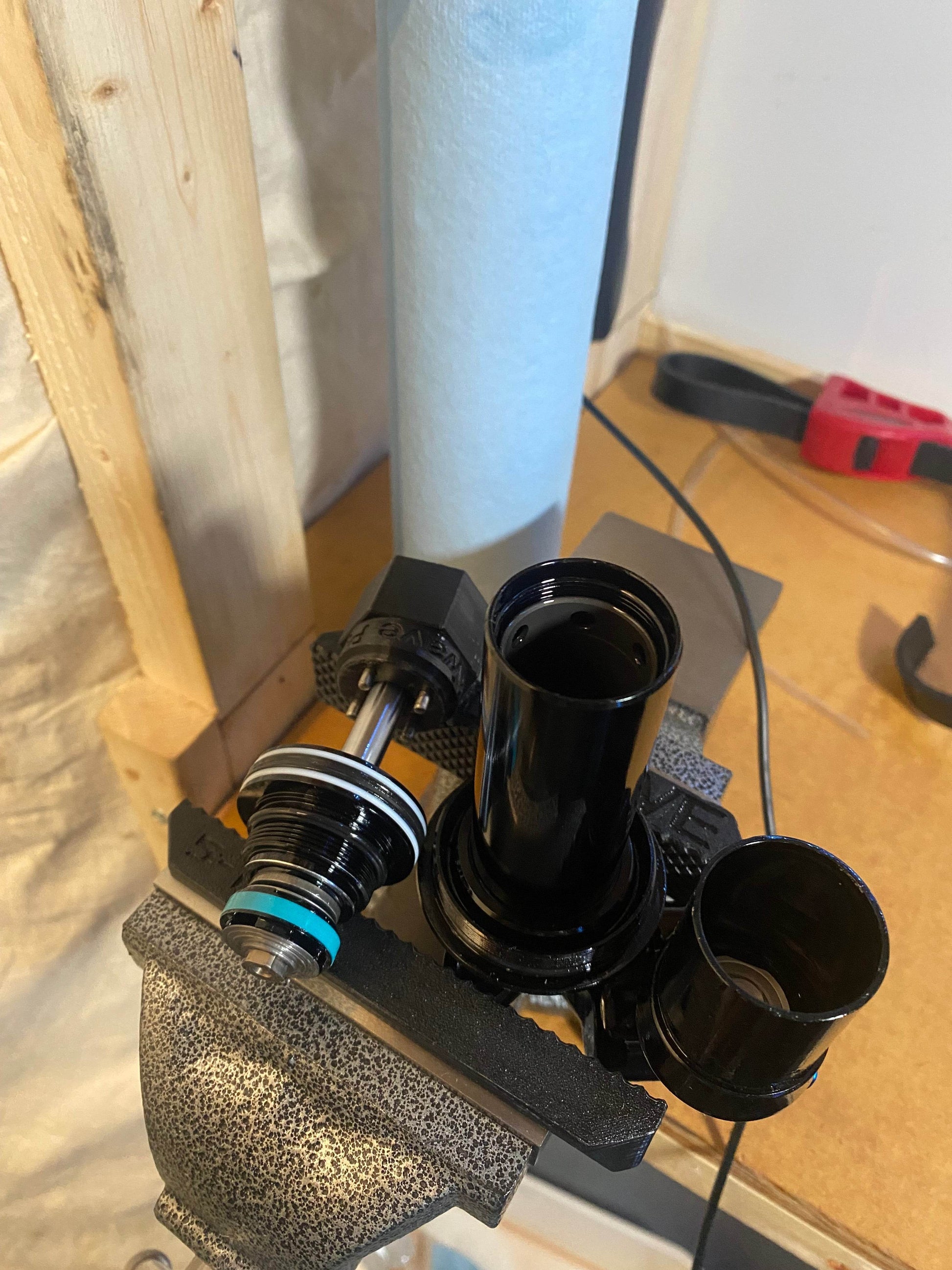

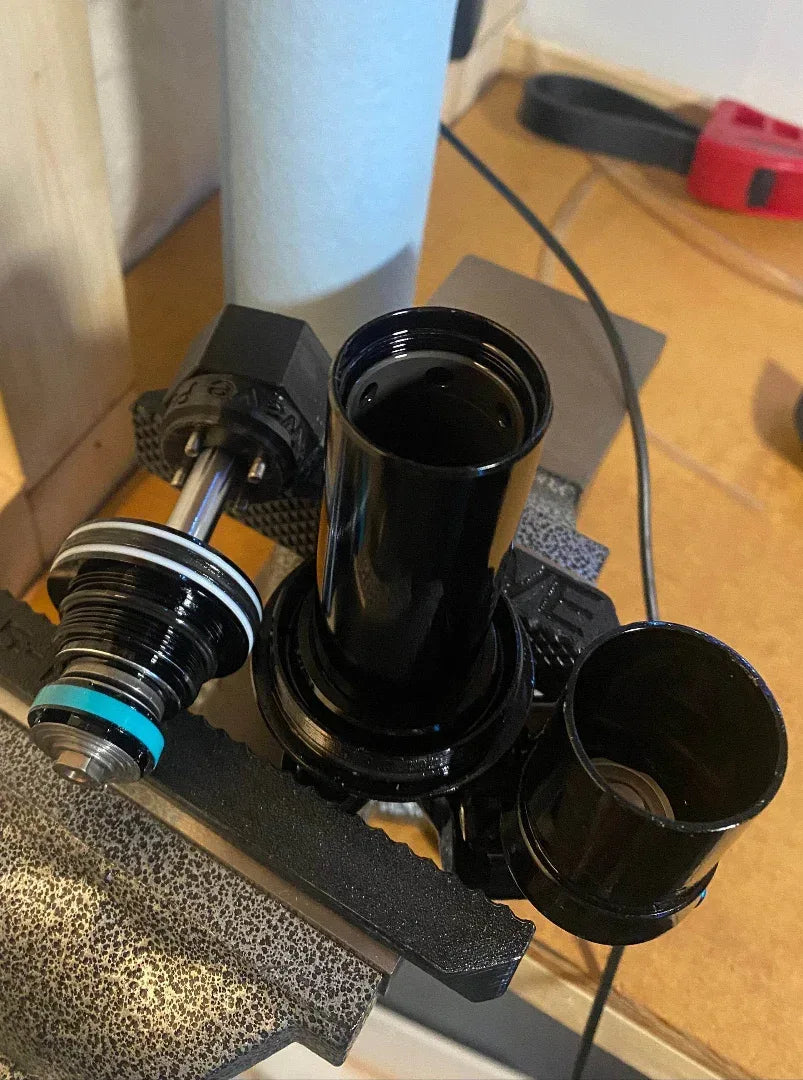

Float X2 Inner Air Can Clamp (All Years)

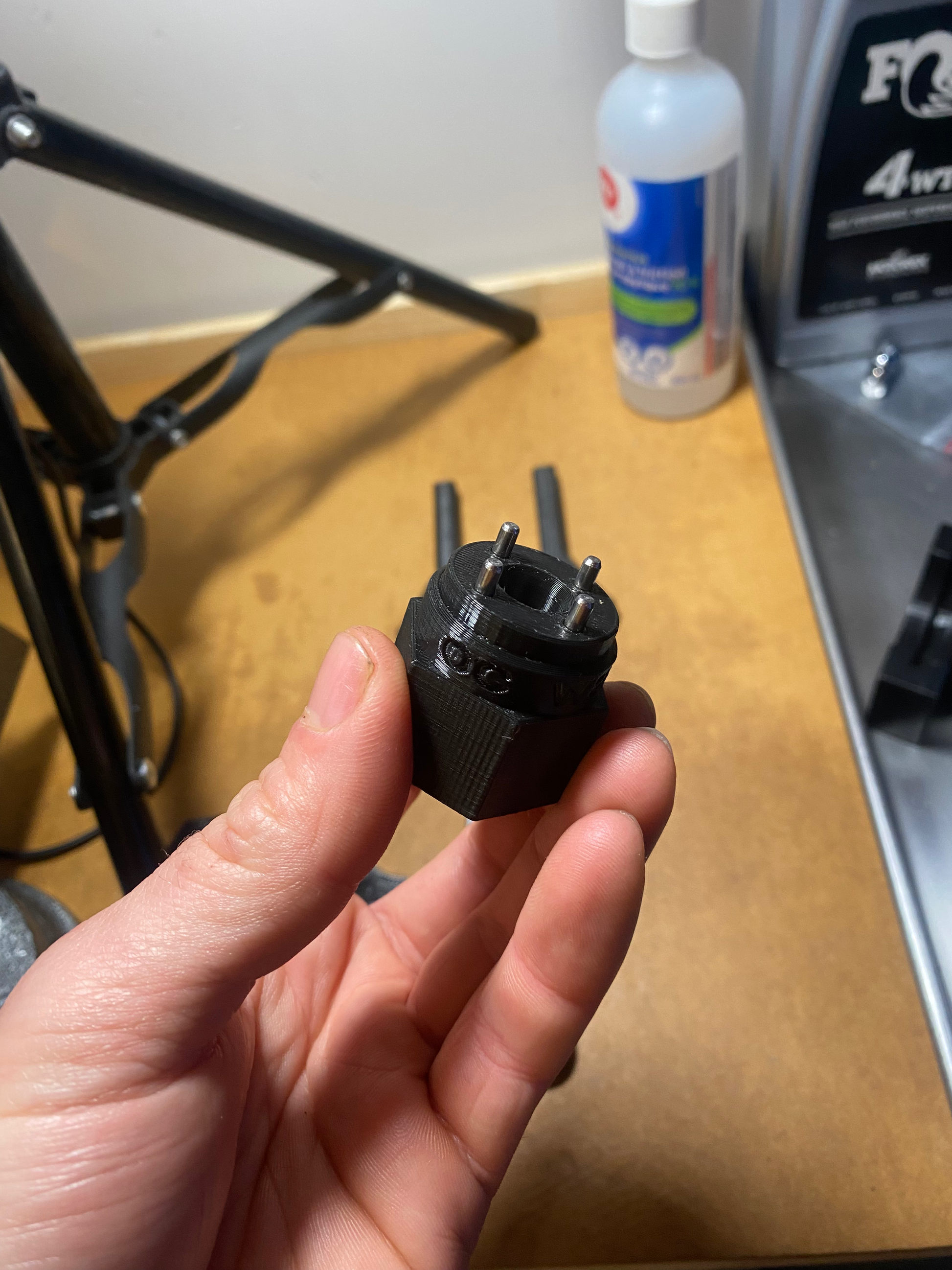

4-Pin Sealhead Socket (2021–2025)

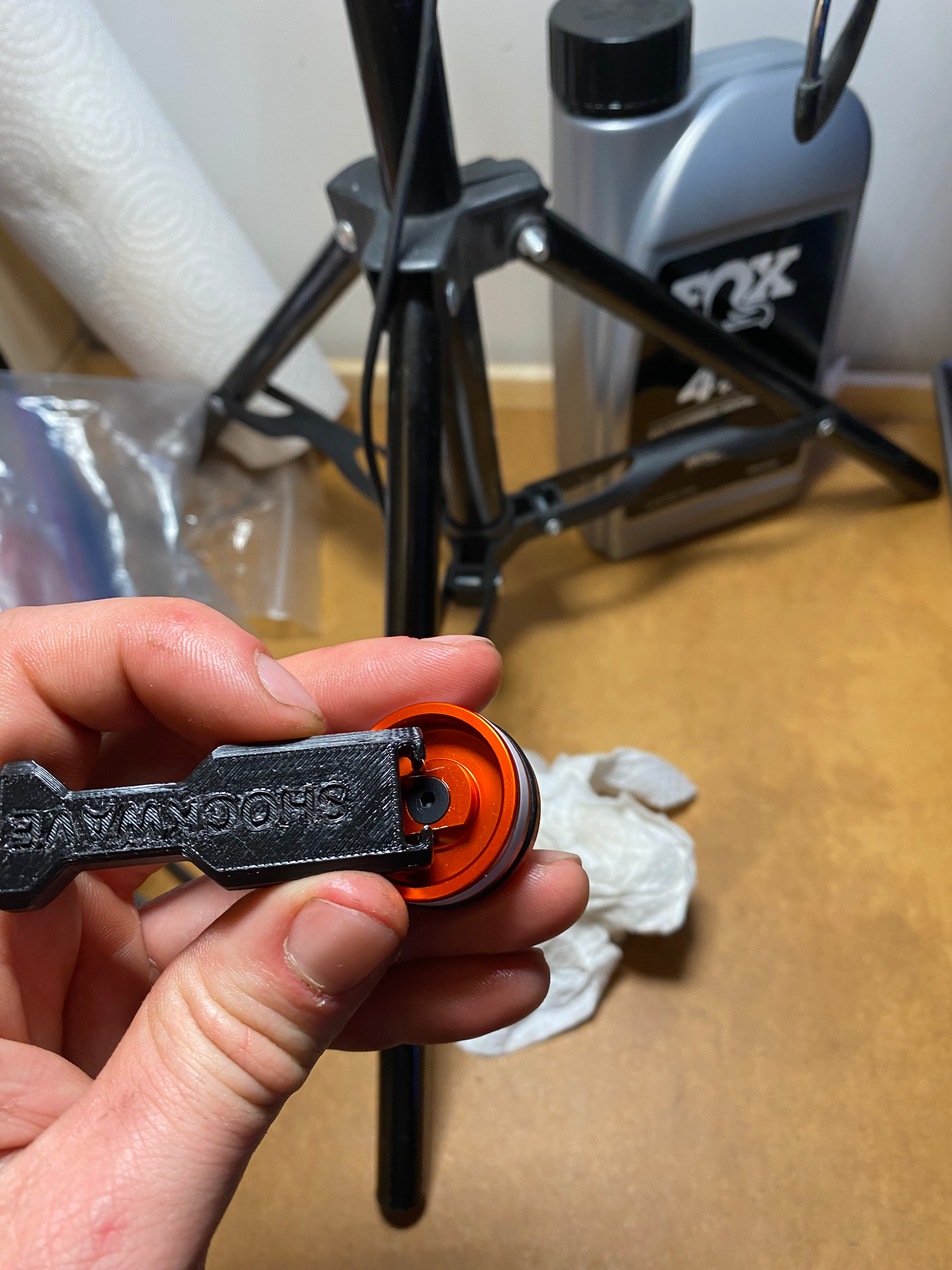

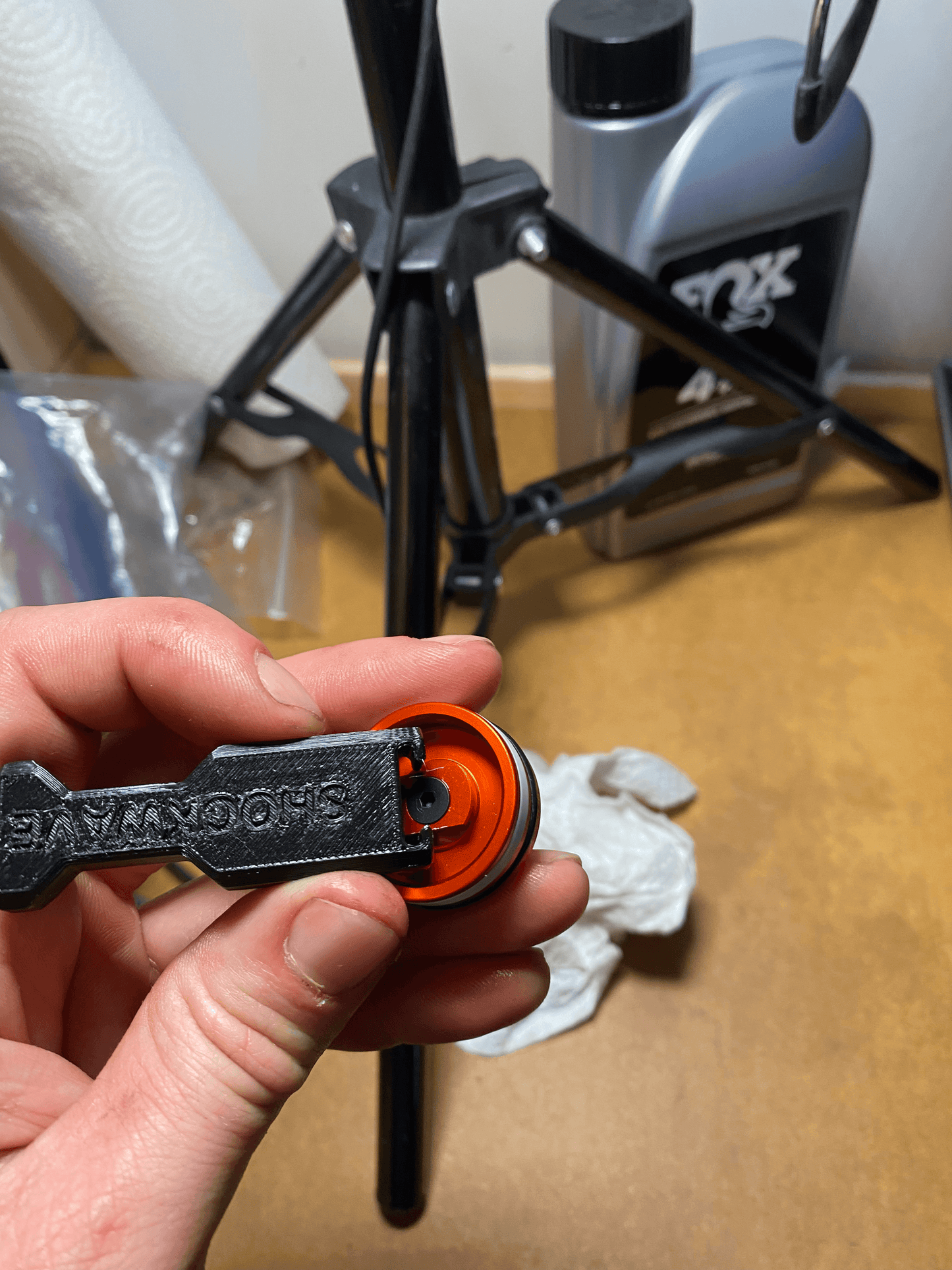

IFP Puller Tool
IFP Depth Tool (Graduated)

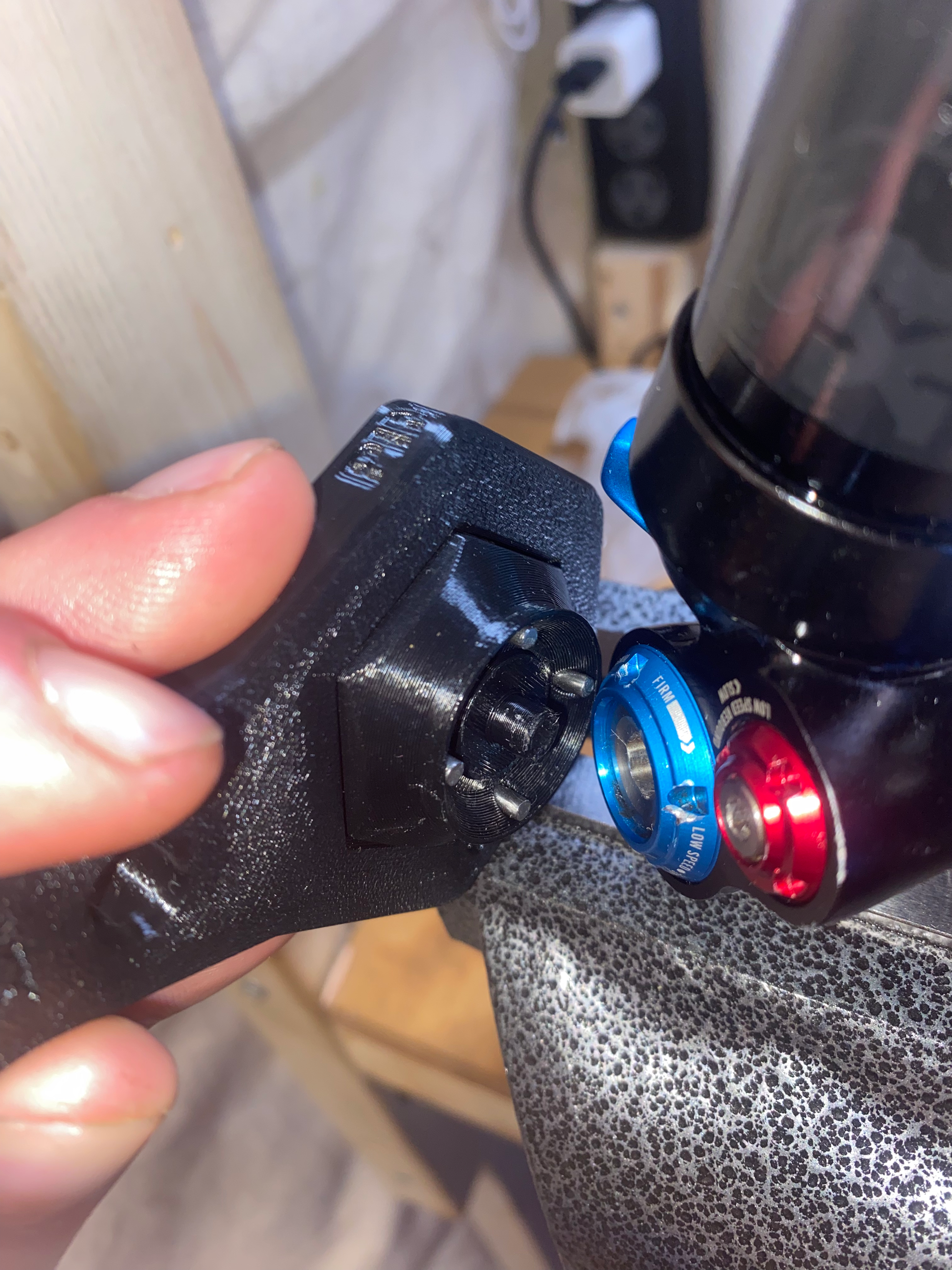

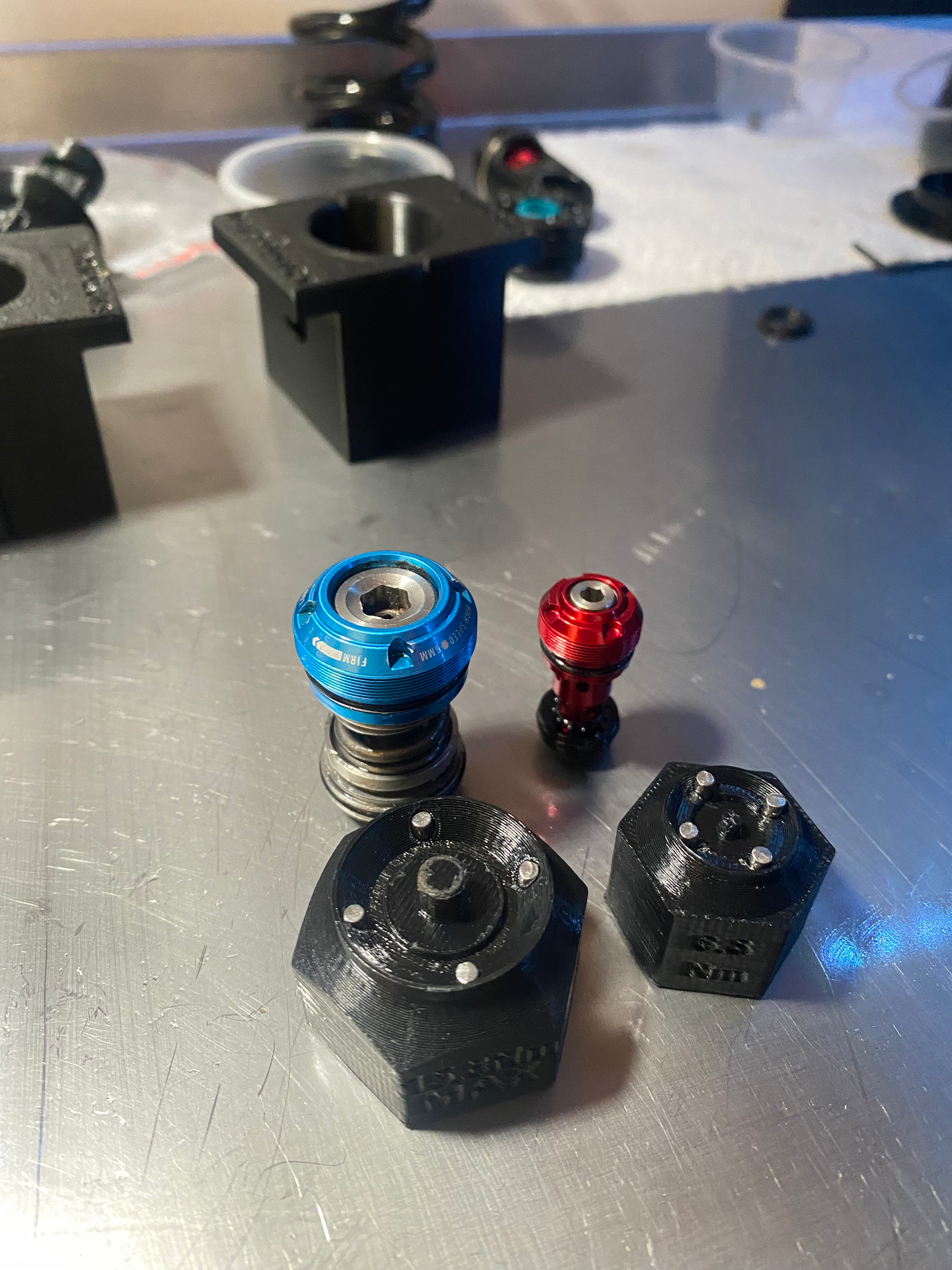

Compression Adjuster Socket : optional, only open if leaking
Rebound Adjuster Socket : optional, only open if leaking
Piggyback Clamp : optional, only if leaking
Damper Body Clamp : optional, only if leaking or cracked
Soft Vise Jaws : strongly recommended
Trunnion Torque Tool : only for M10 trunnion mounts

Must-Read Manuals

Small X2 Shaft Clamp Manual
Float X2 Tools PDF Manual : shows clamp techniques and full teardown (mostly 2016–2020 but still useful)

Bleeding Tips

This shock is hard to bleed by hand. Use the glove method (glove stretched over damper tube&piggy back, and press to force oil through the valving for 15-20 minutes) and let it sit overnight. Small hissing at first compression is normal and clears after a few rides. We’re working on a syringe-compatible fitting for easier bleeds soon, we found a cheap solution! We will test it soon.

Alternative “No-Eyelet” Setup

Not available for this generation : no “open-from-under” option yet. We're testing pin-extension sockets for future release.

Please Don’t Buy All Clamp Heights

If you're about to get every stroke length, just buy the real Fox clamp and select 3/8inch. These kits are for home use, not shop environments. If you ever need a second size later, grab it here.

Anyway because of the bigger 3/8 shaft, the narrow clamp will probably work great on all strokes.

It takes us 16 extra hours with the full DIY tool kit to make a full triple-size run, don’t make us and do your homework. If you need this, you probably shouldn't be on this website and buy the real fox tools. This is going to be even more expensive than the real metal clamp.
