Which FOX Float X2 shocks is this air can wrench compatible with?

The Float X2 Air Can Wrench is compatible with all FOX Float X2 rear shocks from 2016 onward, covering the 2016–2018, 2019–2020, 2021–2025, and 2026+ model years. No Float X2 air can can be opened without this tool, making it required for every service interval — 50h, 200h, or full teardown.

How does the Float X2 Air Can Wrench compare to the official FOX service tool?

The Float X2 Air Can Wrench performs the same function as the official FOX air can tool — engaging the 3-tooth locking ring on the negative sealhead — at roughly 25% of the ~$200 official tool's price. The aluminum version uses a bonded insert with internal geometry that prevents the teeth from contacting the damper body, a safety feature not always present in generic socket alternatives.

What makes the aluminum version of this wrench safer than earlier versions?

The aluminum insert is permanently bonded into the polymer body with a tight tolerance fit, eliminating any floating or shifting during use. Internal geometry physically prevents the aluminum teeth from touching the damper body during insertion, protecting the shock from accidental damage that side-loading or a loose insert could cause.

Who should use the Float X2 Air Can Wrench?

This tool is designed for serious home mechanics who service their own FOX Float X2 rear shock. It requires the user to fully depressurize the shock before use and apply force straight — without prying or twisting sideways. Riders who follow the FOX service manual and want a cost-effective DIY alternative to the professional tool are the intended audience.

What other tools are needed to fully service a FOX Float X2?

The Float X2 Air Can Wrench handles air can removal, but a complete Float X2 service also requires tools such as the Float X2 Inner Air Can Clamp and a sealhead socket for the relevant model year. Shockwave Parts offers full DIY rebuild toolkits for the 2016–2018 and 2019–2020 Float X2 that bundle the necessary tools together.

1 4

Shockwave Parts

Float X2 Air Can Wrench (2016+)

Name: Float X2 Air Can Wrench (2016+)
Brand: Shockwave Parts
Price: 38 USD
Availability: InStock

$39.49 CAD

~~$45.49 CAD~~ $39.49 CAD

Sale Sold out sorry :(

Shipping calculated at checkout.

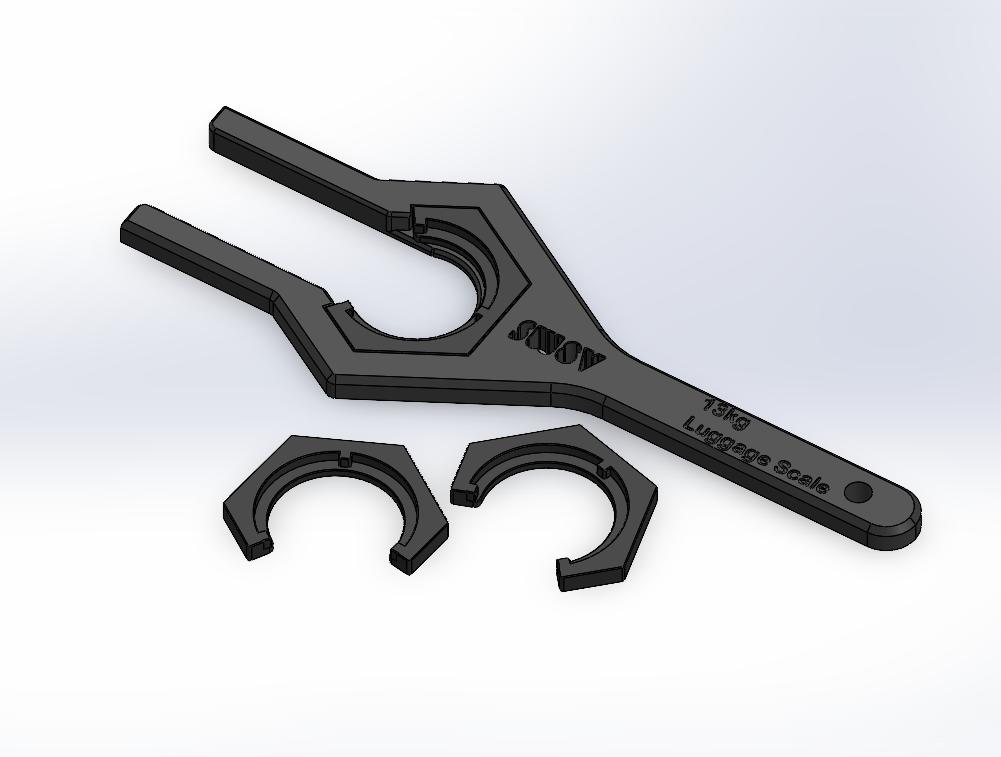

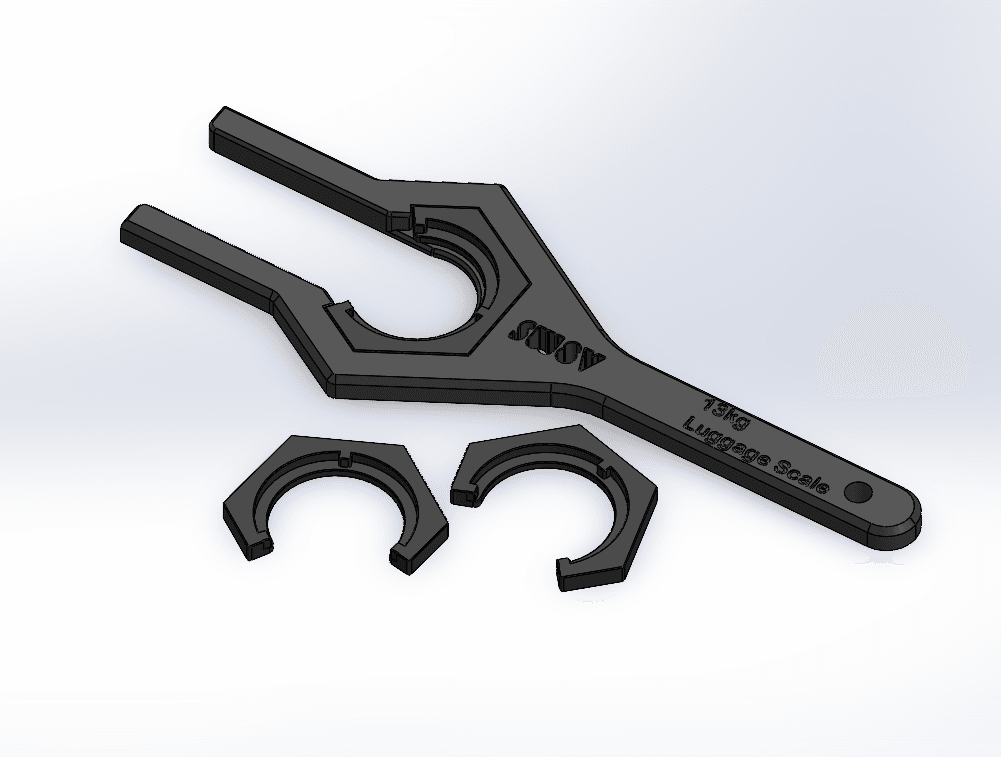

Float X2 Air Can Wrench (All Years – Aluminum Version)

The tool that allows you to open the air can on any FOX Float X2 (2016+). This aluminum version is now the only option: safer, stronger, and designed to be a true DIY alternative to the ~$200 professional tool.

What it does

Engages the 3-tooth locking ring on the Float X2 negative sealhead.
Allows safe removal and installation of the air can.
Required for any Float X2 service (50h, 200h, or full teardown).

No Float X2 can be opened without this tool.

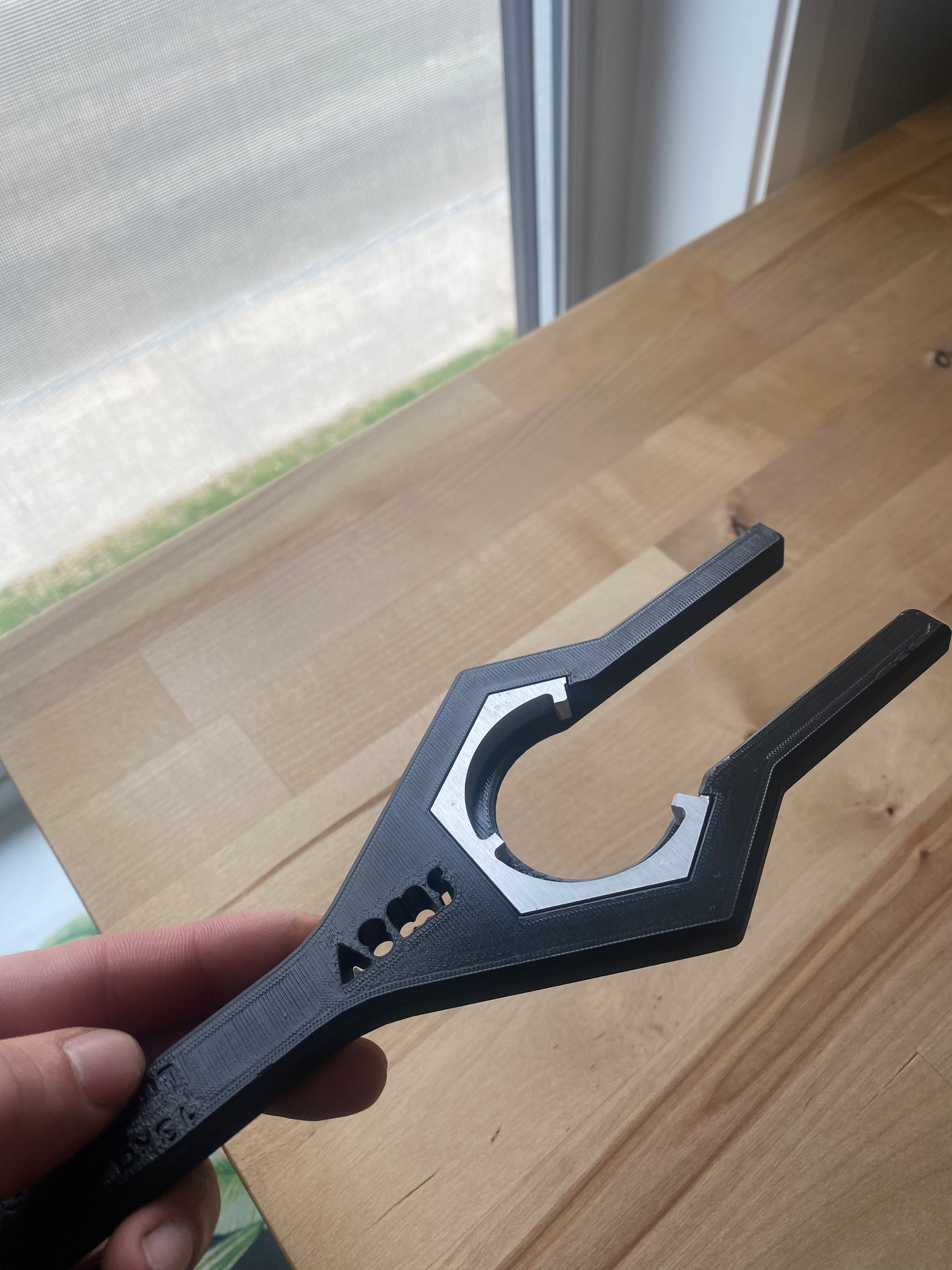

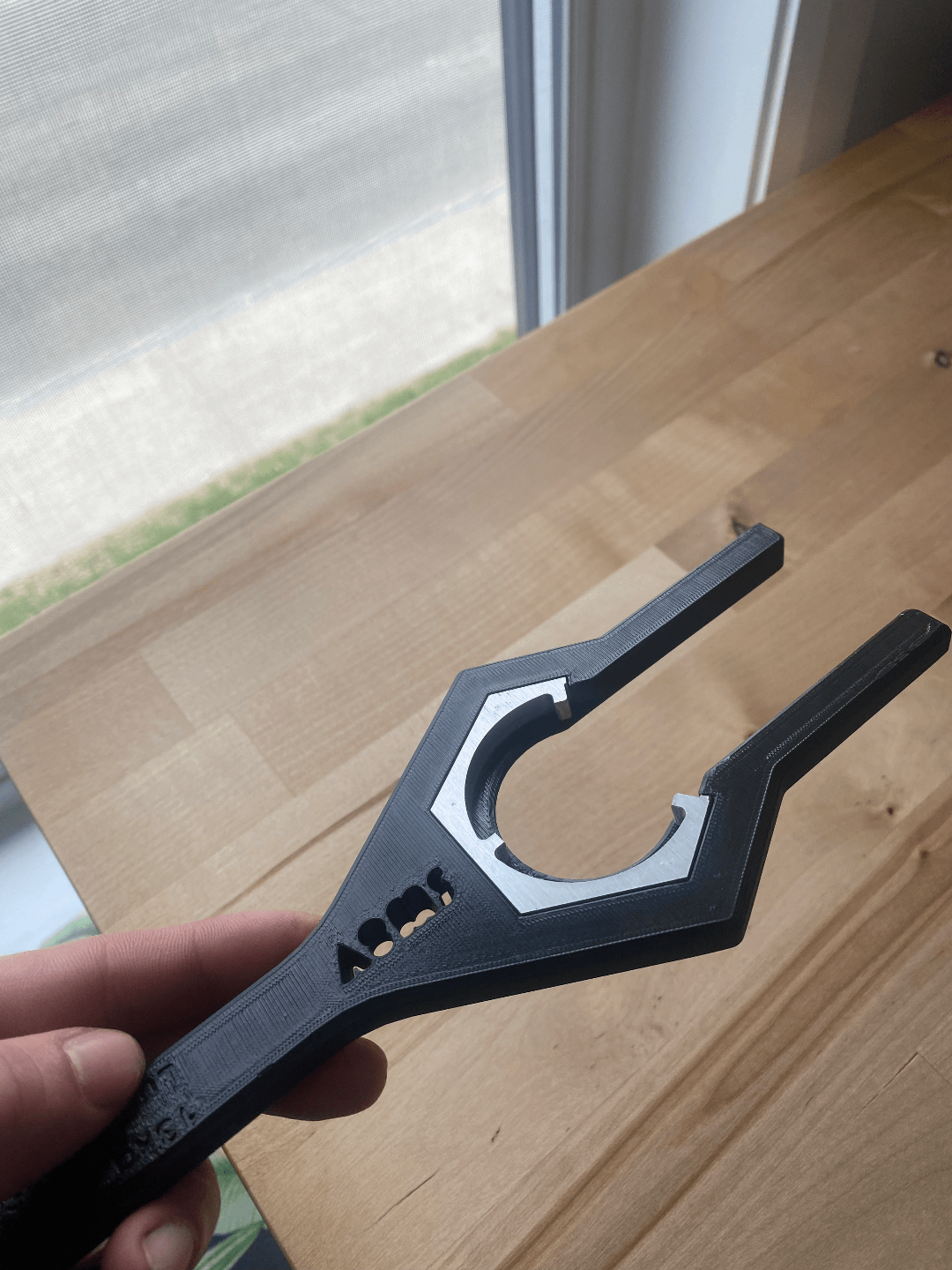

Aluminum version (why it’s safe)

This wrench uses a bonded aluminum insert permanently integrated into the polymer body. Unlike early metal sockets, the insert is physically isolated from the damper body.

Built-in protection: internal geometry prevents the aluminum teeth from ever touching the damper body during insertion.
No floating insert: the aluminum piece is bonded with a very tight tolerance fit.
Cost-efficient pro alternative: does the exact same job as the official ~$200 tool at roughly 25% of the price.

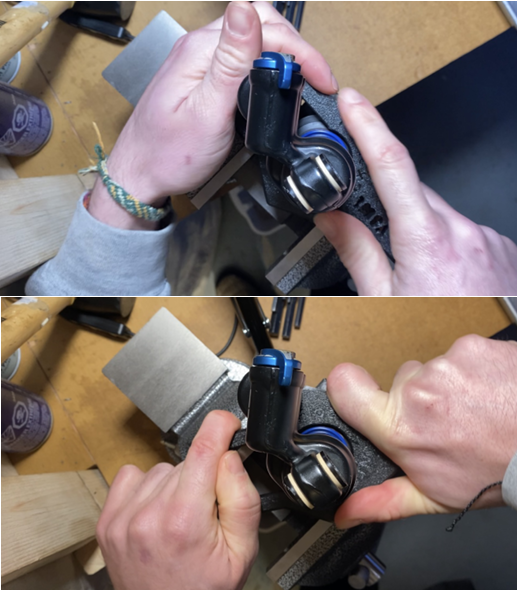

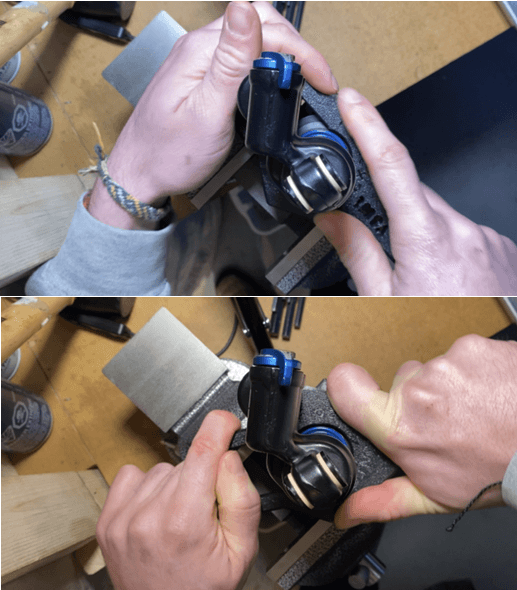

How to use

Point the open-handle side toward the piggyback.
Hold the wrench shut while applying torque.
Apply force straight, do not pry or twist sideways.

Compatibility

FOX Float X2 (2016–2018)
FOX Float X2 (2019–2020)
FOX Float X2 (2021–2025)
FOX Float X2 (2026+)

⚠️ Disclaimer

This tool is intended for serious home mechanics. Improper use, side-loading, or forcing stuck parts can damage the shock. Always depressurize fully and follow the manuals. By purchasing, you agree to our Terms of Service.
