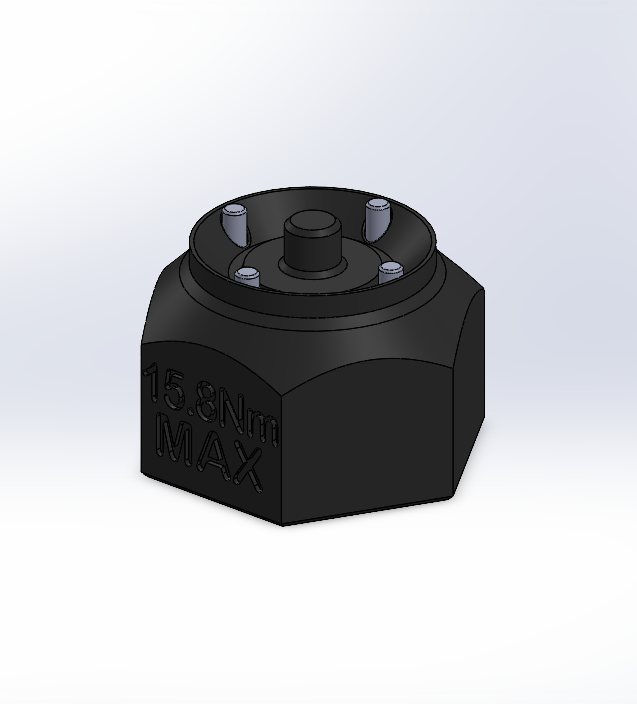

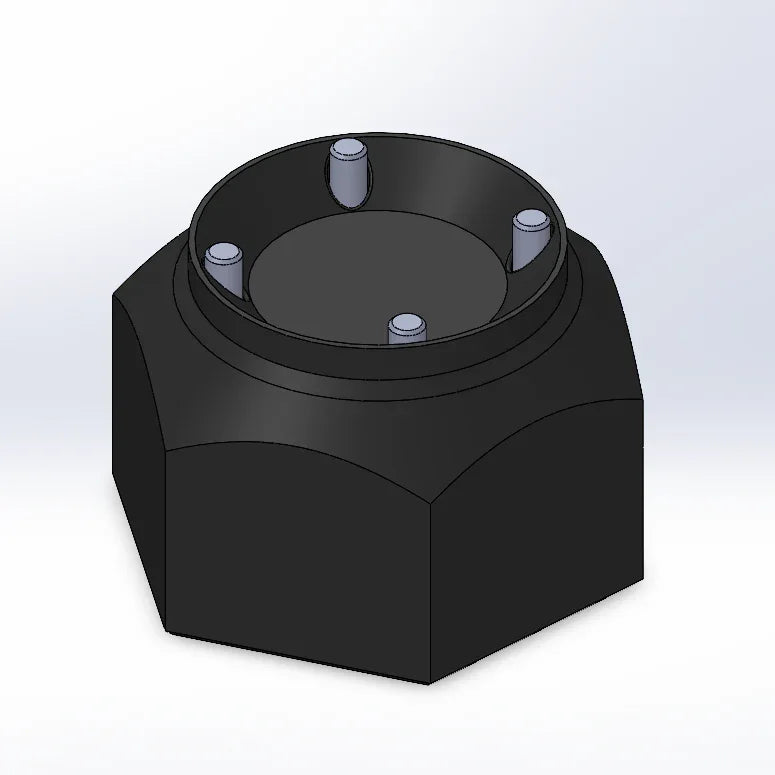

4-Pin Compression Adjuster socket – Float X2 / DHX2 (2021–2025)

This 4-pin wrench is designed specifically for the compression adjuster on 2021–2025 Fox Float X2 and DHX2 shocks. It gives you a precise fit with zero play so you can remove or reinstall the adjuster without damaging it.

 What It Does

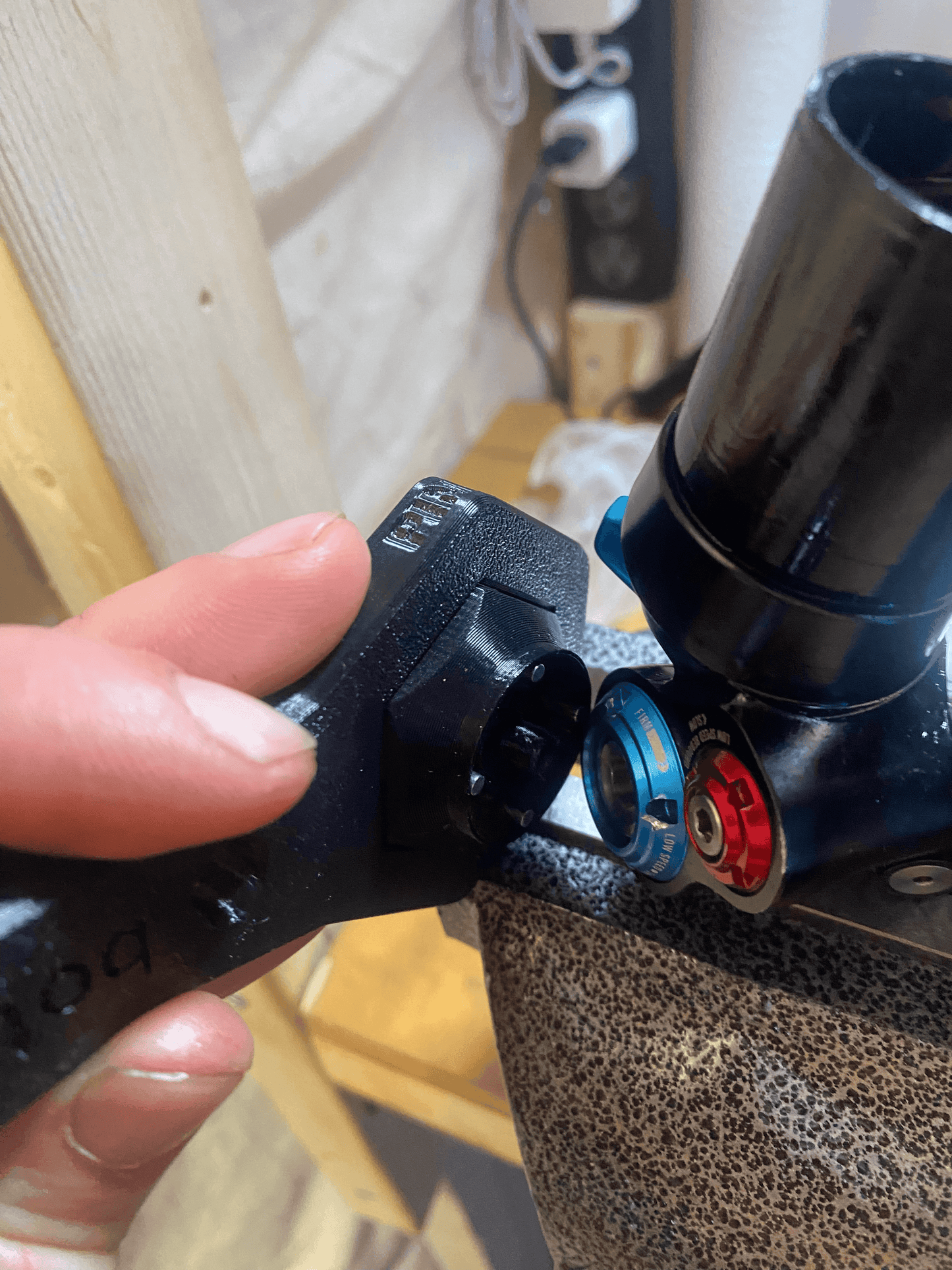

Lets you safely remove or reinstall the compression adjuster on the GEN-2 Float X2 and DHX2 shocks (2021-2025). This is required if you're doing a full teardown, replacing a leaking adjuster, or just cleaning out a sticky one.

If you have the version with no HSC (High speed compression), turn the centre clip-in knob upside down so the tool properly sits on the adjuster.

 Torque Warning

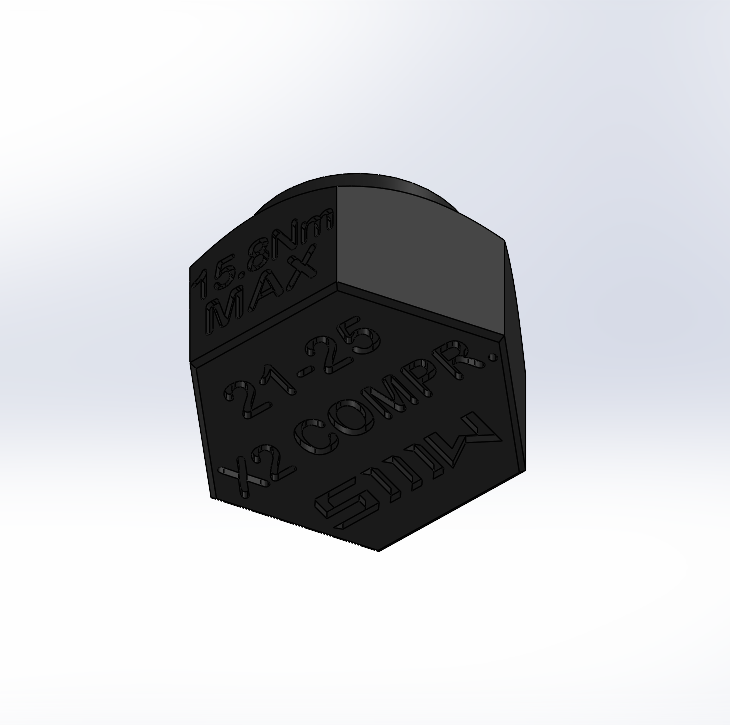

• This adjuster uses a medium torque (15.8Nm). The correct torque value is laser-etched on the tool.
• Do not over-torque! If you go too tight, the adjuster may stop working, or you could break the tool or the shock.
• You can'T use a torque wrench with this tool because the plastic will not take it so use a normal 32mm, adjustable spanner or our custom 2-sided spanner to get clean, controlled pressure and avoid slipping.
• Use our Luggage scale calculator to calculate an exact torque without a torque wrench.

 What It Works With

• Fox Float X2 (2021–2025)
• Fox DHX2 (2021–2025)

For step-by-step guidance, see: How to Use Pin Sockets

 Disclaimer

These are designed for home mechanics only. Do not use in a shop or commercial setting they will wear out over time.
Always read our Terms of Service before use.
