What FOX shock models is the Float X2 2021–2025 Small Shaft Clamp (3/8") compatible with?

This clamp fits exclusively the FOX Float X2 produced between 2021 and 2025, which uses a 3/8" damper shaft. It is not compatible with the Float X2 2016–2020 (which requires the 9 mm shaft clamp) or any Float X2 2026+ model. Verify your shock's year before purchasing.

What is included with the Float X2 2021–2025 Small Shaft Clamp (3/8") purchase?

Each purchase includes two clamps — sold as a pair. The second clamp serves as a backup in case one is broken through misuse. A full usage manual is available and must be read before use to avoid damaging the clamp or the 3/8" shaft.

How does the Float X2 2021–2025 Small Shaft Clamp (3/8") differ from a standard metal bench vise insert?

This is a 3D-printed home-mechanic tool, not a professional-grade metal clamp. It is engineered specifically for the narrow 3/8" FOX Float X2 shaft and uses reinforcement to compensate for that small diameter. Standard metal inserts are not designed for this shaft size and can cause shaft damage; this clamp is shaped to distribute clamping force correctly when used with the prescribed technique — cleaning the shaft with isopropyl alcohol and wrapping it in dry paper towel before clamping.

Does Shockwave Parts ship the Float X2 2021–2025 Small Shaft Clamp (3/8") to Canada, and what are the shipping costs?

Yes, Shockwave Parts ships from Canada. Tracked domestic shipping starts at $8.49 CAD with a maximum of $14.99 CAD, and orders over $89 CAD qualify for free shipping within Canada. Orders are processed and shipped in 1 business day.

What technique is required to use the Float X2 2021–2025 Small Shaft Clamp (3/8") without breaking it?

Clean the damper shaft thoroughly with isopropyl alcohol — multiple passes — then wrap it with dry paper towel to increase friction before clamping. Apply even pressure in the vise and never overtighten. Verify the inner air can is fully threaded into the negative sealhead before attempting to clamp. Skipping these steps is the primary cause of clamp breakage, as the 3/8" shaft diameter makes correct technique critical.

1 3

Shockwave Parts

Float X2 2021–2025 Small Shaft Clamp (3/8")

Name: Float X2 2021–2025 Small Shaft Clamp (3/8")
Brand: Shockwave Parts
Price: 27 USD
Availability: InStock

$32.00 CAD

Sale Sold out sorry :(

Shipping calculated at checkout.

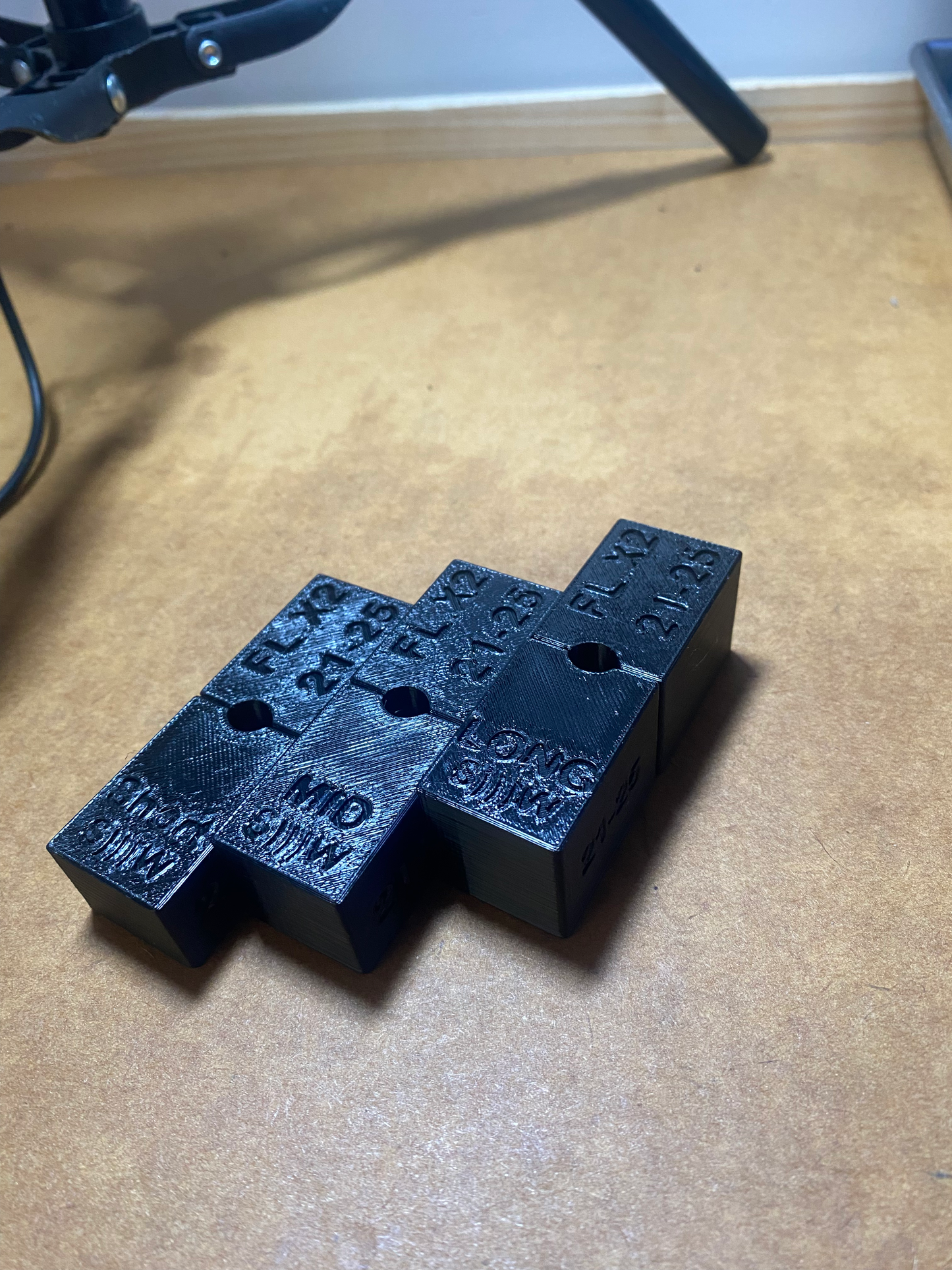

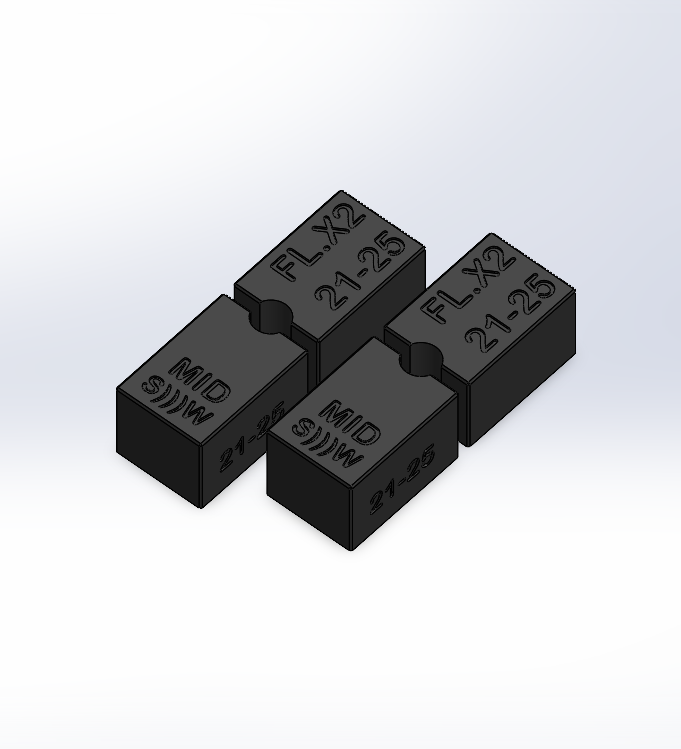

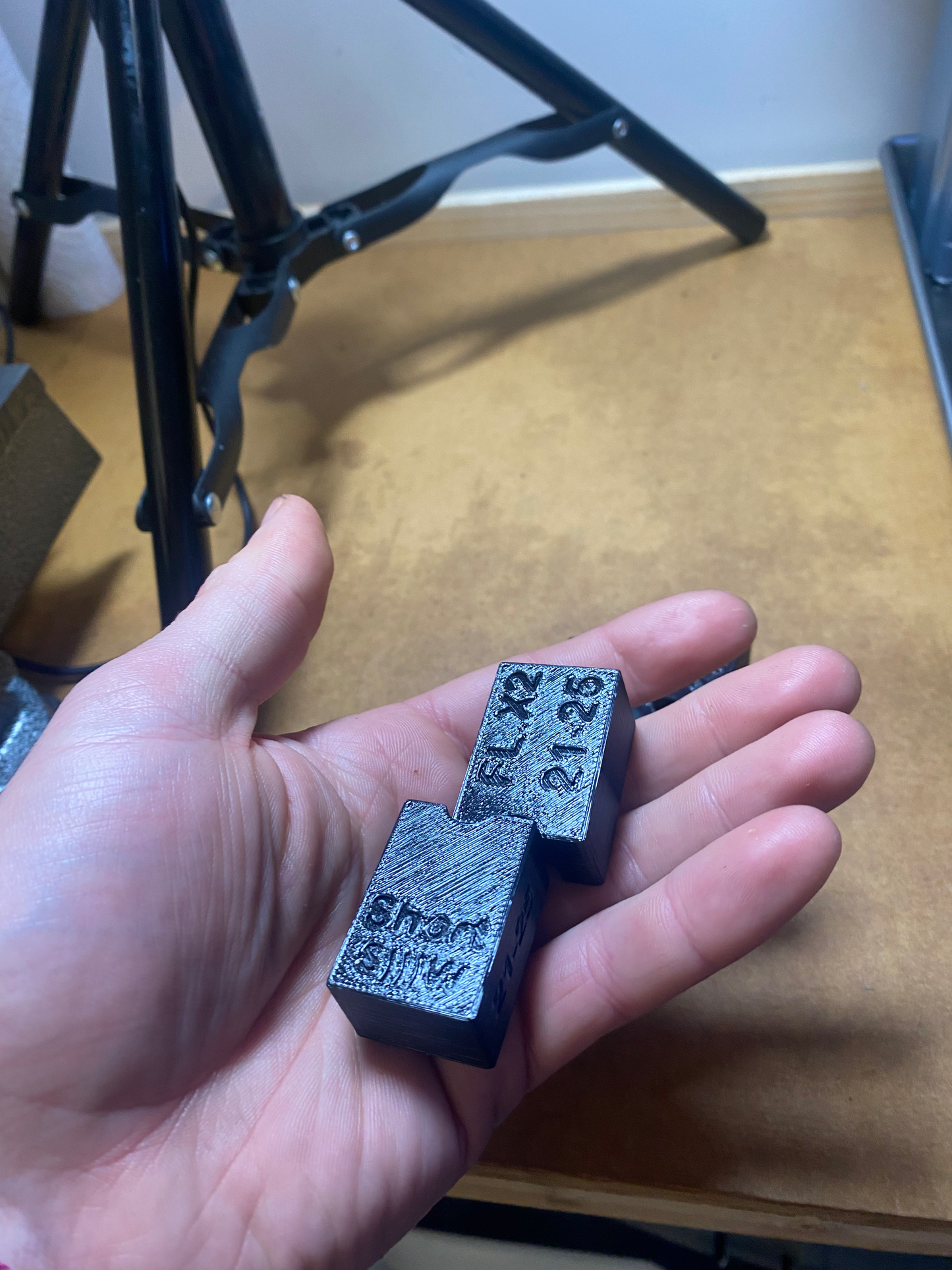

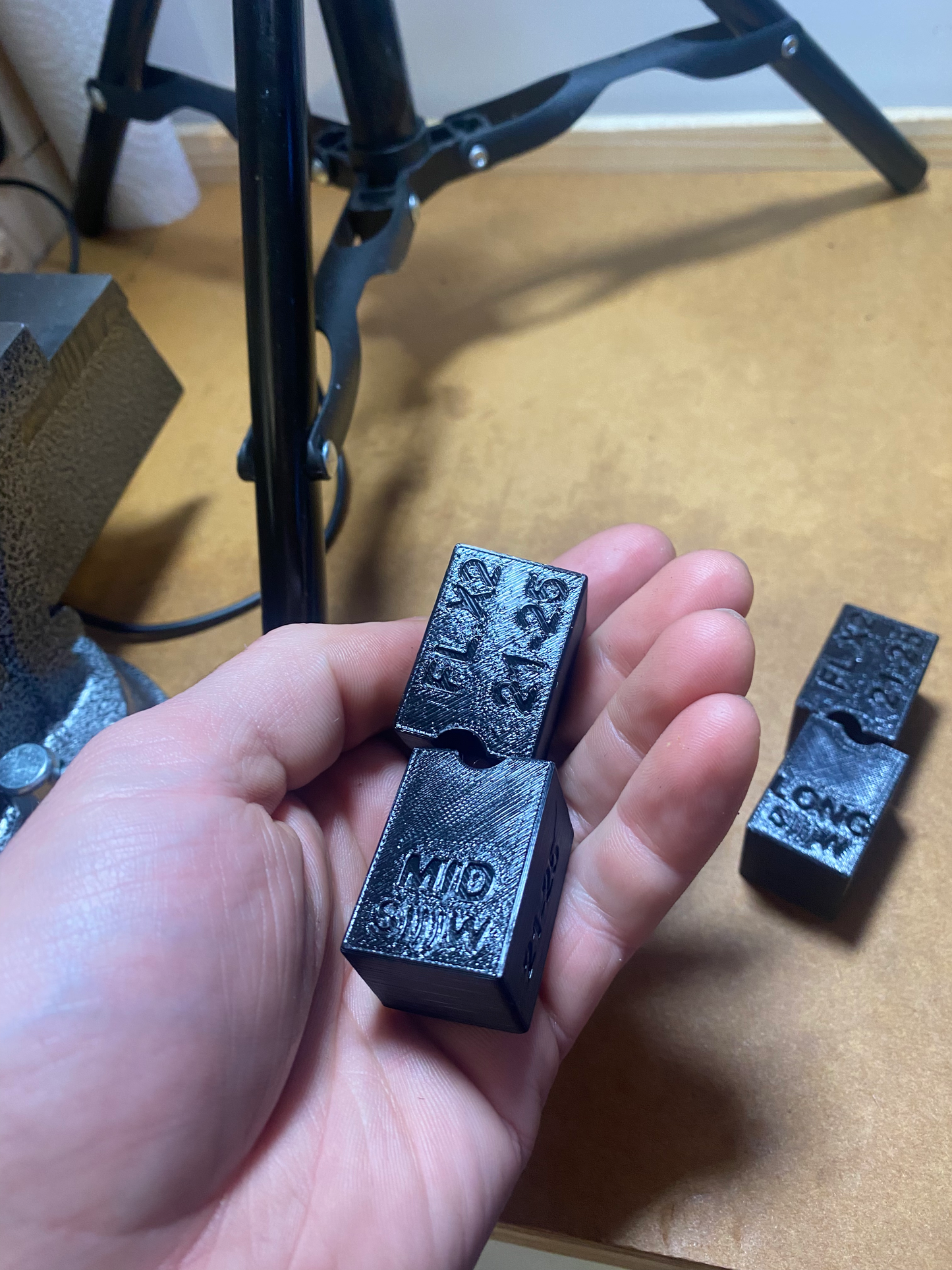

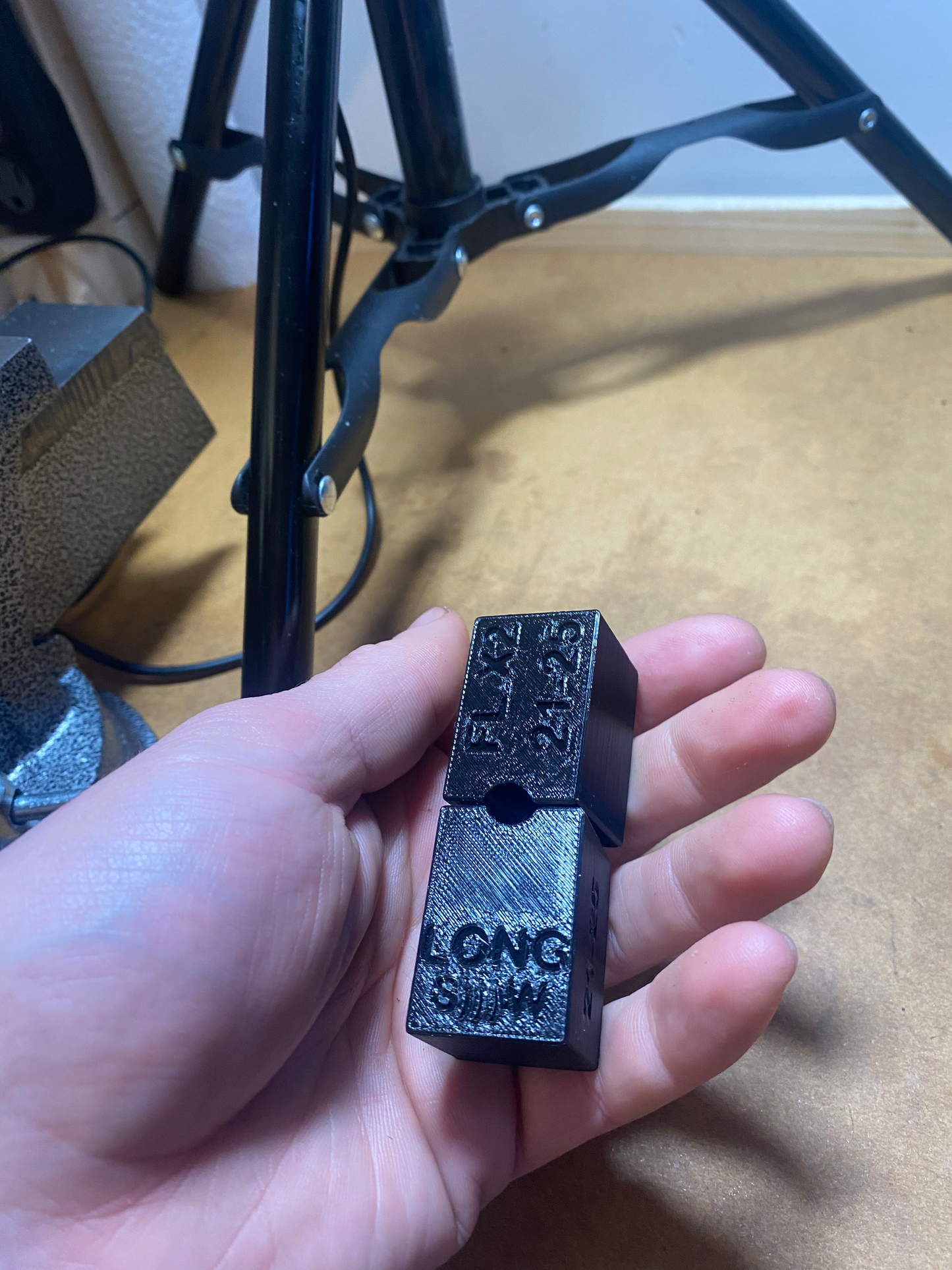

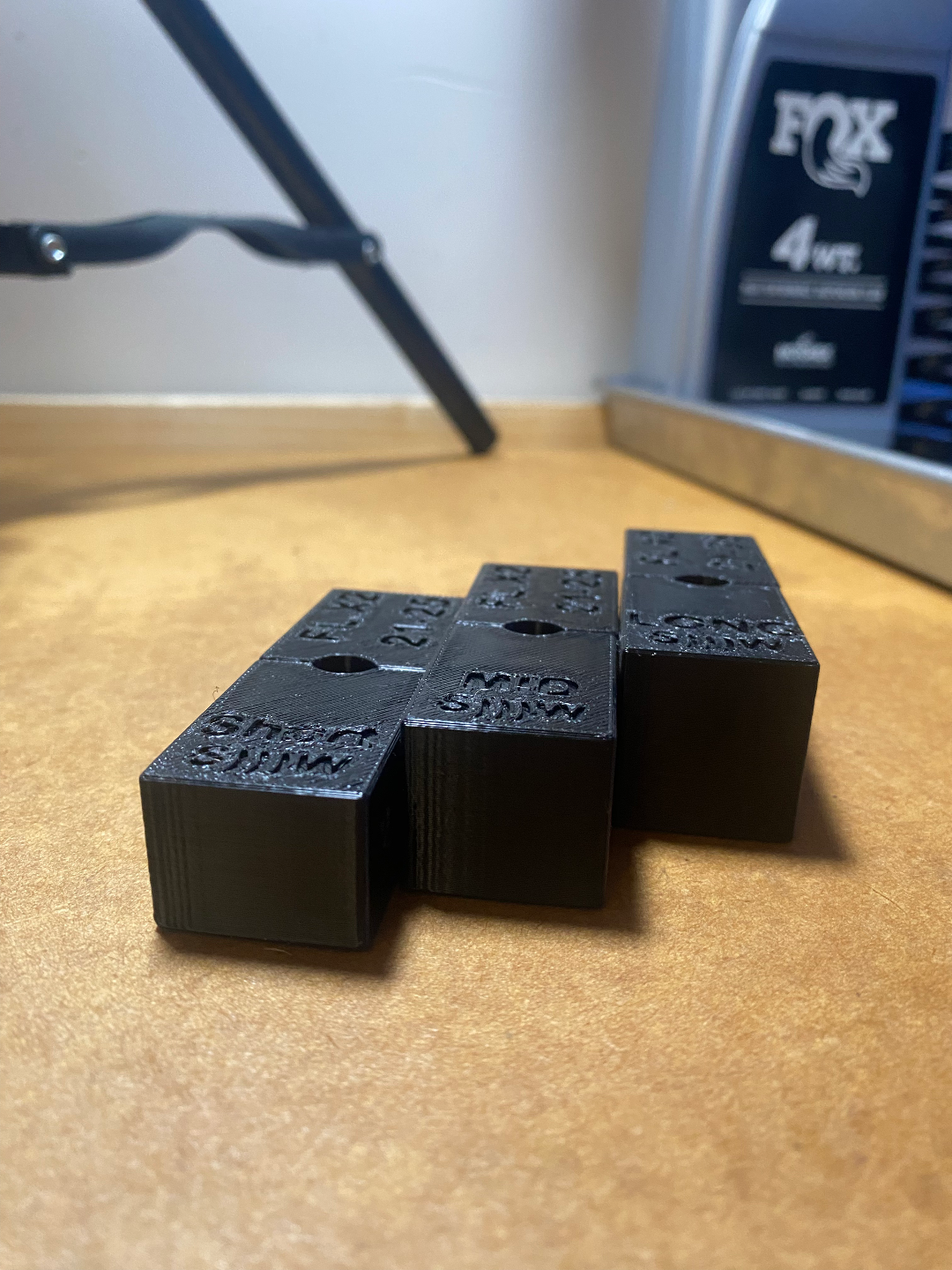

Float X2 2021–2025 Small Shaft Clamp (3/8)

Reinforced clamp designed to hold the narrow 3/8" damper shaft on FOX Float X2 2021–2025 shocks. This tool must be used exactly as instructed to avoid breakage or shaft damage.

⚠️ Important warning (read before buying)

This tool is very easy to misuse. You must read the clamp manual or you will almost certainly break it. The 3/8" shaft is extremely narrow, technique matters more than strength.

Each purchase includes two clamps (a pair). If you break one by skipping the guide, you still have a backup. If you follow instructions, both will likely last indefinitely.

Read the usage manual before buying »

What this tool does

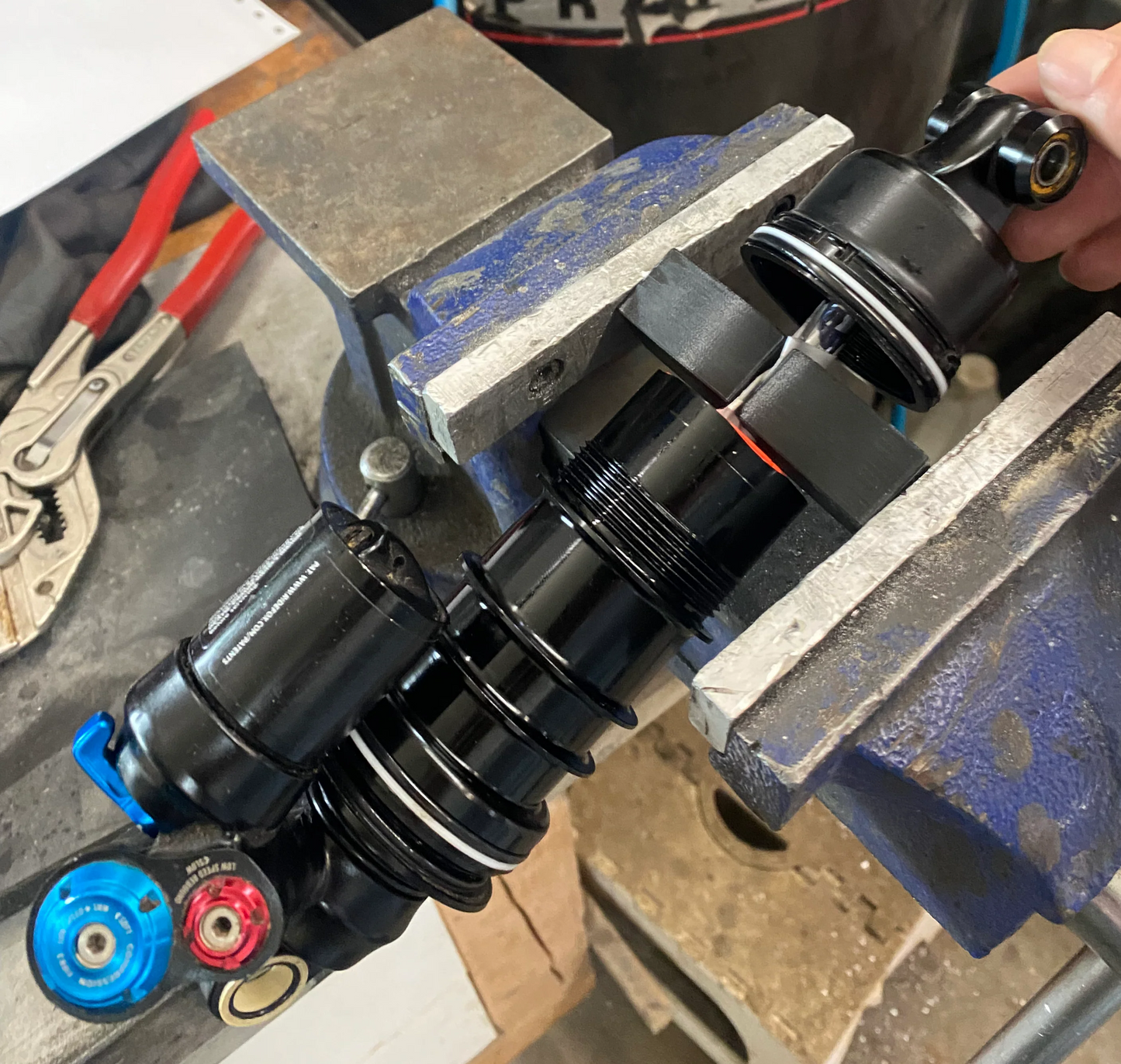

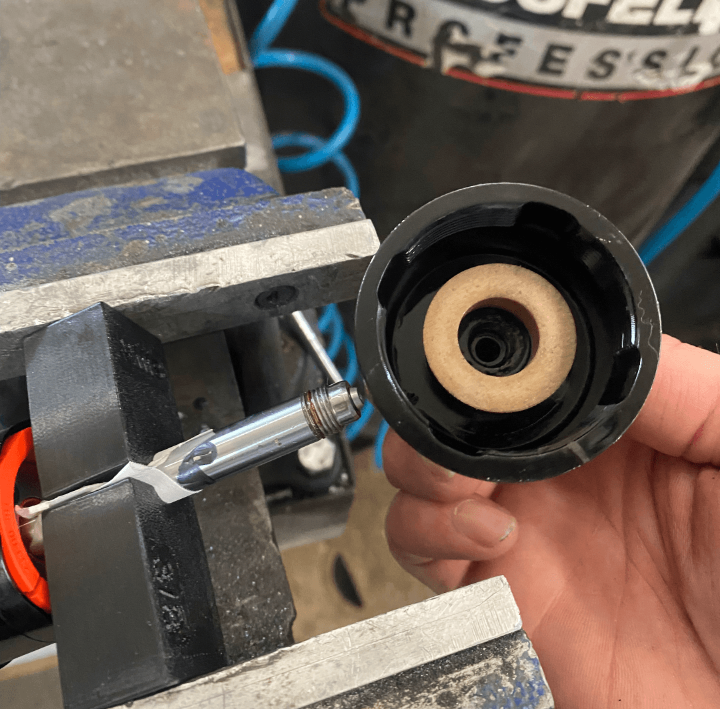

This clamp allows you to hold the damper shaft securely in a bench vise for service operations such as sealhead removal and eyelet removal. Because the shaft diameter is very small, the clamp is reinforced but still fragile if misused.

Fits the 3/8" shaft used on Float X2 (2021–2025)
Not compatible with Float X2 (2016–2020) or 2026+

Compatibility

FOX Float X2 2021–2025
3/8" damper shaft only

Setup & usage

Clean the shaft thoroughly with isopropyl alcohol (more than once)
Wrap the shaft with dry paper towel to increase friction
Clamp with even pressure, never overtighten
Apply controlled heat to the eyelet (HEATGUN / TORCH) - FOX uses red Loctite

Full clamp manual here read it or you will break the tool.

Additional warnings

Always clamp a clean, degreased shaft, oil will cause slipping
If it doesn’t fit easily, verify that the inner air can is fully threaded into the negative sealhead
Using the wrong clamp height can prevent proper contact and damage the shaft

⚠️ Disclaimer

Home-mechanic tool only. Not a professional-grade metal clamp. Follow the guide carefully and never overtighten. By purchasing or using this tool, you agree to our Terms of Service.
