Which FOX shock models is the Fox DHX2 & Float X2 IFP Puller Tool compatible with?

The Fox DHX2 & Float X2 IFP Puller Tool is confirmed compatible with FOX Float X2 (2021–2025) and FOX DHX2 (2021–2025) rear shocks. It also fits the 2026+ DHX2 and Float X2 monotube variants, though compatibility with the 2026+ models has not been fully validated. It is not designed for inline (non-piggyback) shocks or earlier shock generations.

What does the Fox DHX2 & Float X2 IFP Puller Tool actually do during a shock service?

The tool slides directly over the Internal Floating Piston (IFP) inside the piggyback reservoir, allowing you to rotate, slide, and extract it without damaging the piston or bore. It is used in three specific scenarios: removing the IFP for O-ring replacement, inserting the IFP after bleeding before reinstalling the seal head, and agitating the IFP to release trapped air bubbles during the bleed procedure.

How does the Fox DHX2 & Float X2 IFP Puller Tool differ from a generic IFP tool or seal driver?

Generic seal drivers and improvised IFP tools are not shaped to the specific bore diameter and IFP geometry of the FOX DHX2 and Float X2 piggyback reservoir. The Fox DHX2 & Float X2 IFP Puller Tool is designed specifically for these shock internals, enabling controlled rotation and axial movement without contact damage. A general-purpose tool risks scratching the IFP surface or applying uneven force that can displace O-rings.

How much does the Fox DHX2 & Float X2 IFP Puller Tool cost and does Shockwave Parts ship to Canada?

The tool is priced at $15.49 CAD and is currently in stock. Shockwave Parts ships from Canada: tracked domestic shipping starts at $8.49 CAD with a maximum of $14.99 CAD, and orders over $89 CAD qualify for free shipping within Canada. Orders are processed and dispatched within 1 business day.

Is the Fox DHX2 & Float X2 IFP Puller Tool suitable for professional shop use?

This tool is designated as a home-mechanic tool. It is suited for riders and enthusiasts performing DIY rear shock service on FOX DHX2 and Float X2 shocks, including O-ring replacement and damper bleeding. Use requires controlled force and adherence to proper FOX service procedures; it is not rated or warranted for high-volume professional workshop use.

1 5

Shockwave Parts

Fox DHX2 & Float X2 IFP Puller Tool (2021+)

Name: Fox DHX2 & Float X2 IFP Puller Tool (2021+)
Brand: Shockwave Parts
Price: 15.49 CAD
Availability: InStock

$15.00 CAD

Sale Sold out sorry :(

Shipping calculated at checkout.

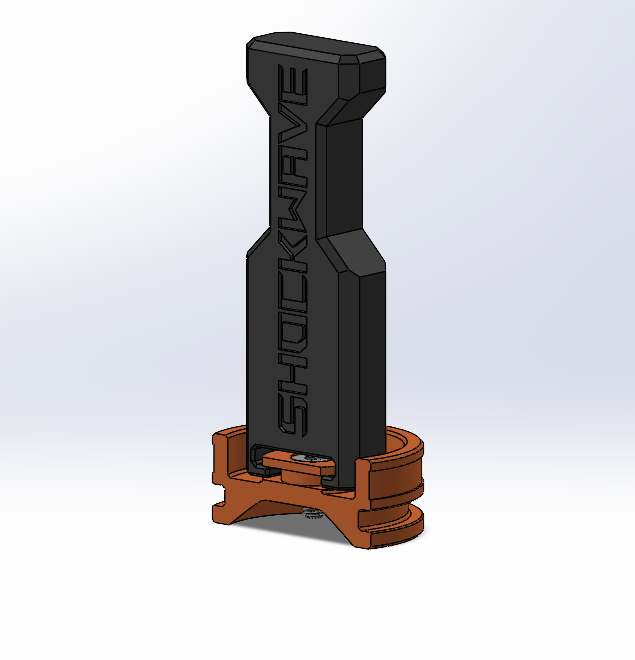

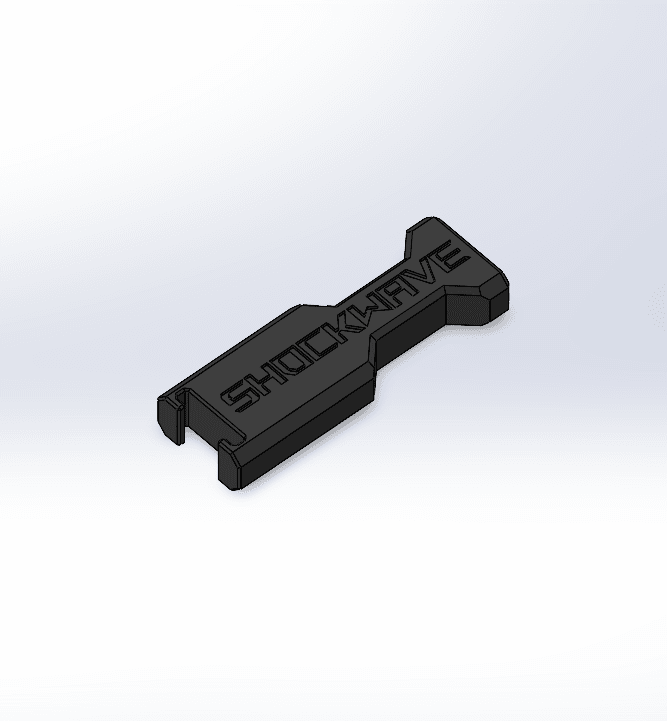

2021–2025 IFP Puller Tool – Fox DHX2 & Float X2

Compact IFP puller designed specifically for FOX DHX2 and Float X2 shocks (2021–2025). It also fit the new 2026+ X2s monotube, but this has not been fully validated yet.

What this tool does

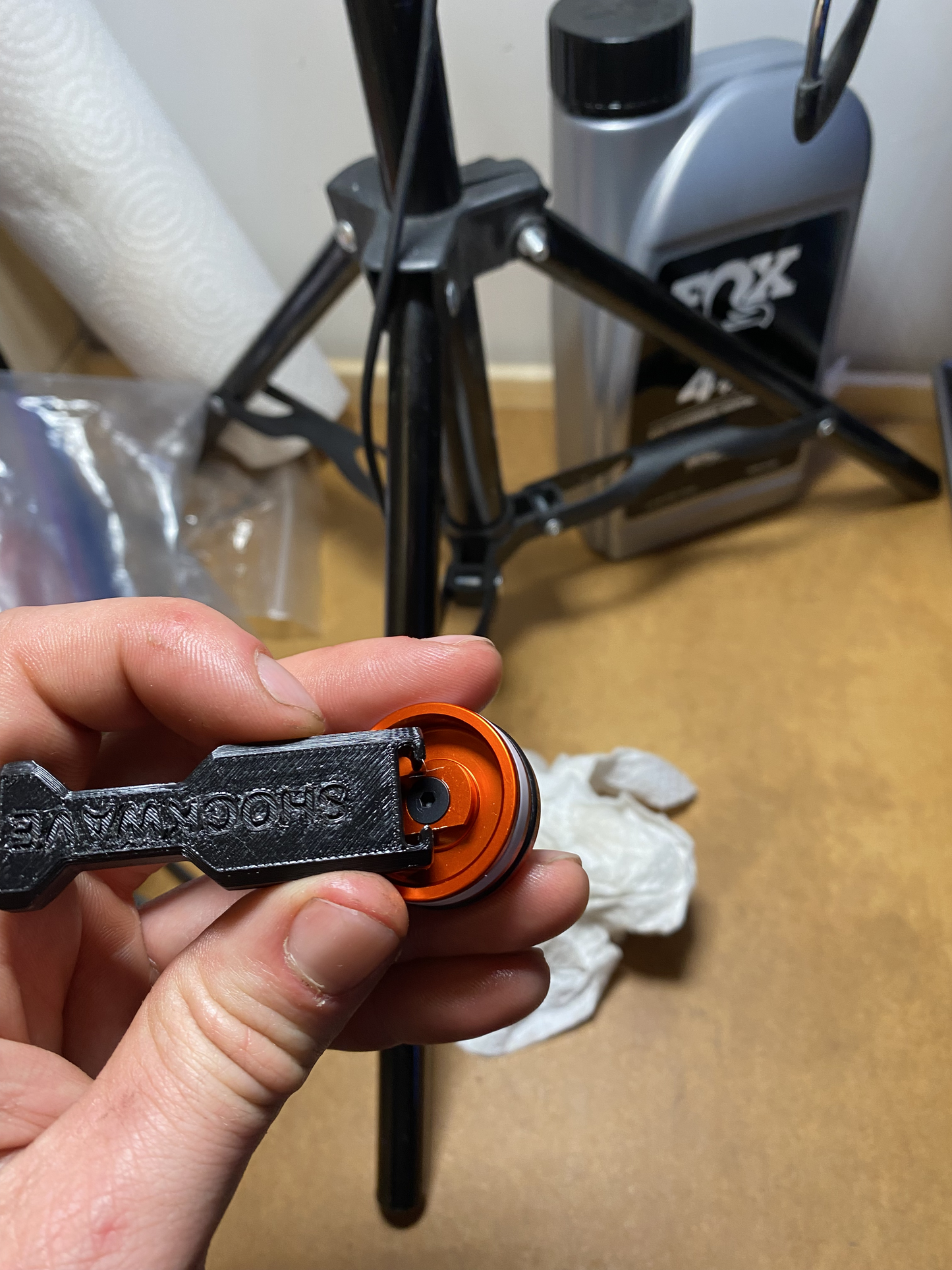

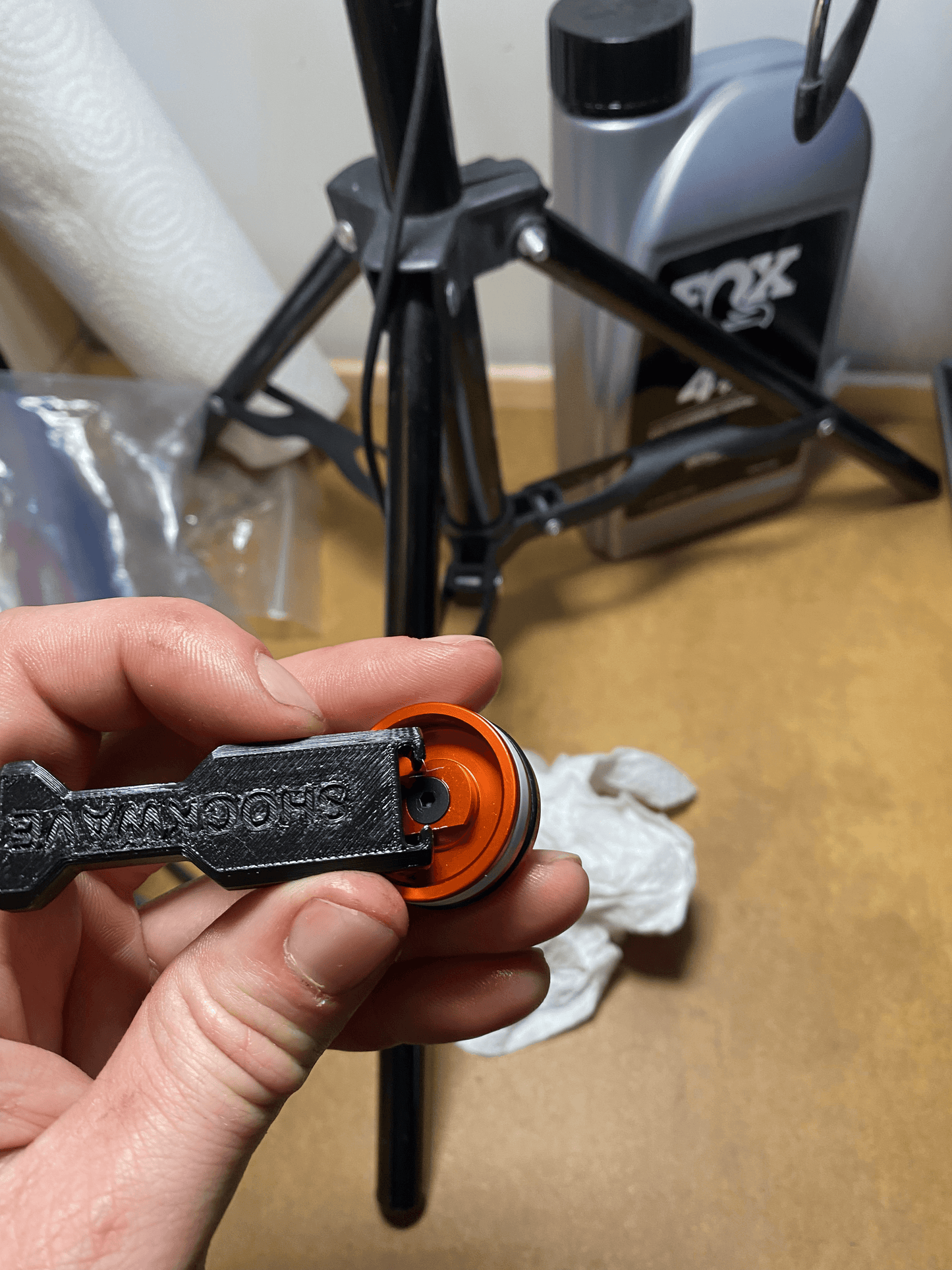

This tool slides directly over the Internal Floating Piston (IFP) and allows you to rotate, slide, and pull it smoothly and safely. It is especially useful for removing the IFP to replace O-rings and for controlled IFP movement during the bleeding process.

When to use it

After bleeding the damper, to insert the IFP before reinstalling the seal head
To remove the IFP from the piggyback reservoir for inspection or cleaning
To gently slide or agitate the IFP to release trapped air bubbles during bleeding

Compatibility

FOX Float X2 2021–2025
FOX DHX2 2021–2025
DHX2 2026+ monotube
Float X2 2026+ monotube

⚠️ Disclaimer

Home-mechanic tool only. Always use controlled force and follow proper service procedures. By purchasing or using this tool, you agree to our Terms of Service .
