What tools are included in the RockShox Vivid Coil Rebuild Kit (2008–2024)?

The kit includes five tools: a 6-pin sealhead wrench, an M5 IFP puller (required to extract the Internal Floating Piston), a 1/2" shaft clamp, an IFP depth tool, and a sealhead negative spring compression tool for Counter-Measure models. Seal kits, shock pump, bleed syringe, M5 brake bleed fitting, Schrader valve core remover, and a RockShox IFP air valve adapter are not included and must be sourced separately.

Which RockShox Vivid Coil models is this rebuild kit compatible with?

This kit covers the full RockShox Vivid Coil platform from 2008 through 2024. IFP depth varies by model year: 2014–2022 shocks in the 267 x 89 mm size use 53 mm at 200 psi, while all other Vivid Coil models use 49 mm at 200 psi. Counter-Measure variants require the included compression tool for safe sealhead reassembly; non-Counter-Measure models do not.

How does this DIY rebuild kit compare to buying individual RockShox service tools?

This kit bundles the five platform-specific tools needed for a Vivid Coil rebuild into one purchase, eliminating the need to source each tool separately. The included pin spanner wrench is suited for home mechanics and occasional use; for frequent, repeated rebuilds, Shockwave Parts recommends the official RockShox steel CNC pin spanner wrench, which withstands more torque cycles.

What is the recommended sealhead torque when using the RockShox Vivid Coil Rebuild Kit (2008–2024)?

Shockwave Parts recommends 20–25 Nm for the sealhead, lower than the RockShox specification of approximately 30–34 Nm. The O-ring provides the seal, and the fine thread pitch generates high clamp load with minimal rotation, so the higher factory figure increases the risk of stripped threads, cracked components, or broken tools without improving the seal.

Is the RockShox Vivid Coil Rebuild Kit (2008–2024) suitable for professional or high-frequency shop use?

This kit is designed for home mechanics performing occasional rebuilds, not for high-frequency professional shop use. Mechanics who service Vivid Coil shocks repeatedly should use the official RockShox steel CNC pin spanner wrench, which holds up better under repeated torque cycles. The kit's internals and procedure are closely related to the 2018–2022 Super Deluxe Coil, so experience with that platform transfers directly.

1 8

Shockwave Parts

RockShox Vivid Coil Rebuild Kit (2008–2024)

Name: RockShox Vivid Coil Rebuild Kit (2008–2024)
Brand: Shockwave Parts
Price: 175.49 CAD
Availability: OutOfStock

$139.49 CAD

Sale Sold out sorry :(

Shipping calculated at checkout.

RockShox Vivid Coil (2008–2024) Full DIY Rebuild Toolkit

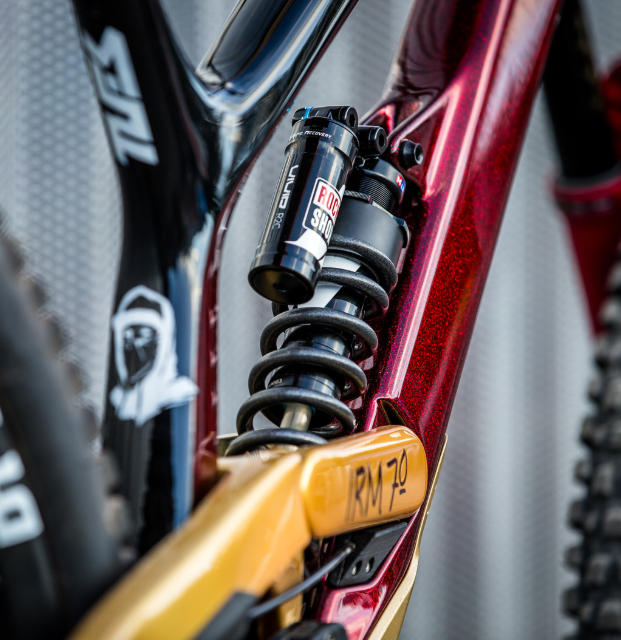

This kit targets the RockShox Vivid Coil platform (2008–2024). Internals and procedure are very similar to the 2018–2022 Super Deluxe Coil, with different adjusters and piggyback hardware. If you’ve rebuilt a Super Deluxe Coil before, the process will feel familiar.

Heavy-use note:
This kit is built for home mechanics and occasional rebuilds. If you plan to service RockShox Vivid Air shocks frequently, consider the official RockShox pin spanner wrench, it’s steel, CNC-made, and holds up much better to repeated torque cycles than ours.

Official tool (recommended for frequent use): RockShox Vivid Pin Spanner Wrench

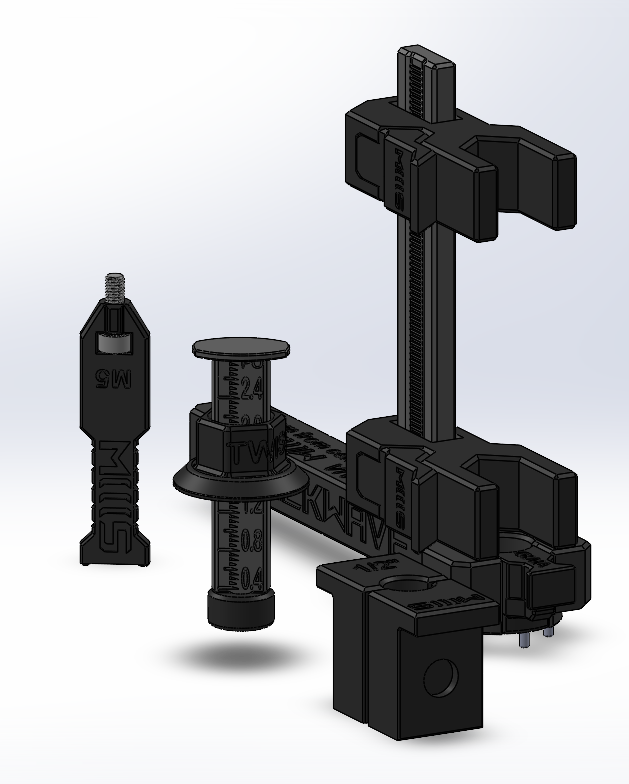

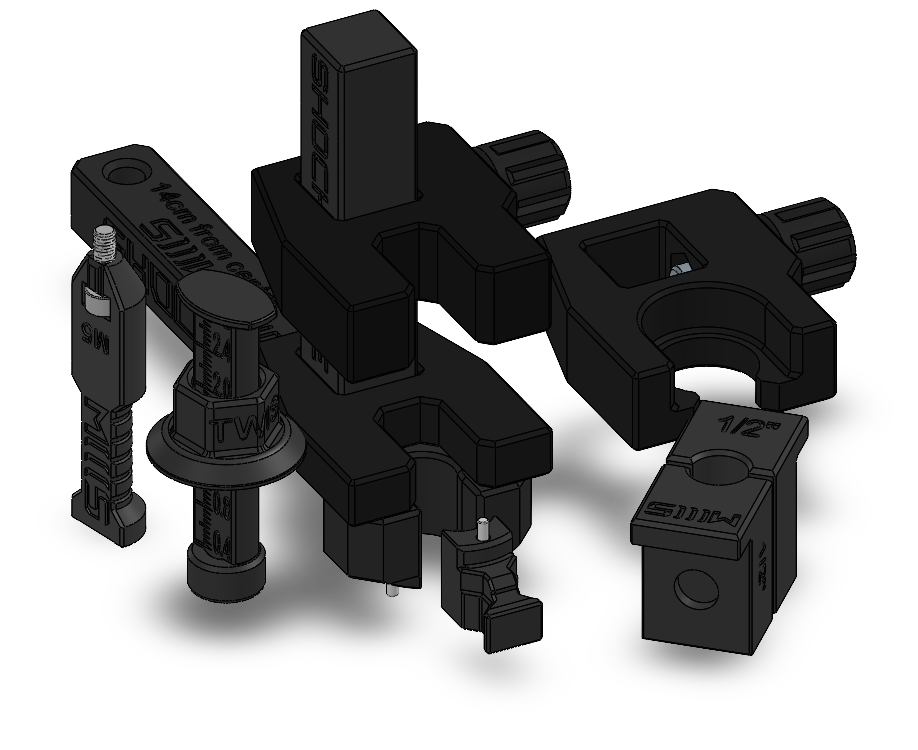

What’s Included

6-Pin Sealhead Wrench
M5 IFP Puller (required to remove the IFP)
1/2" Shaft Clamp
IFP Depth Tool

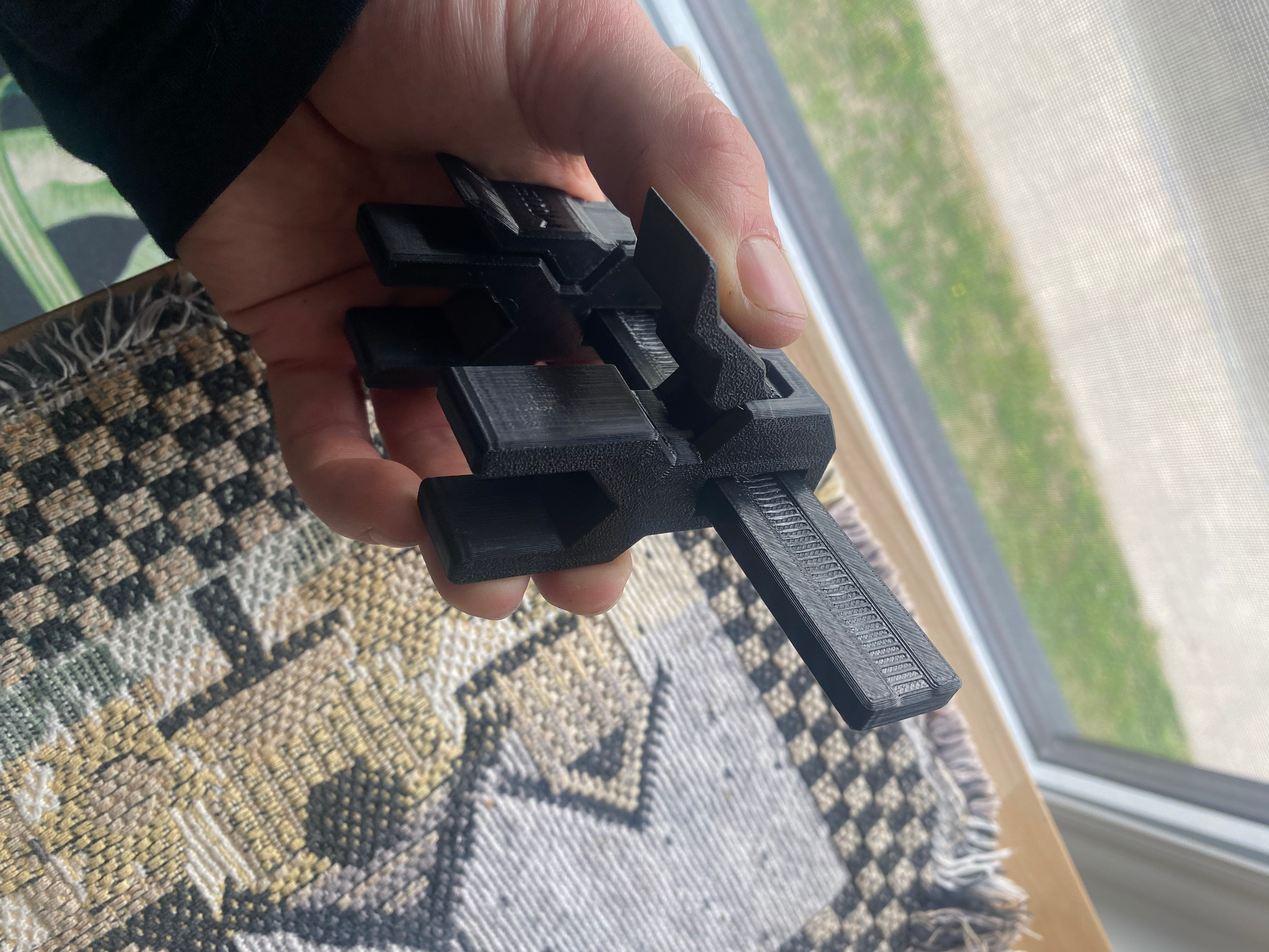

Sealhead Negative Spring Compression Tool (only for Counter-Measure shocks)

Safety Disclaimer (Read First)

WARNING: These are high-pressure systems.

Release air spring pressure first (if you are working on an air version)
Then fully release IFP / reservoir pressure before opening the shock
Open all adjusters before bleeding

Improper handling can cause injury. These tools are intended for home mechanics only.

When in doubt, follow the official RockShox Vivid service manual.

Compatibility Notes (Counter-Measure)

Some Vivid Coil models use the Counter-Measure negative spring system, others do not.

If your shock is labeled "Counter-Measure", you must use the Sealhead Negative Spring Compression Tool for safe reassembly.
If your shock does not use Counter-Measure, you can rebuild without that tool.

This is especially common on later-year Vivid Coil models.

Required Extras (Not Included)

To pressurize the damper side of RockShox shocks with a standard shock pump, you need a RockShox IFP air valve adapter:

RockShox IFP Air Valve Adapter on Amazon

A Schrader valve core remover is mandatory.

Other basics still required:

Shock pump
Bleed syringe + a proper M5 brake bleed fitting
Common hand tools (Allen keys, strap wrench, etc.)

Essential Tools

Seal kits are separate. Here is an updated and inexpensive aftermarket seal kit.

IFP Depth, Pressure & Oil

Vivid 2014–2022 (267 x 89 mm): IFP depth = 53 mm · 200 psi
All other Vivid Coil models: IFP depth = 49 mm · 200 psi

RockShox 3 wt is no longer available. These are good substitutes:

Fox 4 wt (very close viscosity)
Motorex 2.5 wt

If you are bleeding through a fitting (syringe + port) and you are not using a compression tool, you can correct IFP depth using:

Adjusted IFP Depth = Base IFP Depth − [(6.35² × Shaft Lost) / (Reservoir Radius)²]

Example:
Base depth = 49 mm
Shaft lost = 10 mm
Reservoir inner diameter = 24 mm → radius = 12 mm
Adjusted depth ≈ 46.25 mm

Only use this equation if bleeding through a proper M5 brake bleed fitting. Otherwise, use the base depth with the compression tool (if applicable).

Sealhead Torque Warning

RockShox lists sealhead torque around ~30–34 Nm. That’s unnecessarily high and increases the chance of damage.
