M4 IFP & Bladder Puller Tool
M4 IFP & Bladder Puller Tool
Couldn't load pickup availability

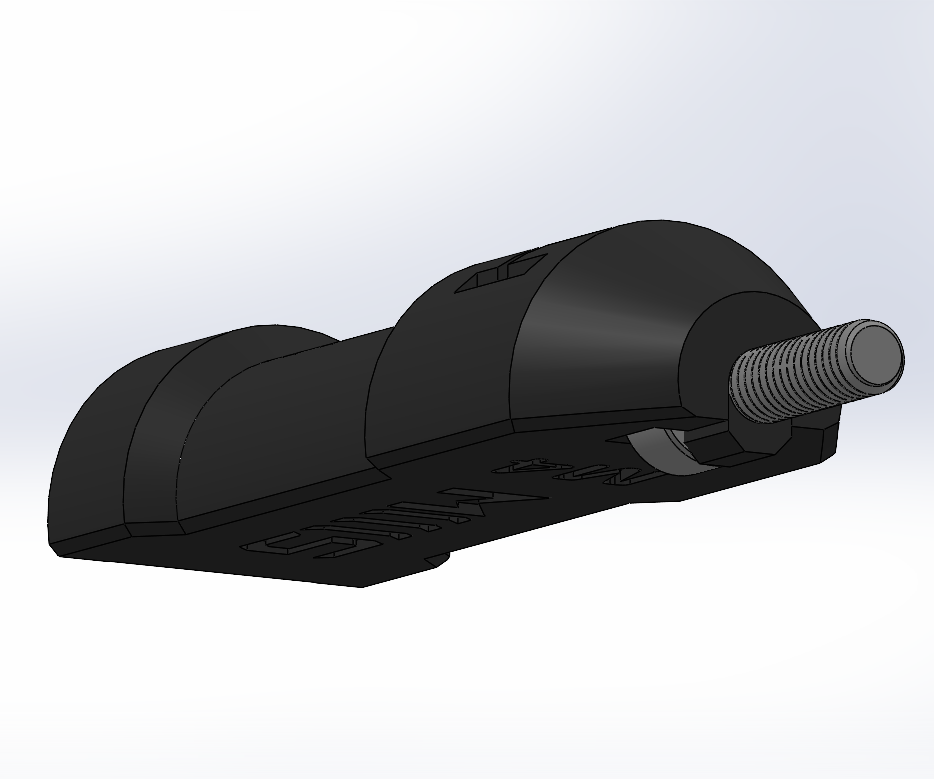

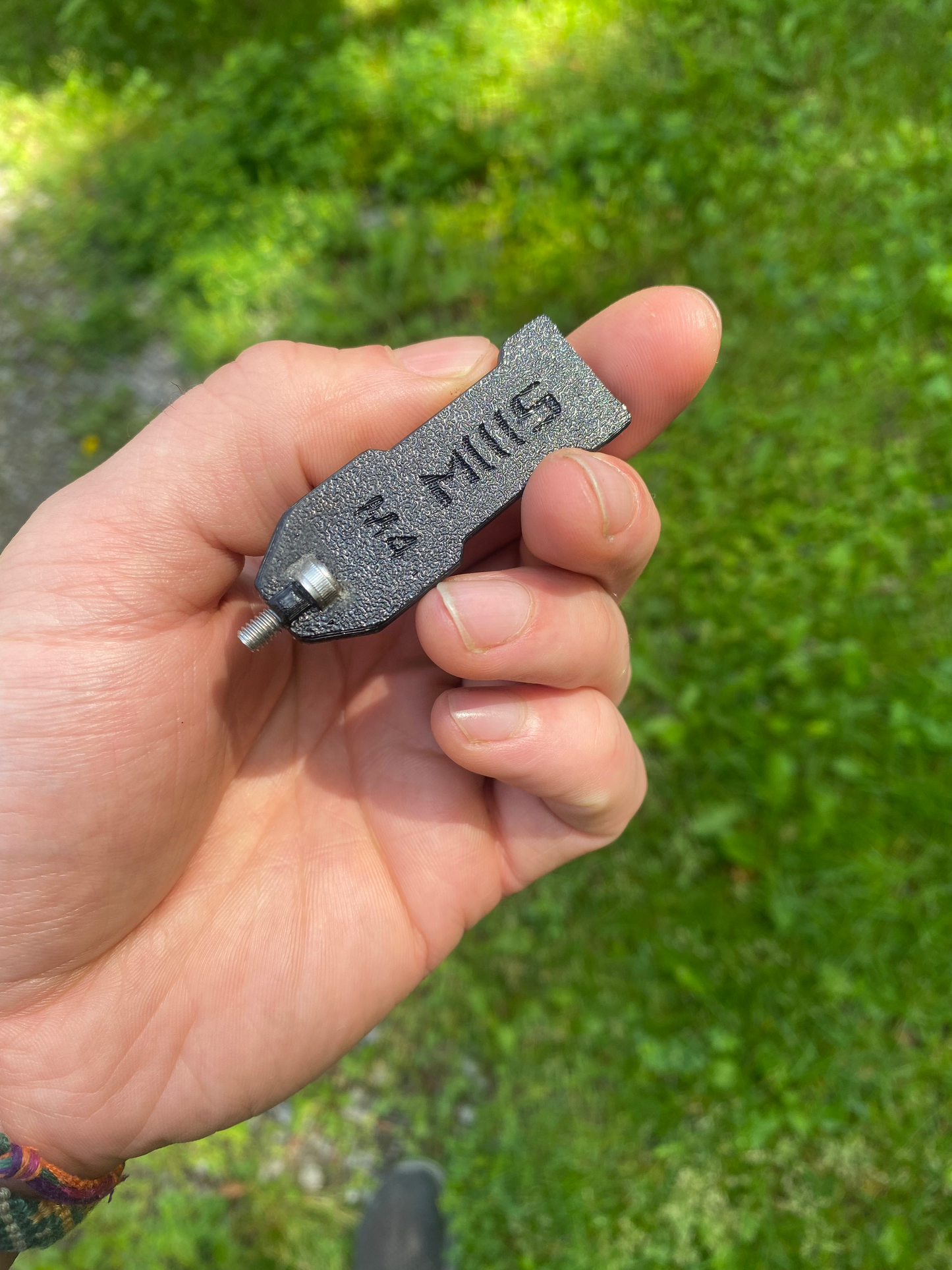

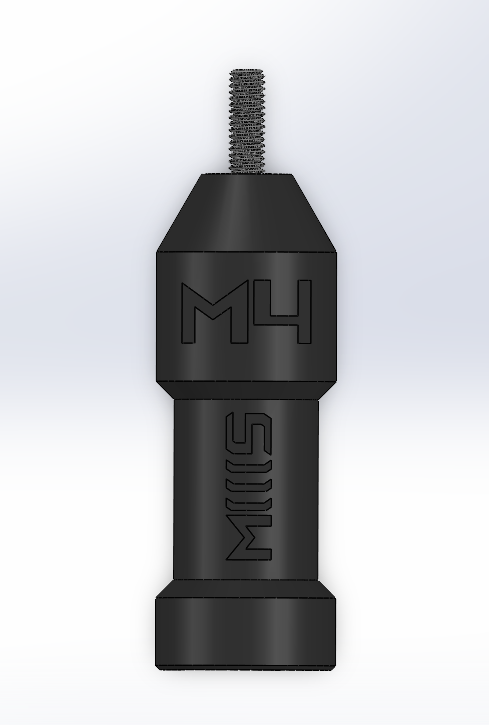

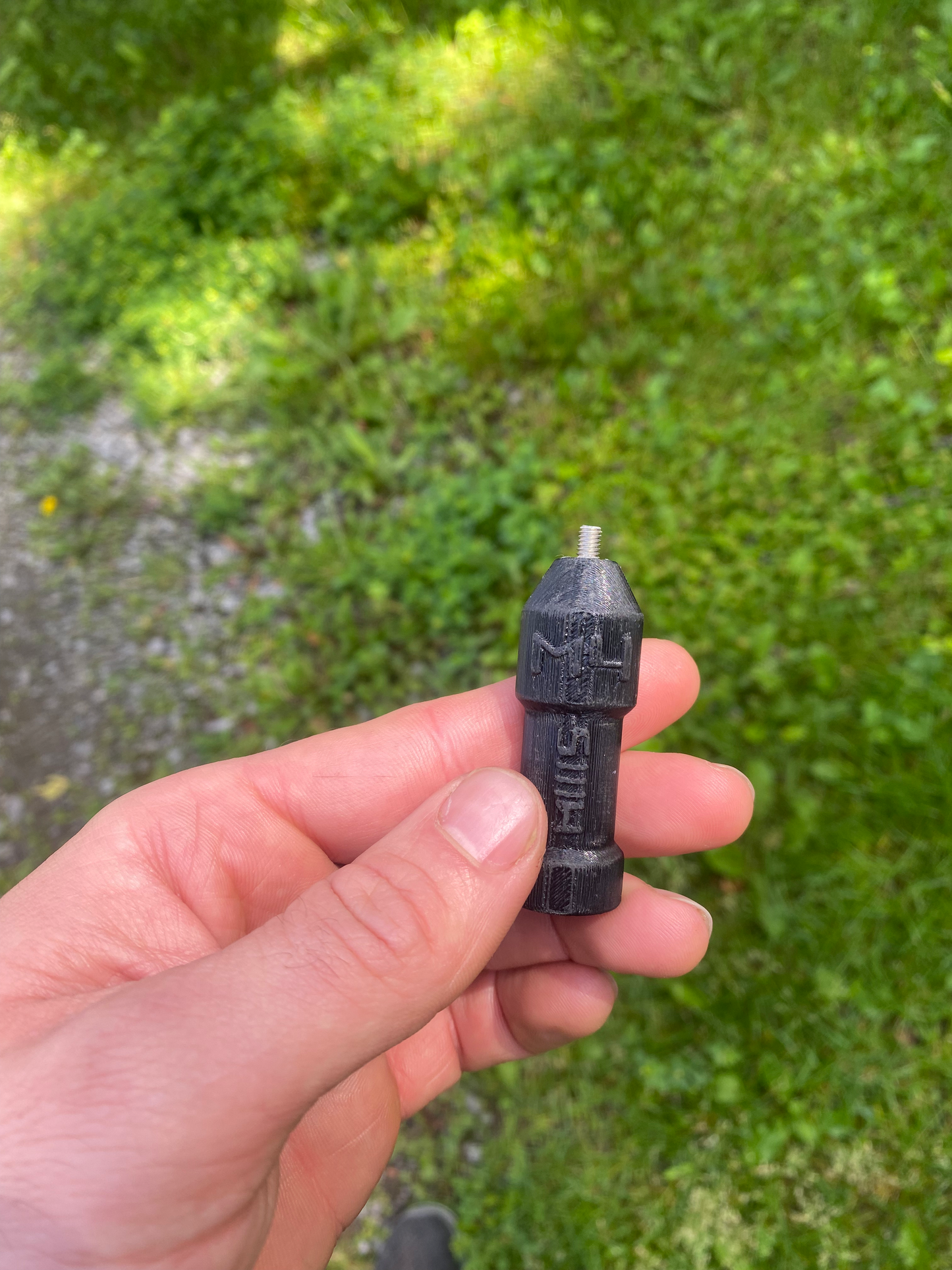

M4 IFP / Bladder Puller Tool
This tool is used to safely extract an Internal Floating Piston (IFP) or a bladder from suspension components that feature an M4-threaded pull port.
It’s commonly used on Cane Creek DB CS, Kitsuma, and potentially some Öhlins shocks to pull out the bladder.
If you’re servicing a Cane Creek shock and see an M4 thread in the center of the IFP or bladder cap, this is the correct tool.
How It Works
Thread the tool gently into the M4 pull port. The IFP or bladder may be slightly stuck due to stiction, a controlled pull is usually enough.
The long shaft allows you to wiggle and guide the part out without damaging the bore.
- Compatible with most Cane Creek IFPs and bladders using M4 threads
- May work on some Öhlins bladder caps (not yet confirmed)
Do You Really Need It?
If you’re opening a Cane Creek shock that uses a bladder (DB CS, Kitsuma), this tool is very useful.
You can technically use a standard M4 screw and pull it out with pliers, but this tool is safer, cleaner, and easier to control.
If you’re unsure whether your shock requires it, send us a photo and we’ll confirm.
Safety Notes
- Always depressurize the shock fully before disassembly
- Ensure the bleed screw or bladder plate is open before pulling
- Never force the part, let pressure equalize naturally
- Always follow the official service manual for your specific shock
Related Tools
- Graduated IFP Depth Tool : View Product
- Pellet Retainer Tool : View Product or Make Your Own
- Trunnion Torque Tool : View Product
Disclaimer
This tool is intended for careful home mechanics. Improper use can damage internal parts. Always consult your shock’s official service documentation. By purchasing or using this product, you agree to our Terms of Service.
