Shockwave Parts
Fox Fork Damper Ultimate Clamp Set
Fox Fork Damper Ultimate Clamp Set
Regular price
$53.49 CAD
Regular price
Sale price
$53.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

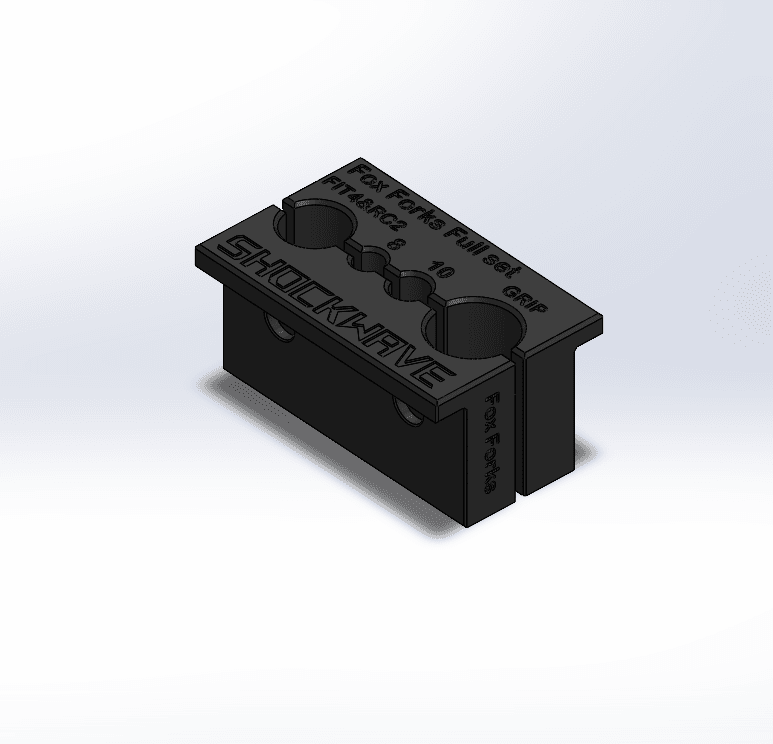

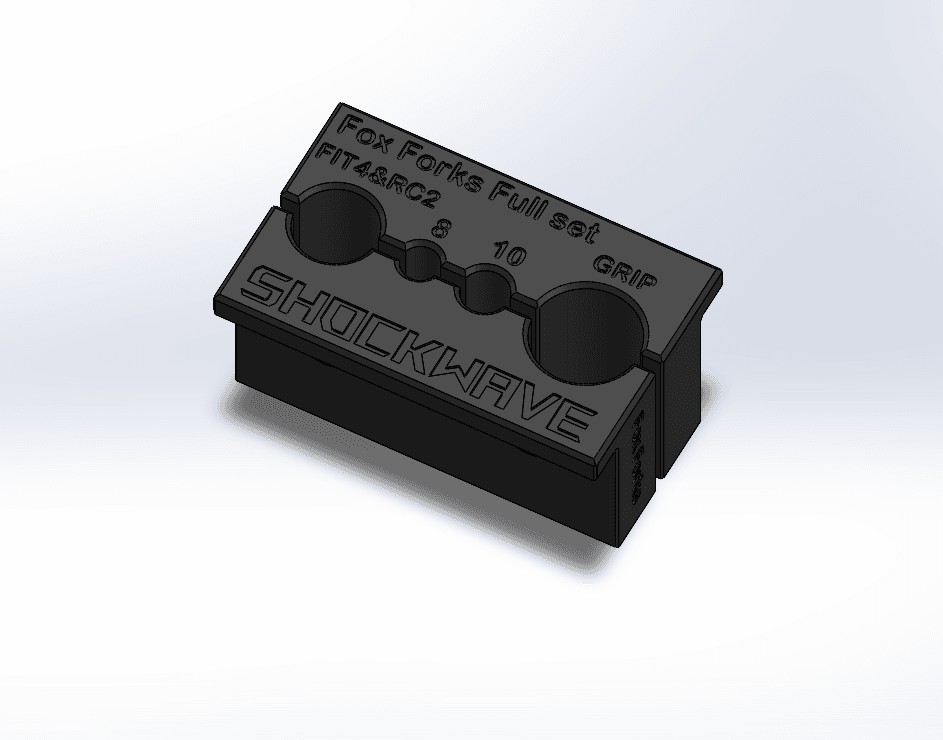

Fox Fork Damper Ultimate Clamp Set — GRIP + FIT + All Shaft Sizes
The last clamp set you'll ever need for Fox fork dampers. Includes clamps for both FIT and GRIP damper bodies, plus 8mm and 10mm shaft clamps covering every Fox damper and air shaft.
The clamps in the real photos are not the exact Ultimate Clamp Set, but they clearly demonstrate the strength and precision of the system.
⚠️ Warning: Always clean with isopropyl alcohol and wrap in a single layer of paper towel to reduce the required clamping force.
Usage manuals:
– Clamp Large Diameters
– Clamp Small Shafts
Usage manuals:
– Clamp Large Diameters
– Clamp Small Shafts
What It Does
- Securely clamps both FIT and GRIP damper bodies during bleeding and disassembly
- 8mm shaft clamp covers older FIT and some GRIP/VVC forks
- 10mm clamp fits most Fox air shafts and modern damper shafts
- Allows full sealhead access, rebound assembly removal, and shim stack service
Compatibility Notes
- Fits Fox 32, 34, 36, 38, and 40 forks
- Compatible with all GRIP (1, 2, X, X2, VVC) and FIT (RC2, FIT4) dampers
- Step-Cast and FIT Terralogic are around ~25mm (rare)
- Terralogic dampers use cone wrenches extensively and may not be fully serviceable
Tech Notes
– GRIP dampers use an IFP (easier to service)
– FIT dampers are bladder-style and take longer to bleed (see Bleeding Tips)
– Both require Fox 4wt damper oil
– Older FIT RC2 used 10wt Red (discontinued) → use 10wt Green instead
Bleeding Tips for FIT Dampers
- Use a bare hose from a brake bleed kit and insert it into the LSC needle hole to gravity-bleed the bladder chamber
- For FIT RC2: a large 8mm ID tube works well around the top-cap assembly
- A kitchen funnel actually works surprisingly well (photo coming soon)
- Remove the screw, add oil, cycle slowly, squeeze bladder to purge air
- Never open the bladder unless damaged, very difficult to re-seal properly
Recommended Extras
Disclaimer:
This tool is intended for home mechanics. Always clean and wrap shafts before clamping. Follow our usage guides before attempting service. Not designed for commercial shop abuse.
