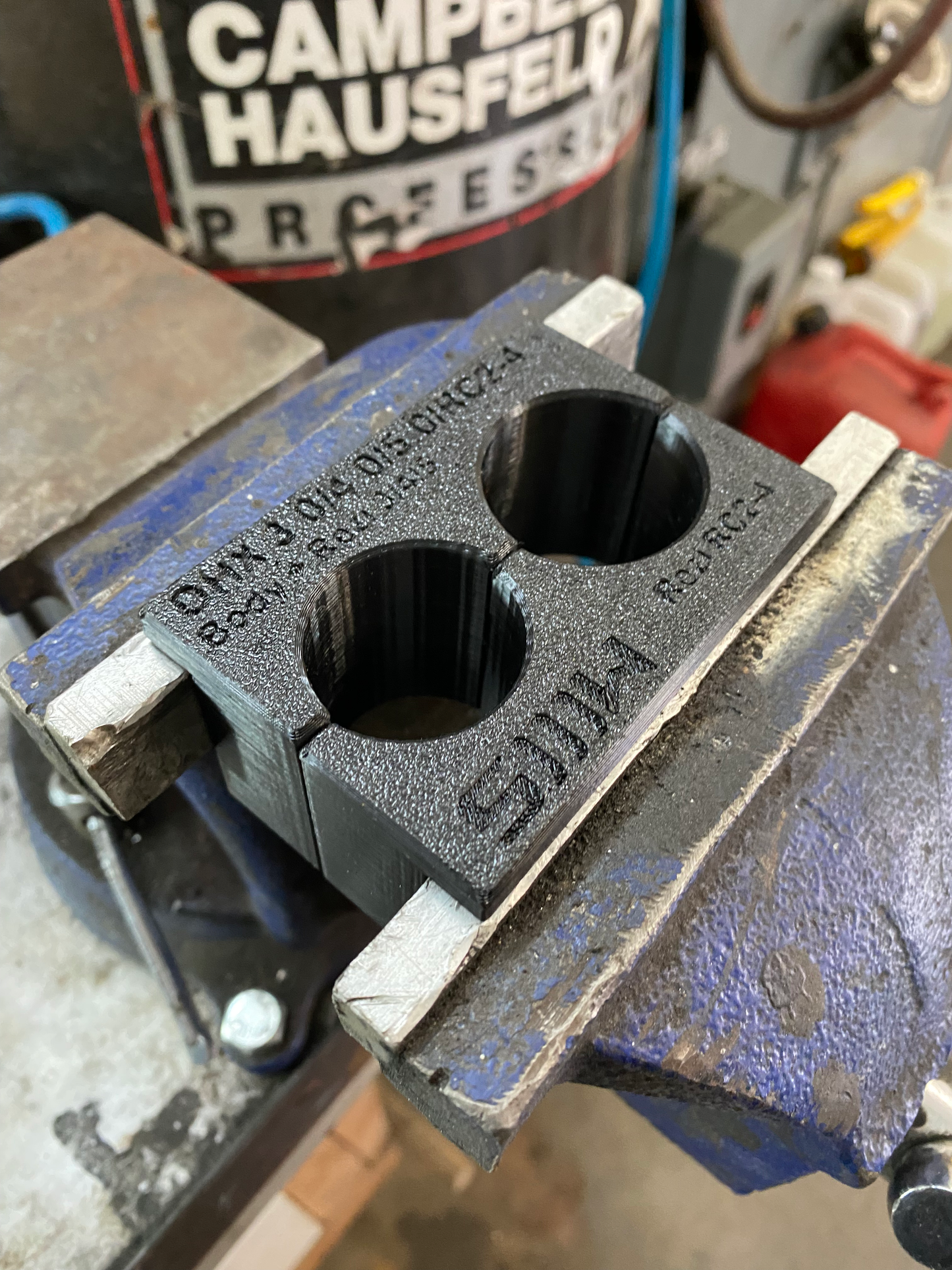

• Securely clamps the outer damper tube.

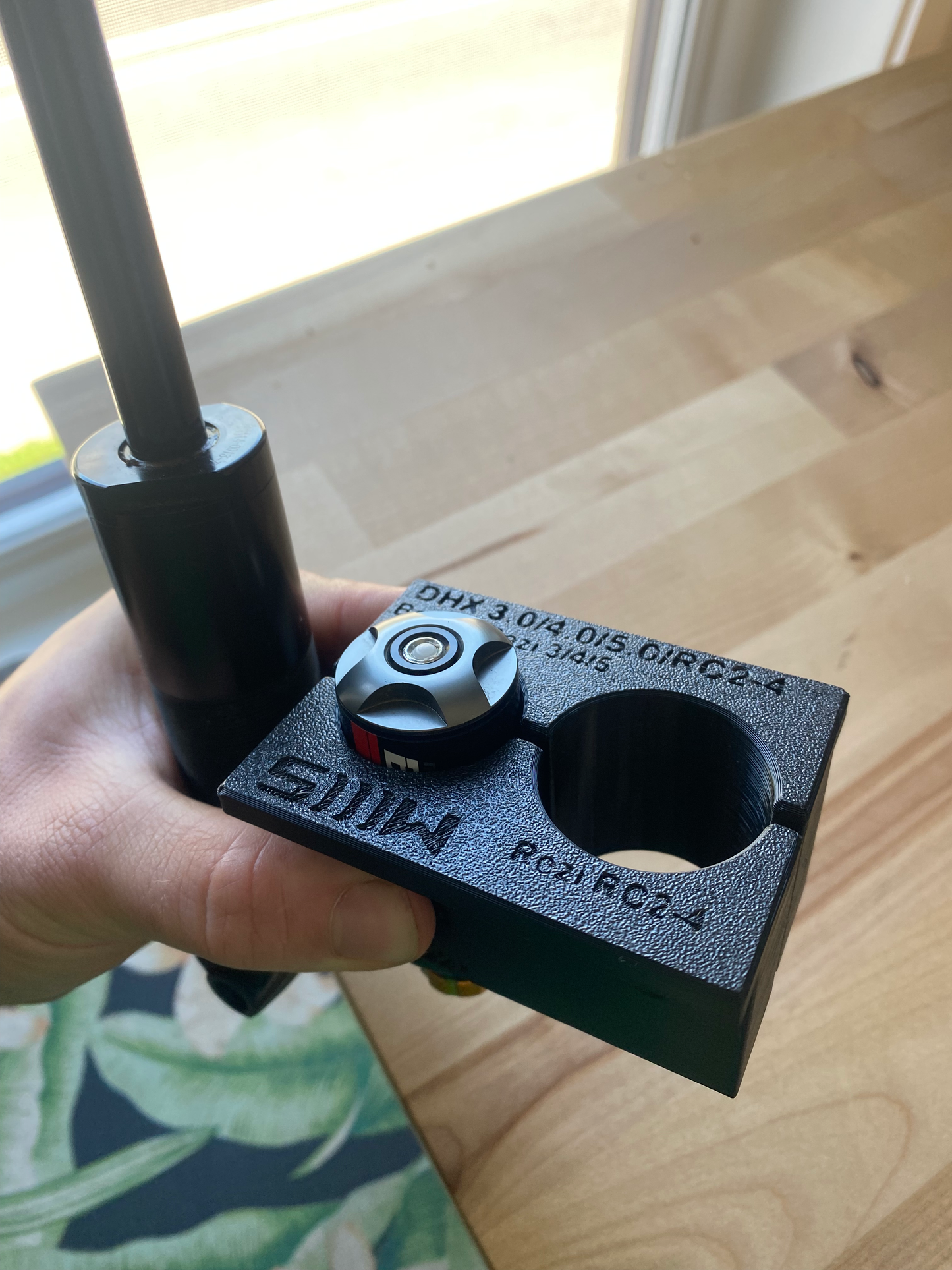

• Securely clamps the reservoir / piggyback.
• Allows controlled opening when repairing external oil leaks.

The clamp uses a single geometry that works for both the body and the reservoir. It is intended for rare, targeted repairs, not routine service.

• Visible oil leaking from the damper body or reservoir.
• The damper tube loosened unintentionally during sealhead removal.
• Repairing known damage to the base valve or reservoir threads.

Most FOX DHX issues come from dynamic components: shaft seals, IFP o-rings, oil condition, or Schrader valves. The damper body and reservoir are static-sealed and rarely fail unless previously over-torqued, opened unnecessarily, or physically damaged.

These parts are factory-sealed with red Loctite. Do NOT open the damper body or reservoir unless they are leaking. If opening is required, heat is mandatory to break the Loctite safely. Opening sealed parts without cause usually creates more problems than it fixes.

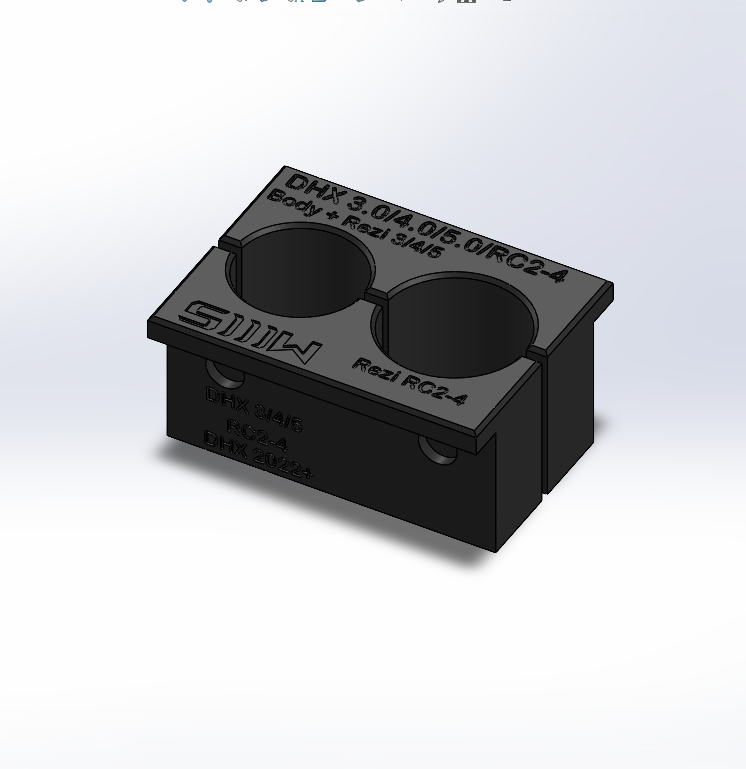

• Damper Body / Reservoir Clamp (dual-use geometry)
• Compatible with FOX DHX RC2, RC4, and all newer DHX coil shocks

• Clean all contact surfaces with isopropyl alcohol.
• Wrap tubes with dry paper towel to increase friction and protect anodizing.
• Clamp gently, thin aluminum tubes can be crushed.

• Do not attempt this operation unless you are certain it is required.

• FOX DHX Shaft Clamp (All Years)
• Graduated IFP Depth Tool
• Luggage Scale Torque Calculator

This clamp is intended for experienced home mechanics performing specific leak repairs. Incorrect use or unnecessary disassembly can permanently compromise the shock. By purchasing, you agree to our Terms of Service.
