FOX DHX Shaft Clamp All Years (1/2" + 5/8")

FOX DHX Shaft Clamp All Years (1/2" + 5/8")

$24.49 CAD
$24.49 CAD
Sale Sold out sorry :(
Shipping calculated at checkout.

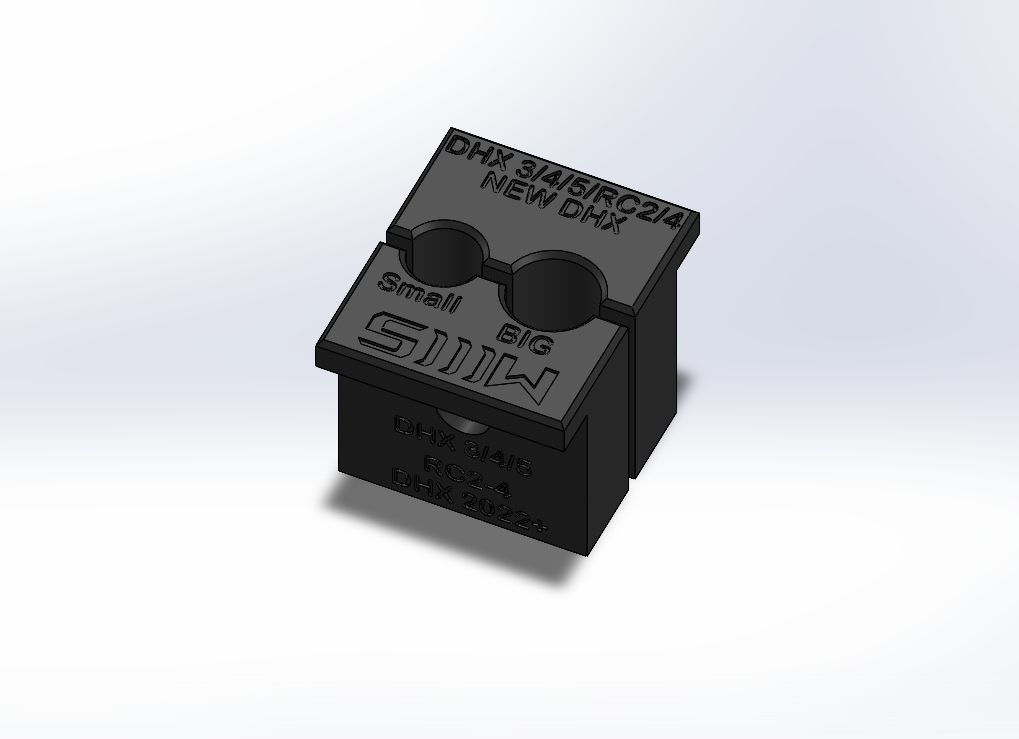

FOX DHX Shaft Clamp – All Years (1/2" + 5/8")

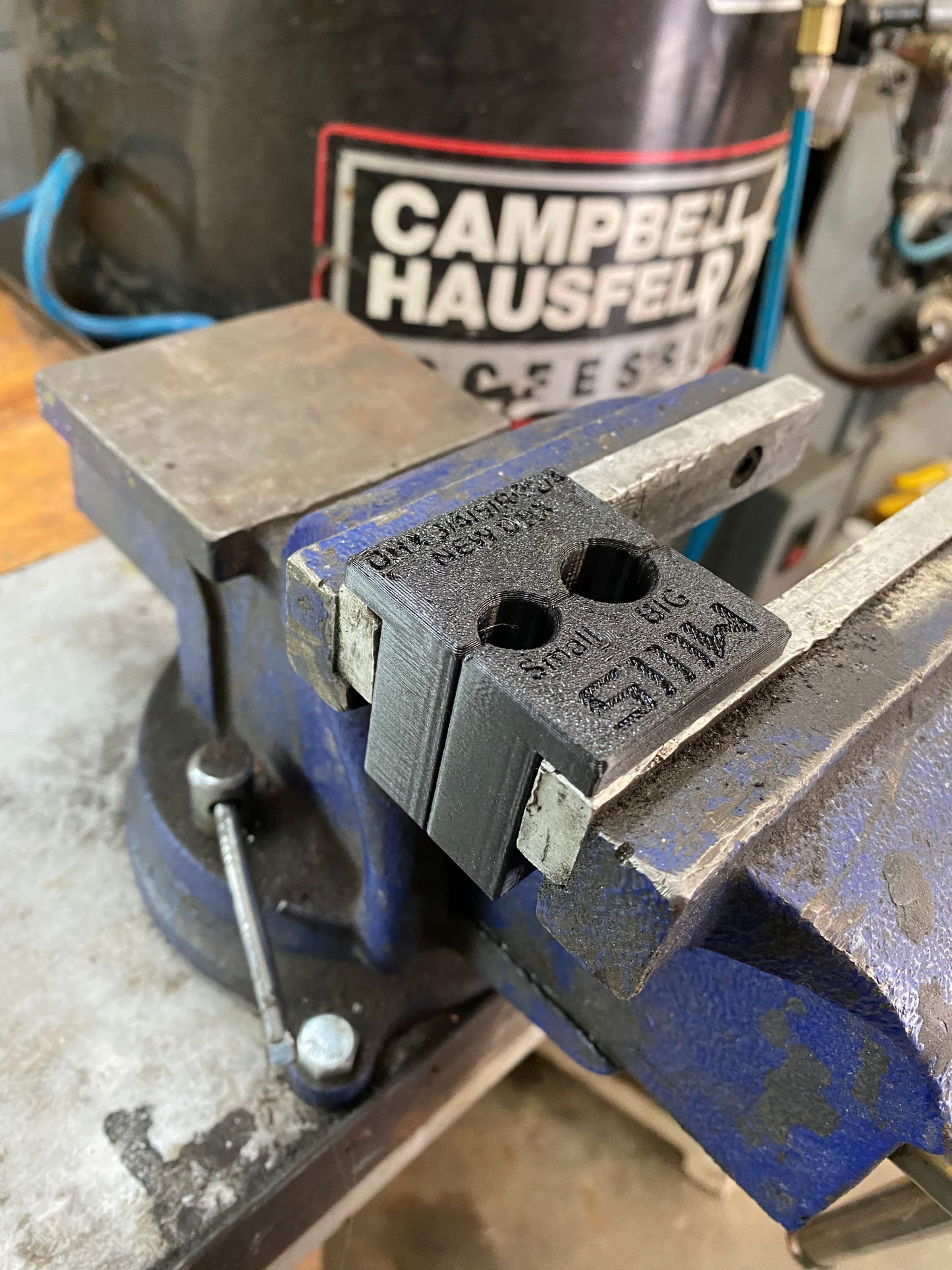

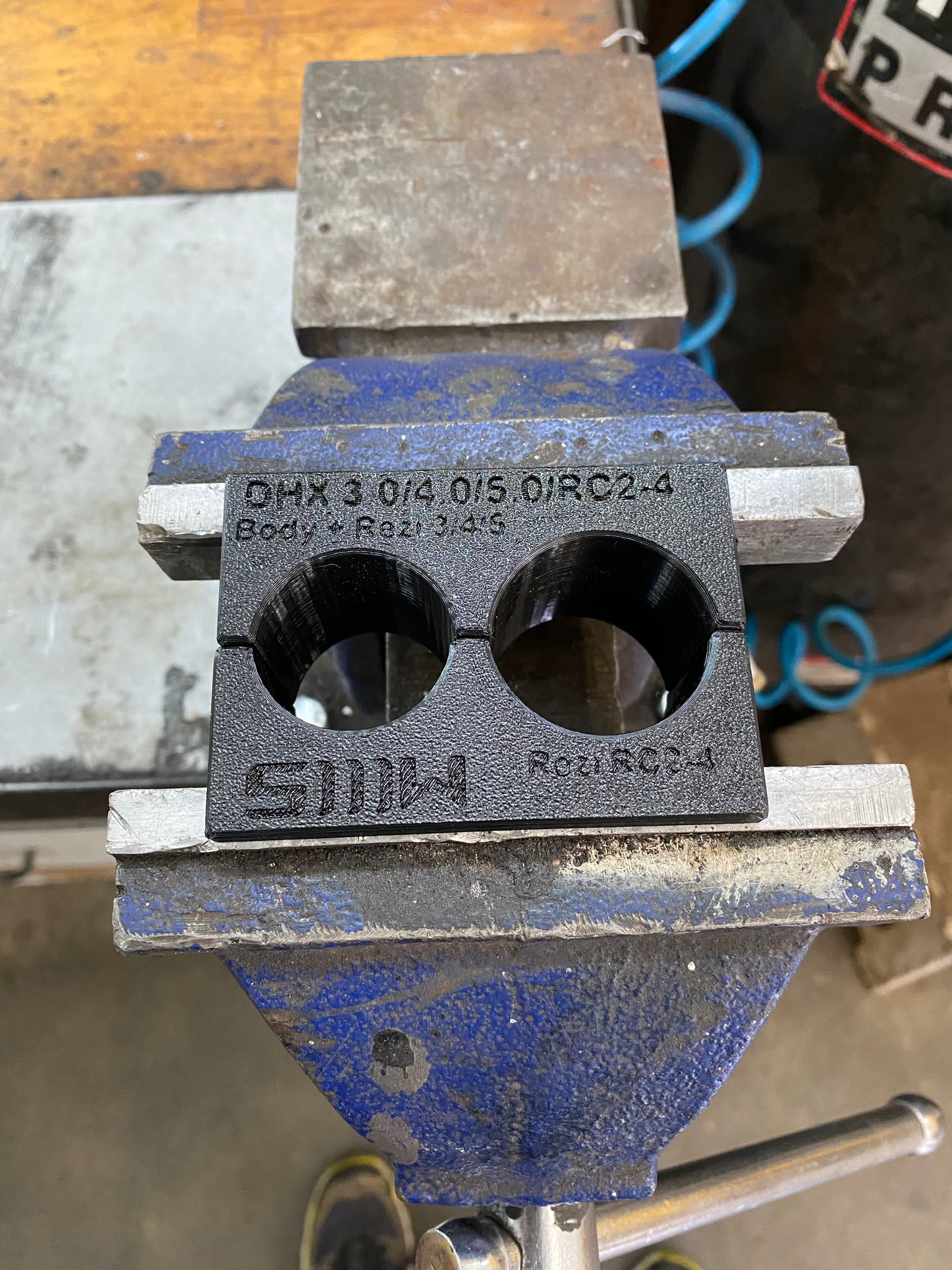

Dual-size shaft clamp for FOX DHX coil shocks, covering both 1/2" shafts and older 5/8" variants (RC2, RC4, VAN RC). Designed to hold the damper shaft in a bench vise during service.

Compatibility
  • FOX DHX (all generations)
  • DHX 3.0 / 4.0 / 5.0
  • DHX RC2 / RC4
  • FOX VAN RC
  • DHX2 2026+

Covers both shaft diameters used across DHX generations: 1/2" (≈12.7 mm) and 5/8" (≈15.8 mm).

What it does
  • Securely clamps the damper shaft in a bench vise.
  • Allows eyelet removal / installation.
  • Provides access to the rebound circuit for inspection or service.

This is the correct way to hold a DHX shaft without marring or crushing it.

When to use this clamp
  • Removing the eyelet for seal or rebound-side service.
  • Rebound feels stuck, too slow, or inconsistent.
  • The eyelet loosened unintentionally during damper work.
Do you need a bullet tool?

No. DHX shafts are large and chamfered. The U-cup seal installs easily by hand. Just pay attention to the seal lips so they don’t fold.

Setup tips
  • Clean the shaft with isopropyl alcohol.
  • Wrap with dry paper towel before clamping.
  • Apply light heat to the eyelet if Loctite is present.
  • Clamp snug only, no need for brute force.
Bleeding tip: No syringe needed. The glove method works very well on DHX thanks to the vertical valve layout.
⚠️ Disclaimer

This tool is intended for experienced home mechanics. Improper clamping or unnecessary disassembly can damage the damper shaft. By purchasing, you agree to our Terms of Service.
