Which RockShox forks is the Motion Control Shaft Clamp 9/16" compatible with?

The RockShox Motion Control Shaft Clamp 9/16" is compatible with all RockShox Motion Control dampers, including older Pike, Lyrik, Reba, SID, Recon, Revelation, 35 Gold/Silver, Sektor, and Judy models. It is not compatible with Charger, Charger 2, Charger 3, or any non-Motion Control damper.

Why does the Motion Control damper shaft require a 9/16" clamp specifically?

The RockShox Motion Control shaft measures approximately 14.3 mm (9/16"). A 14 mm clamp is too loose to grip the shaft securely, and a 15 mm clamp is too large to engage it at all. The 9/16" clamp is the only size that provides full surface contact and prevents shaft spin during mid-valve removal.

How does the RockShox Motion Control Shaft Clamp 9/16" differ from a generic shaft clamp?

Generic shaft clamps are typically available in round metric sizes (14 mm or 15 mm) that do not match the 14.3 mm Motion Control shaft diameter. This 9/16" clamp is sized precisely for that shaft, ensuring full contact grip without damaging the shaft surface. It is also 3D printed specifically for this application rather than adapted from a general-purpose tool.

How do I use the RockShox Motion Control Shaft Clamp 9/16" correctly?

Clean the Motion Control shaft with isopropyl alcohol before clamping. Wrap the shaft with one layer of paper towel if additional protection is needed. Seat the clamp with full surface contact, then apply vise pressure gradually — the clamp provides the grip, so do not over-tighten the vise.

What tools or supplies pair well with the RockShox Motion Control Shaft Clamp 9/16"?

Isopropyl alcohol and clean towels are needed to prep the shaft before clamping. Slickoleum or SRAM Butter is recommended for lubrication during the rebuild. For a complete service, the RockShox Motion Control Damper Rebuild Kit and the RockShox Motion Control + Air Shaft Rebuild Kit are available from Shockwave Parts and are designed for use alongside this clamp.

1 2

Shockwave Parts

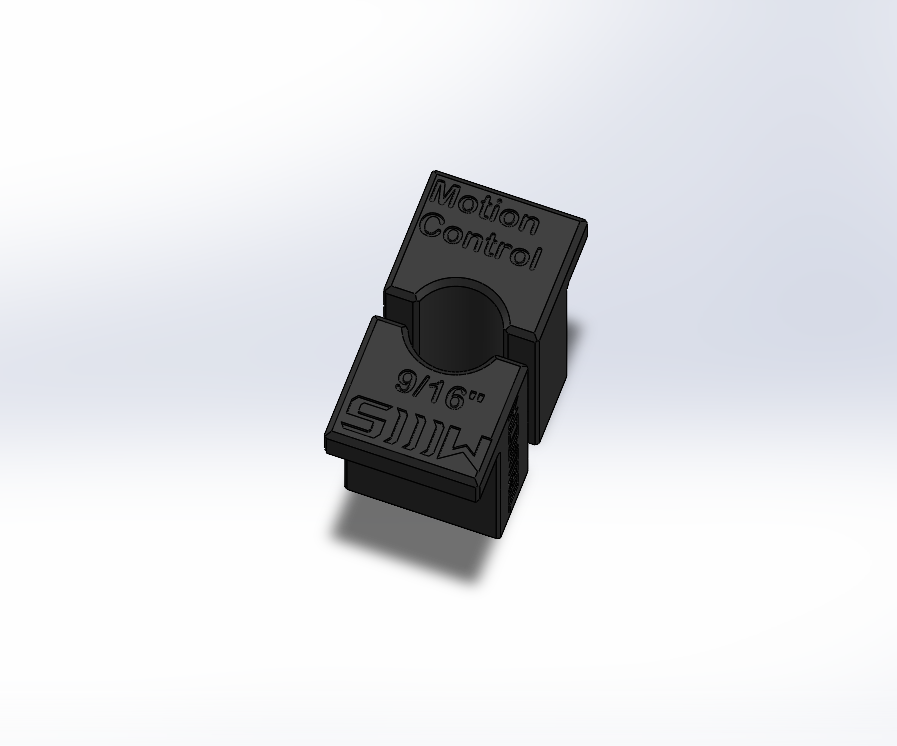

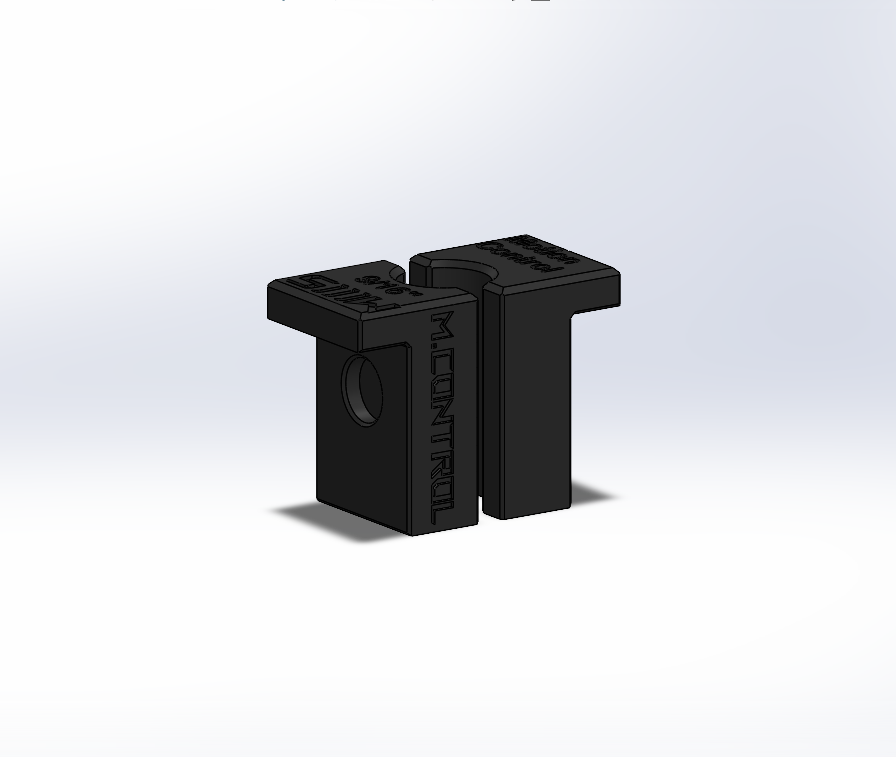

RockShox Motion Control Shaft Clamp 9/16"

Name: RockShox Motion Control Shaft Clamp 9/16"
Brand: Shockwave Parts
Price: 25.49 CAD
Availability: InStock

$25.49 CAD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

RockShox Motion Control Shaft Clamp (9/16")

Clamp de précision 9/16" (~14,3 mm) conçue spécifiquement pour les dampers RockShox Motion Control. Les autres tailles de clamp ne tiennent pas correctement. Celle-ci est la bonne.

Note d’ajustement et de taille

Le shaft Motion Control mesure 14,3 mm (9/16").
• Les clamps 14 mm sont trop lâches
• Les clamps 15 mm sont trop grandes

Cette clamp 9/16" est la seule qui marche correctement.

Avertissement d’utilisation

Toujours nettoyer le shaft avec de l’alcool isopropylique avant de serrer.
Enrouler une seule couche de papier essuie-tout au besoin.
Ne pas trop serrer l’étau. La clamp fait le travail.

Guide : Comment serrer les petits shafts

Fonction

Maintient solidement le shaft Motion Control
Empêche la rotation lors du retrait du mid-valve et du côté rebound
Évite les dommages causés par les mâchoires d’étau ou une mauvaise taille de clamp

Compatibilité

Tous les dampers RockShox Motion Control
Présent sur : anciens Pike, Lyrik, Reba, SID, Recon, Revelation, 35 Gold/Silver, Sektor, Judy, etc.
Non compatible avec Charger, Charger 2/3 ou tout damper non Motion Control

Outils pouvant être requis

Slickoleum / SRAM Butter
Alcool isopropylique et linges propres

Disclaimer

Toujours serrer avec un contact complet sur toute la surface et appliquer la pression graduellement.
Usage amateur uniquement. Voir Terms of Service
