• Damper shaft size: 1/2" (12.7 mm)
• Marzocchi Bomber CR
• FOX VAN coil shocks (older generations)

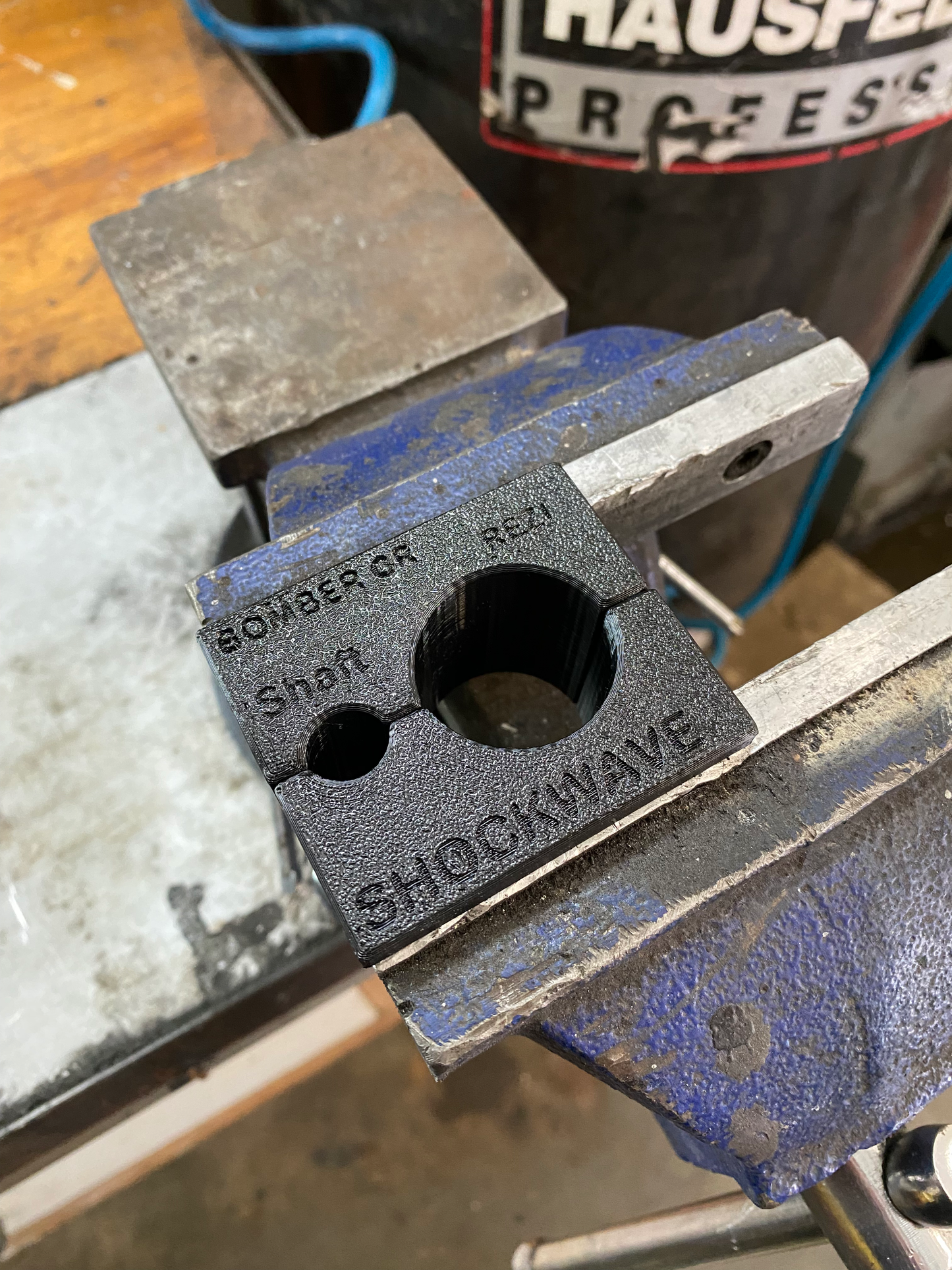

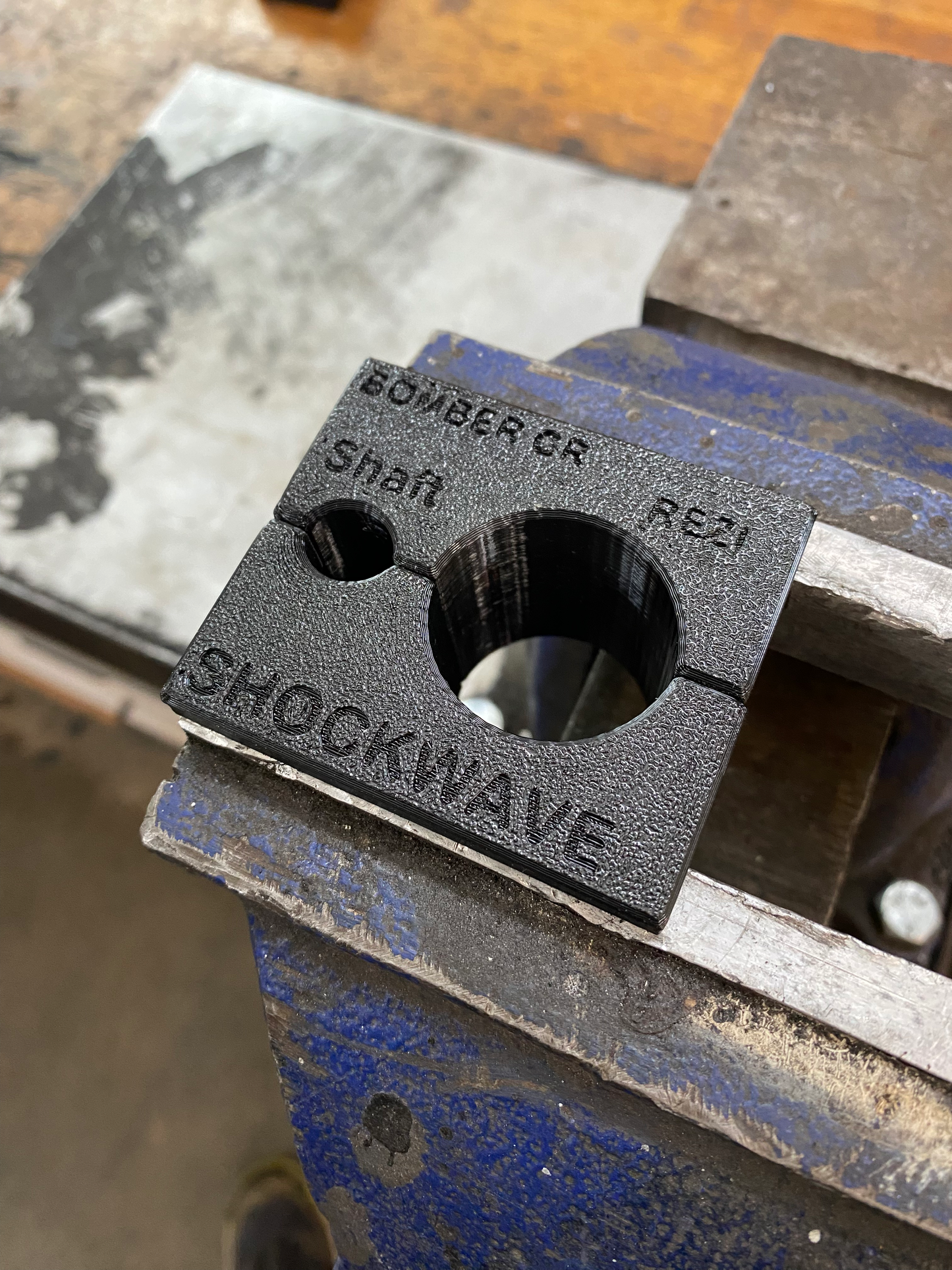

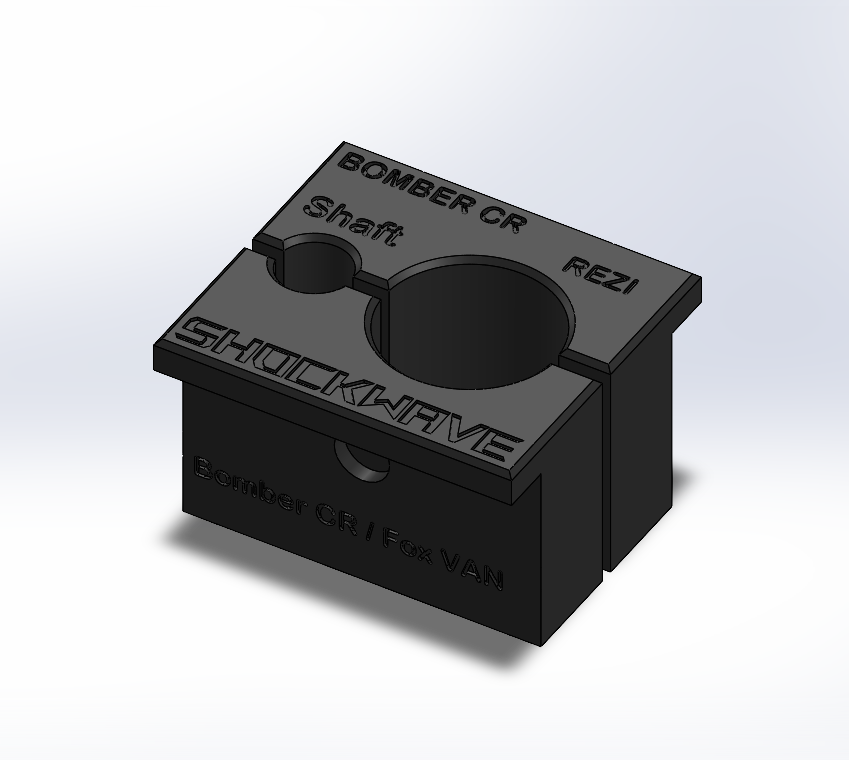

• Acts as a 3-in-1 clamping solution for Bomber CR and FOX VAN shocks.

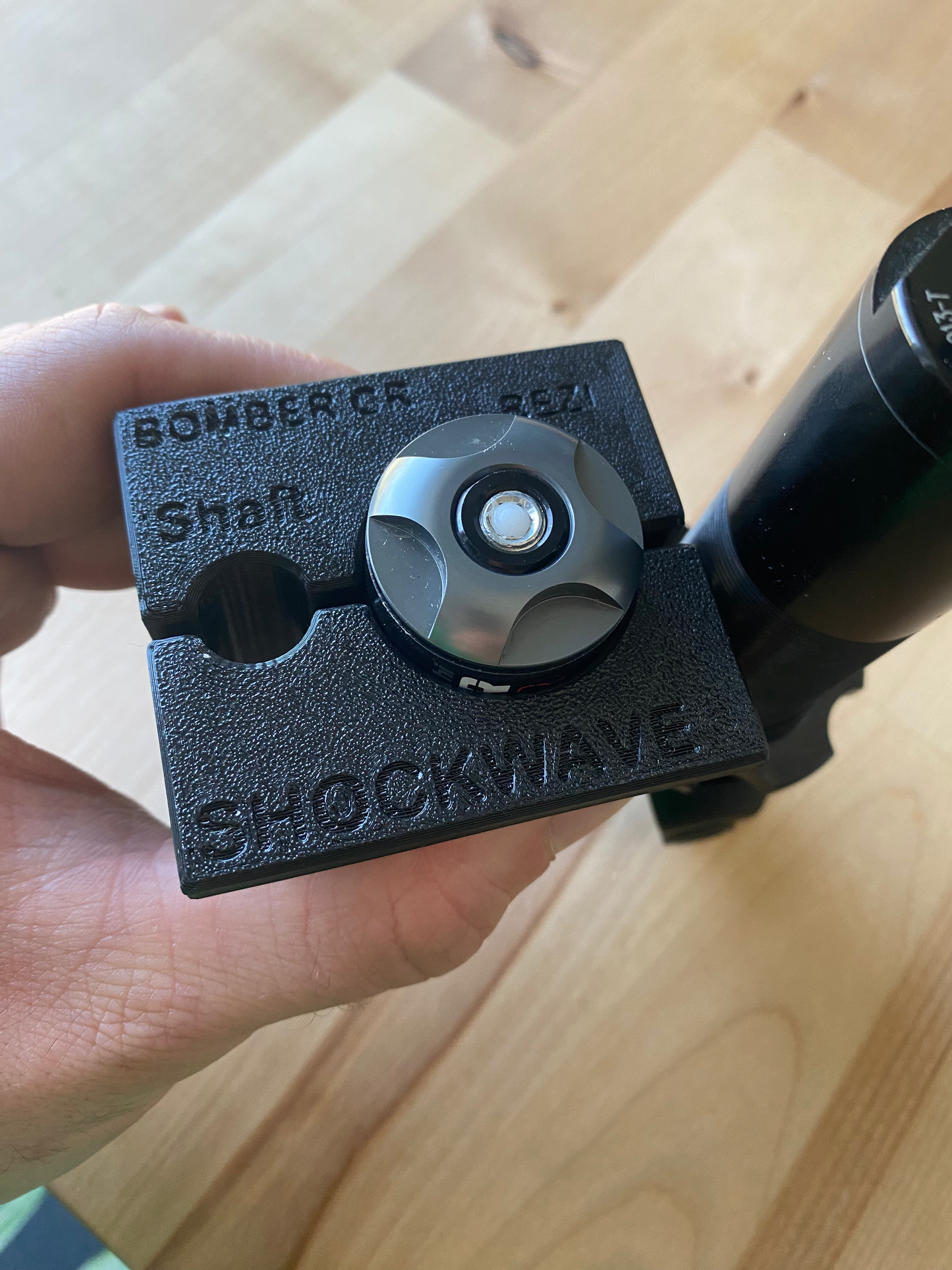

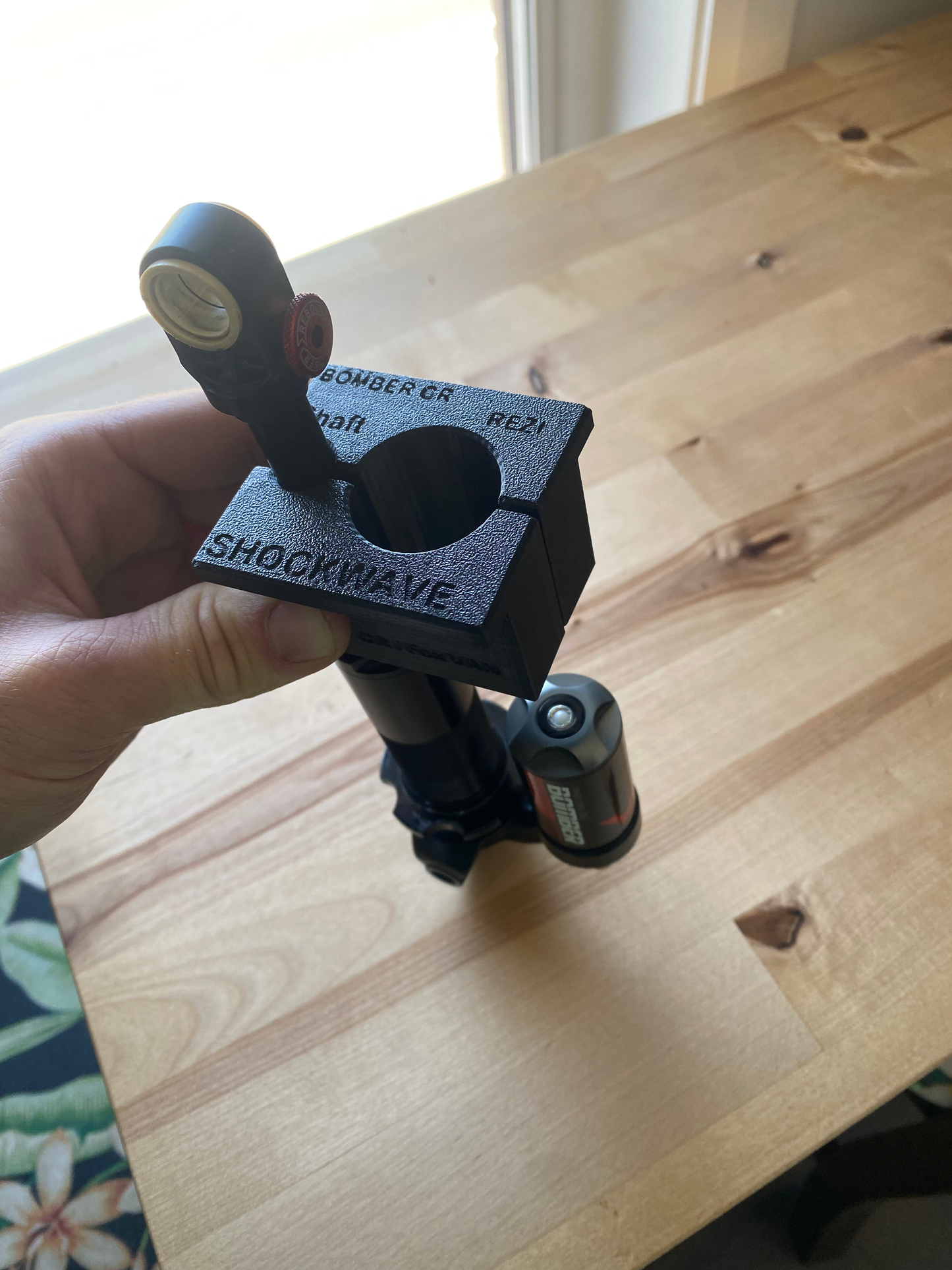

• 1/2" shaft clamp for damper shaft and eyelet service.
• Damper body clamp for holding the main shock body when required.
• Piggyback / reservoir clamp using the same body clamp geometry.

In practice, this gives you every clamp you could ever need on these shocks: shaft, body, and reservoir, all covered in a single kit, without redundant tools.

• Most issues come from dynamic seals.
• Rebound problems are usually fixed by proper bleeding and IFP setup.
• If you’re refreshing seals only, the piggyback should stay closed.

The piggyback and damper body are static-sealed with red Loctite. Do NOT open them unless they are actively leaking. Opening sealed parts without cause usually creates more problems than it fixes.

• Clean the shaft or reservoir with isopropyl alcohol before clamping.
• Wrap with dry paper towel to improve grip and protect surfaces.
• Apply heat when Loctite is present (eyelet or piggyback).
• Snug in the vise only, do not overtighten.

• Graduated IFP Depth Tool
• Luggage Scale Torque Calculator
• Essential Tools Starter Pack

This tool is intended for skilled home mechanics. Improper clamping or opening sealed components can permanently damage the shock. By purchasing, you agree to our Terms of Service.
