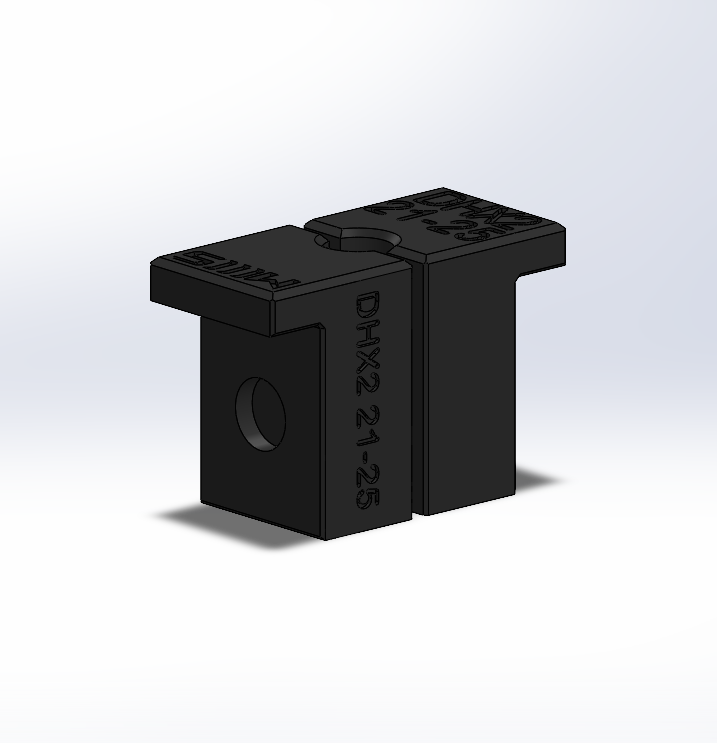

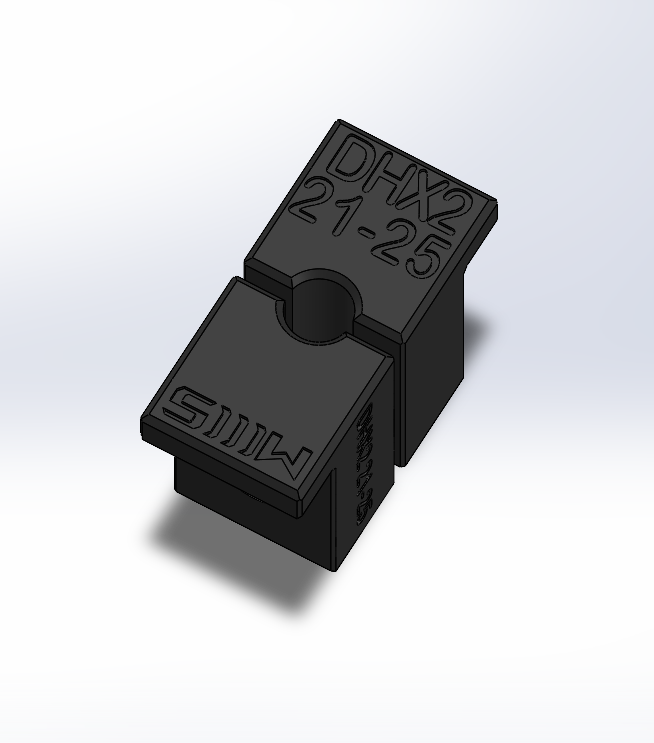

Fox DHX2 2021–2025 Shaft Clamp (Small Shaft)

Designed specifically to clamp the small damper shaft found on Fox DHX2 shocks from 2021 to 2025.

This generation had the lockout lever on the piggyback instead of on the compression lever. Also, the high speed rebound is on the eyelet.

What It Does

This clamp is made to grip the small damper shaft securely in your bench vise during service, especially when removing or reinstalling the eyelet. The inner bore is perfectly matched to the diameter of the Fox DHX2 2021-2025 shaft, with tolerances down to 0.01 mm.

• Only fits 2021-2025 DHX2: it will not work with 2016-2020 and the New Monotube 2026+ versions.
• Made of reinforced PETG for strength and minimal risk of shaft damage.
• Internal ribs lock the shaft in place to prevent rotation under torque.

Important Setup Instructions

Clamping small shafts requires extra care. Always wrap the shaft in paper towel to maximize friction and avoid slippage. Never clamp dry or with oil on the surface. Always clean it well multiple times with isopropyl alcohol.

👉 Read the full shaft clamping manual

Bundle Options

You can select from the following options when ordering:

• 2021–2025 only: for riders who only need to service this generation.
• add a 2016 to 2020: If you also want that generation.
• All DHX2 Years Clamp: includes the additional larger shaft clamp for 2016-2020 and the new 2026+.

You May Also Need

• Fox DHX2 2021-2025 Full Rebuild Kit that will also include the other tool you will need and it's cheaper to buy them together.
• Luggage Scale Torque Calculator

Disclaimer

⚠️ These tools are designed for home mechanics. Improper clamping or over-torquing can damage your damper shaft. Always follow the proper procedure. By purchasing this clamp, you agree to our terms of service.
