DB CS Air 3-Pin Sealhead Socket | Cane Creek Shock Tool

 What It Does

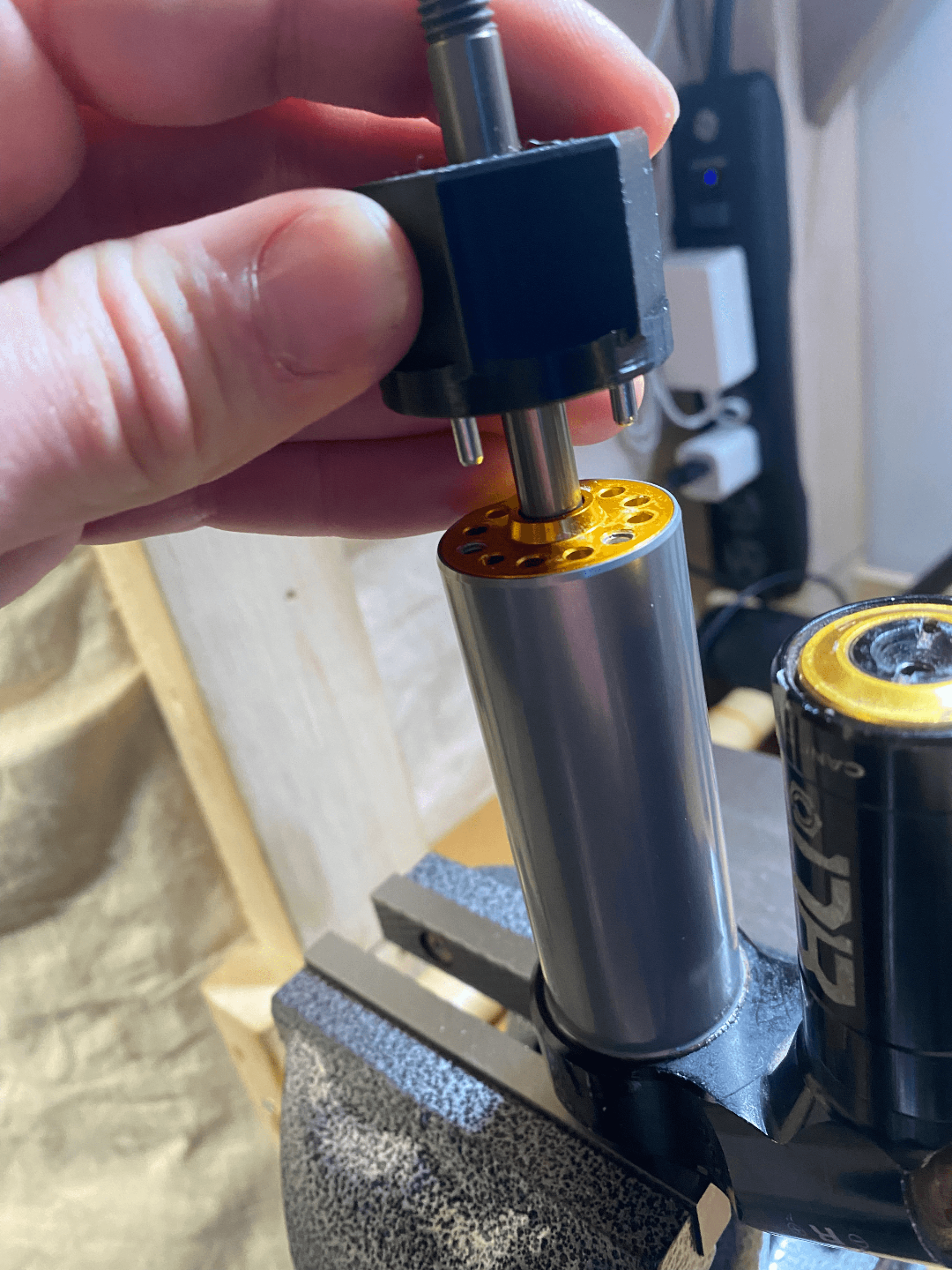

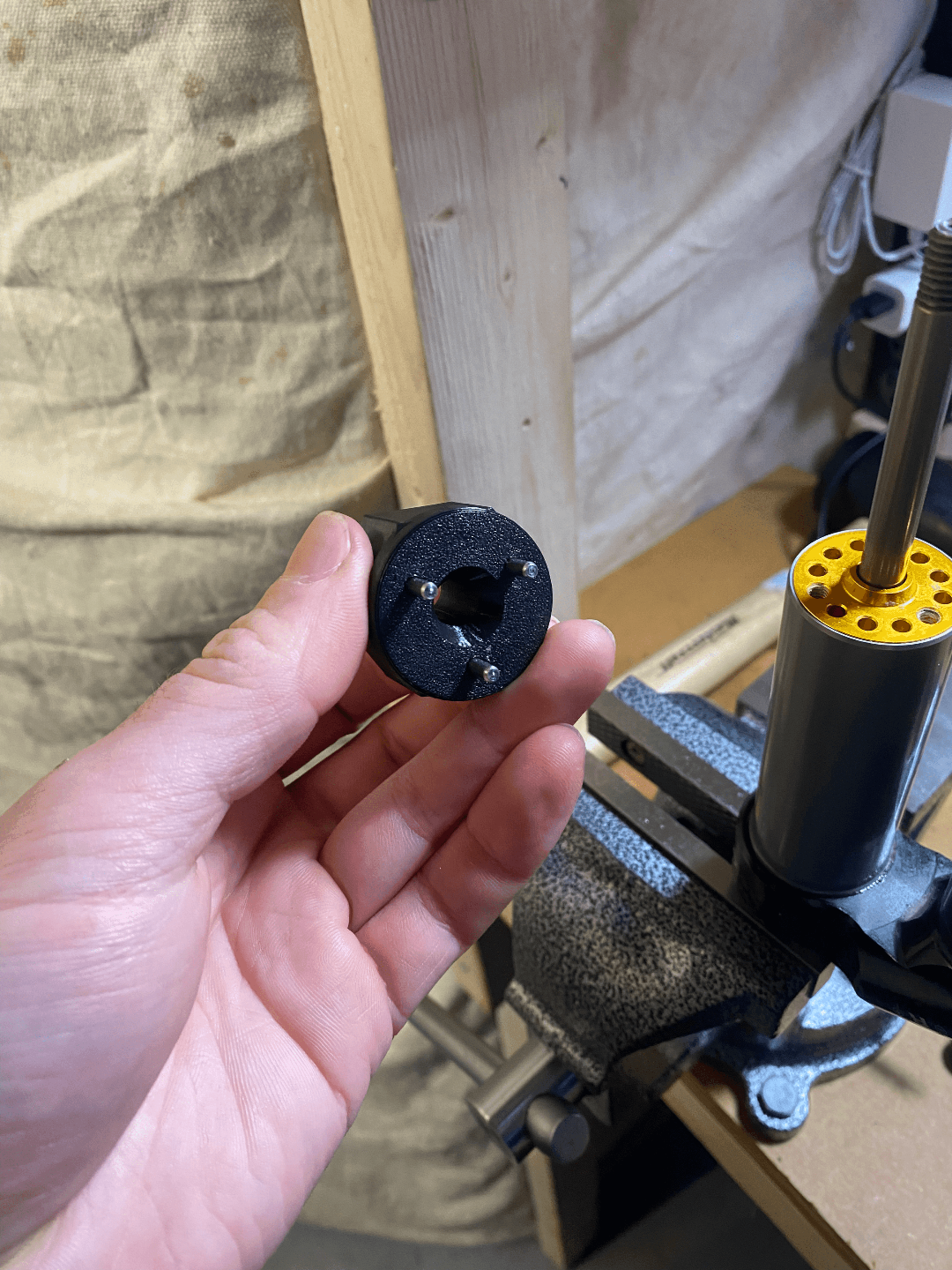

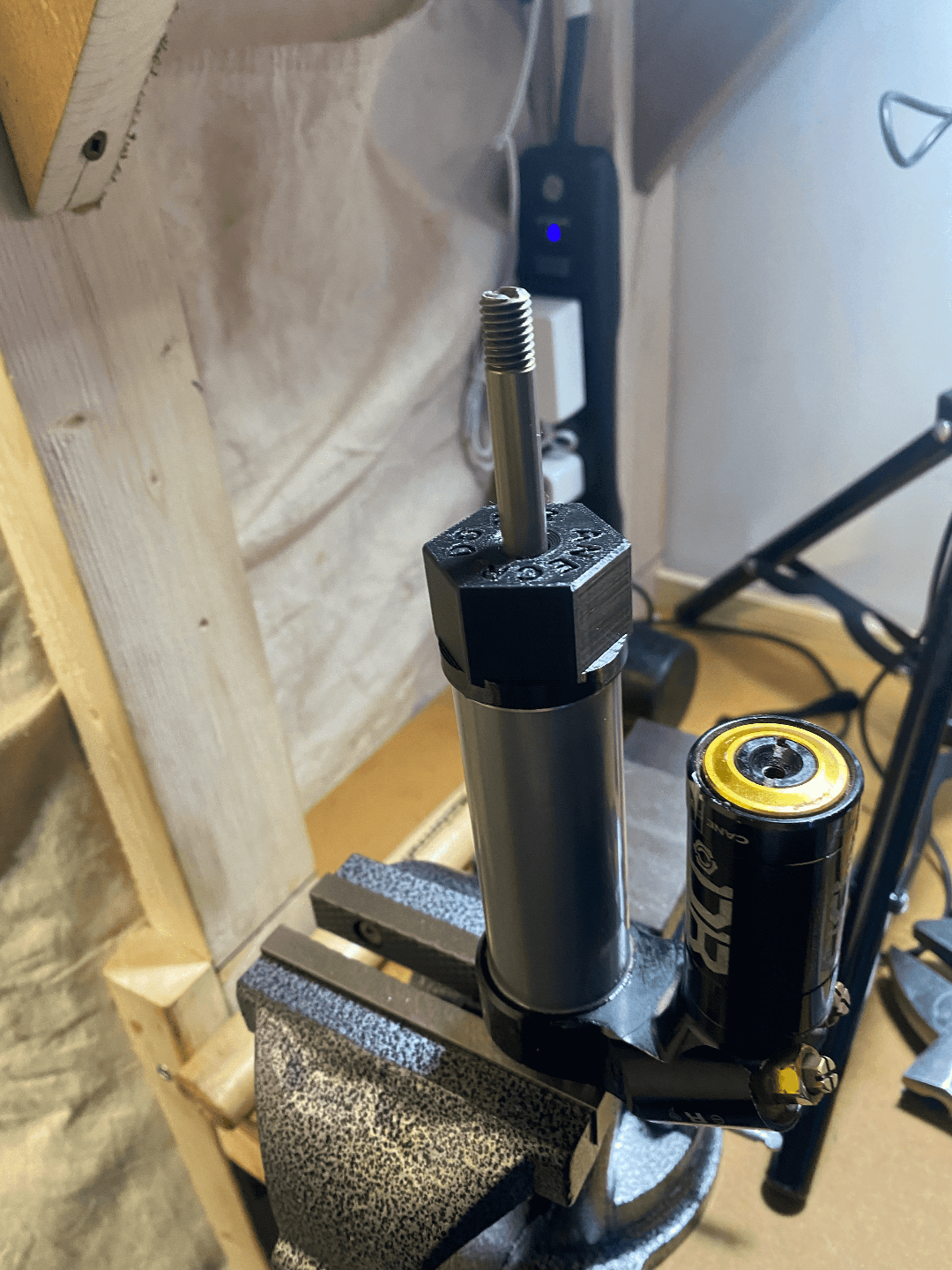

This tool removes the 3-hole sealhead cap on the Cane Creek Double Barrel CS Air shock. It's essential for performing a full damper rebuild or even just opening the shaft assembly safely.

This is not a universal 3-pin socket. The DB CS Air uses a larger bolt circle and thicker wall than Inline Air models, so this tool is shock-specific.

 Fit Notes

• Only fits Cane Creek DB CS Air : not compatible with Kitsuma, IL, or Coil versions.

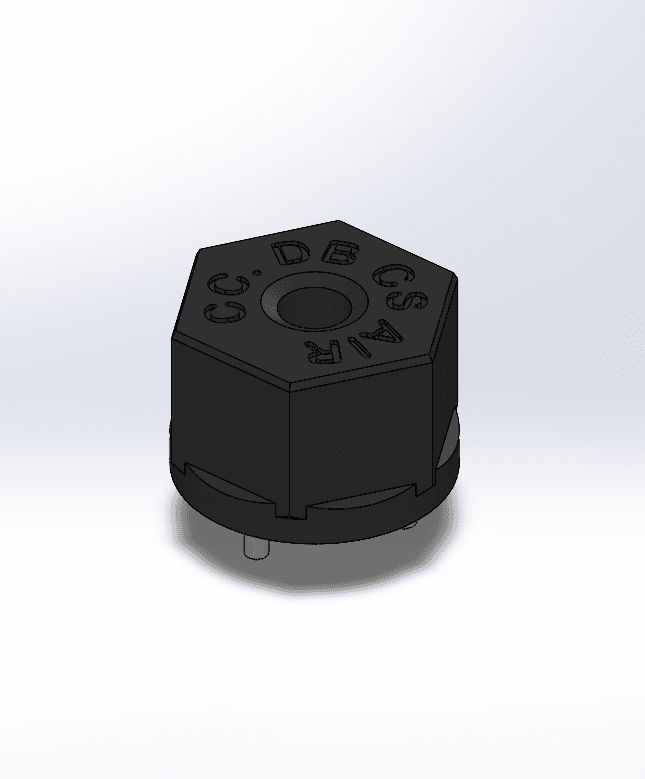

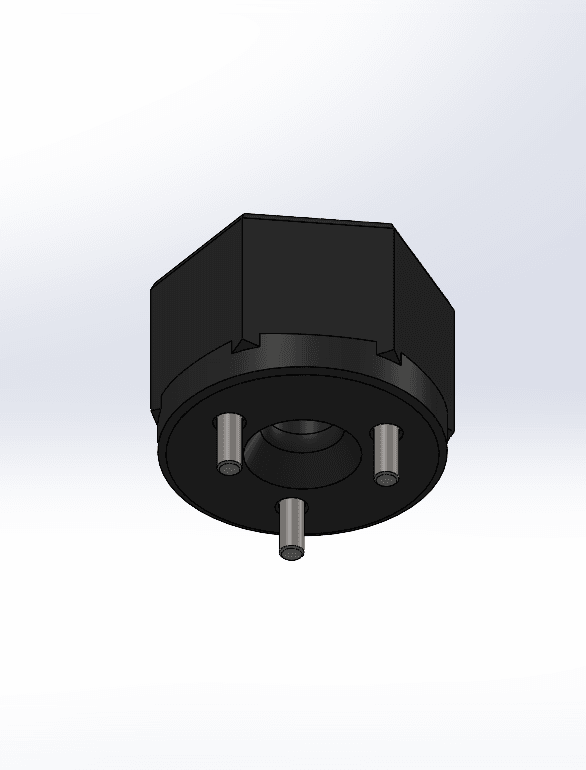

• 3 stainless steel pins pressed into reinforced plastic for durability.
• Always use the holes that are not threaded. Do not torque into the thread holes!
• Use a 32mm or adjustable wrench for torque, low torque (~12–15 Nm) is required.

 Pro Tip

If you already have a Park Tool SPA-2 pin spanner, you might not need this tool, but this socket is faster, safer, and fits perfectly with no risk of slipping.

 Pairs Great With

• DB CS Air Full DIY Rebuild Toolkit
• 8mm Horizontal Wide Shaft Clamp
• Graduated IFP Depth Tool
• Needle Fill Tool Guide

⚠️ Safety & Disclaimers

• Always depressurize both the air spring and damper before use
• Ensure full pin engagement before applying torque, misalignment may damage the tool or the sealhead
• Designed for home mechanics, use only if you are confident in your skills
• Refer to the official Cane Creek service manual and our tool manuals before starting
• By using this tool, you agree to our Terms of Service
