Fixed-Length Rear Shock Dummy

Available Length Ranges

Standard Eyelet: Works for any eye-to-eye between 190 mm and 250 mm (M10 eye, adapters for M8/M6 included).

Trunnion: Works for any trunnion length between 165 mm and 225 mm (two independent M10 bolts).

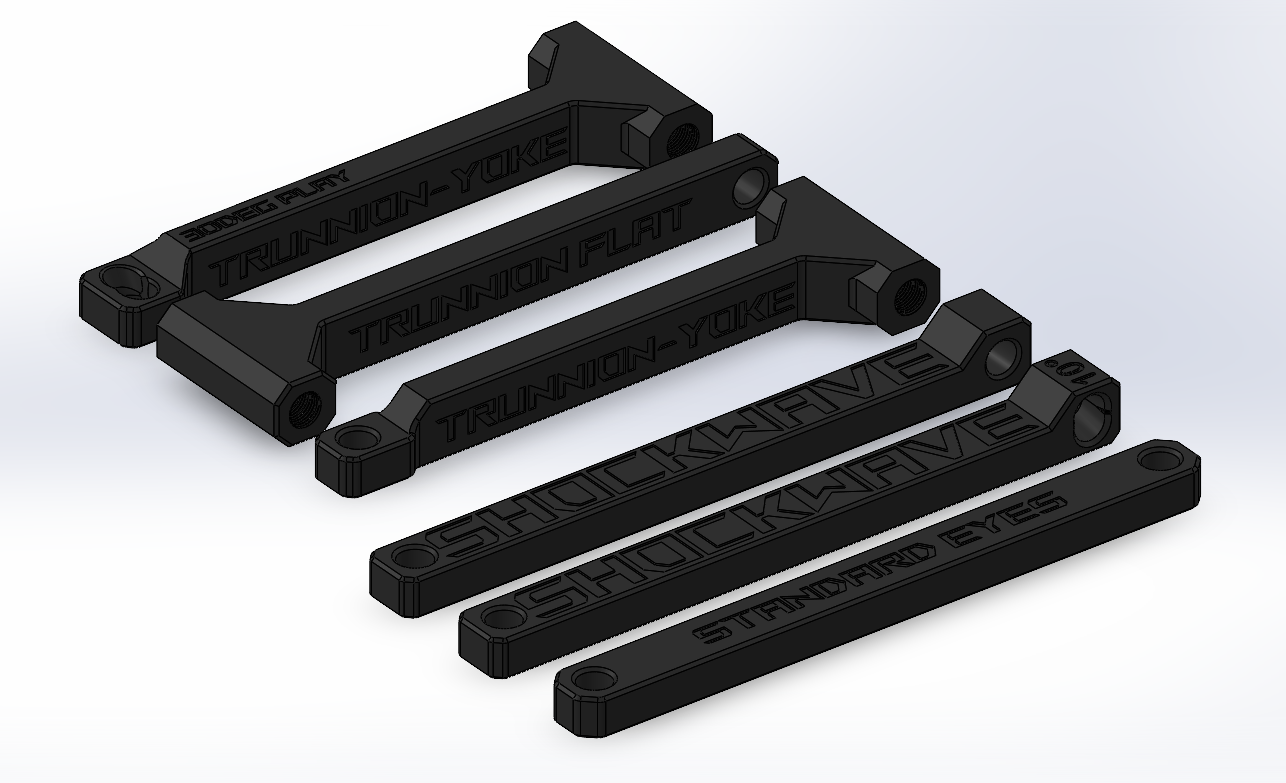

Mount Options

Standard Eyelet Versions

• Straight: For most frames using standard hardware.
• Yoked: For frames where the shock attaches to a yoke.
• Angled Offset Eyes: For frames requiring angled eyelets.

Trunnion Versions

• Normal Trunnion: Standard M10 bolt on each side.
• Yoked Trunnion: For trunnion shocks attached to a yoke.

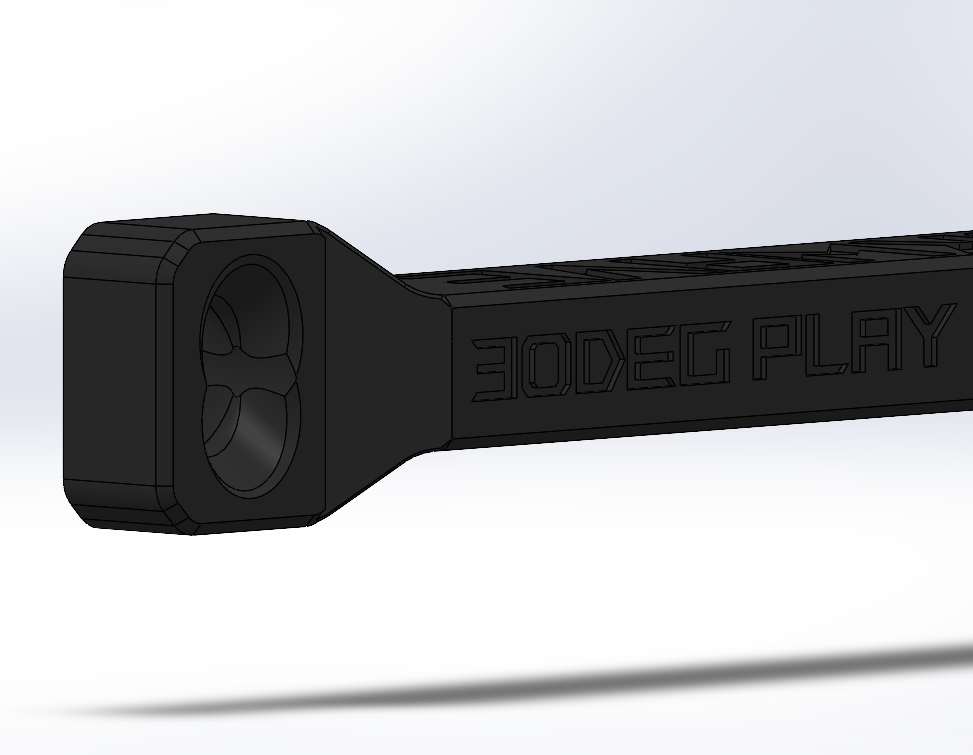

• Yoke-Angled Trunnion: Provides 30° of angular play to fit frames with diagonal or non-parallel trunnion mounts.
• 15 mm Giant Version: Compatible with oversized trunnion hardware (e.g., Giant).

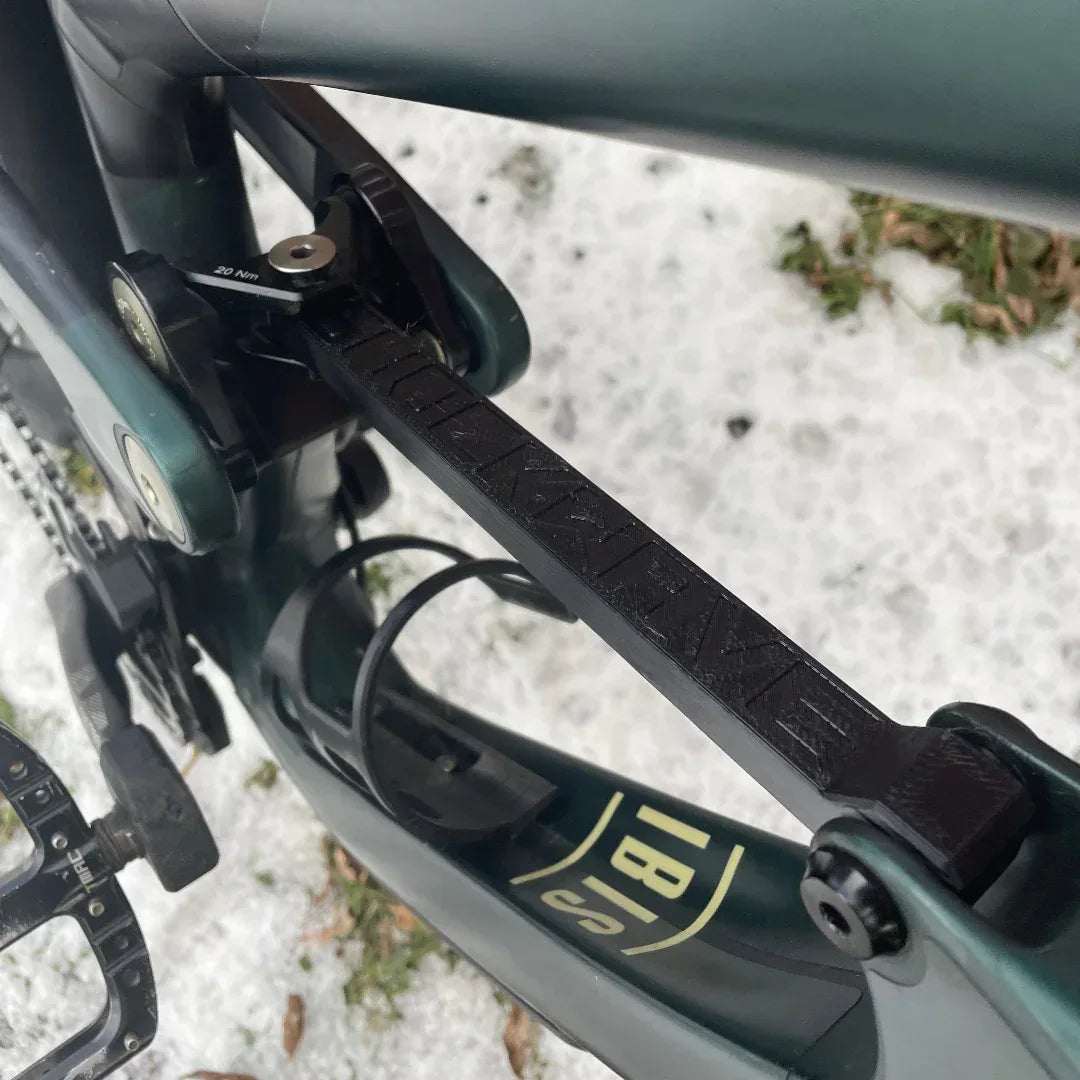

The Fixed-Length Dummy Tool is a rigid spacer that replaces your rear shock during:

• Suspension service
• Drivetrain cleaning
• Bike transport
• Storage
• Maintenance when removing the shock is required

Each model is printed in one piece for maximum stiffness and reliability, with optional adapters to match your hardware.

• One Fixed-Length Dummy Tool (Standard Eyelet or Trunnion)
• M8 + M6 adapters (Standard Eyelet only)
• Your selected mount type: Straight, Yoked, Offset, or Trunnion variants
• The M8 + M6 adapters are not included in the Trunnion Yoke crooked version.

Digital STL Pack Option exists!

Includes every fixed-length configuration. Ideal for riders with 3D printers who want to print multiple setups as needed.
