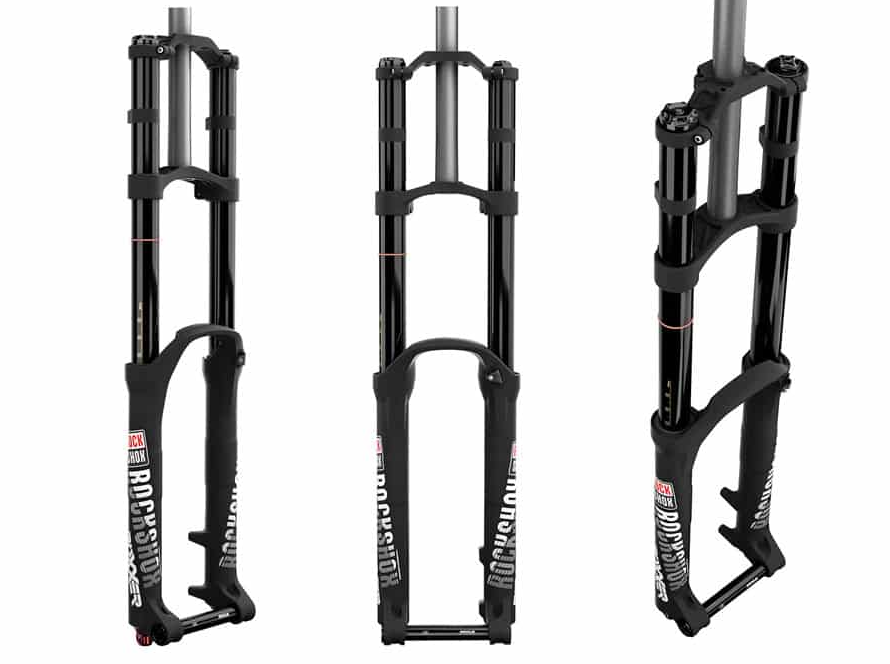

RockShox Boxxer 2015–2018 DIY Damper Rebuild Kit (RC & Team)

Everything you need to safely hold and open your Boxxer fork for damper service. Includes a 35mm stanchion clamp so you can safely remove the fork from the bike and actually hold it in a bench vise, essential for this job.

What's Included

• 35mm Shaft Clamp : safely holds the Boxxer stanchions for damper service

Optional Add-On

• 10mm Shaft Clamp : only needed if you're revalving the Boxxer Team Charger damper

What You Need

• A full set of open-end wrenches/spanners
• Circlip pliers and long picks
• Torque wrench or luggage scale setup
• Good lighting and patience, lots of small parts inside

Oil Volume Notes

Boxxer RC uses a huge amount of oil for the open-bath system, about 290 mL of damper oil.

• See oil volumes here
• Always double-check your fork year and configuration

Clamp Tips

• Use the 35mm clamp on the stanchion so you can torque the damper body out
• Do not clamp the damper body directly without the 35mm shaft clamps, it’s too fragile
• If revalving the Charger mid-valve, use the 10mm clamp on the damper shaft

Manuals & Guides

• 2011 Boxxer R2C2 Manual (PDF)
  • For the Oil level, get a measuring tape and it should be 173mm from the top instead of a volume in mL.
• Boxxer RC Manual (PDF)
• Boxxer Team Manual (PDF)
• Velodrop Oil Chart
