Which FOX shock models is the FOX FLOAT X Sealhead Pin Socket (2022+) compatible with?

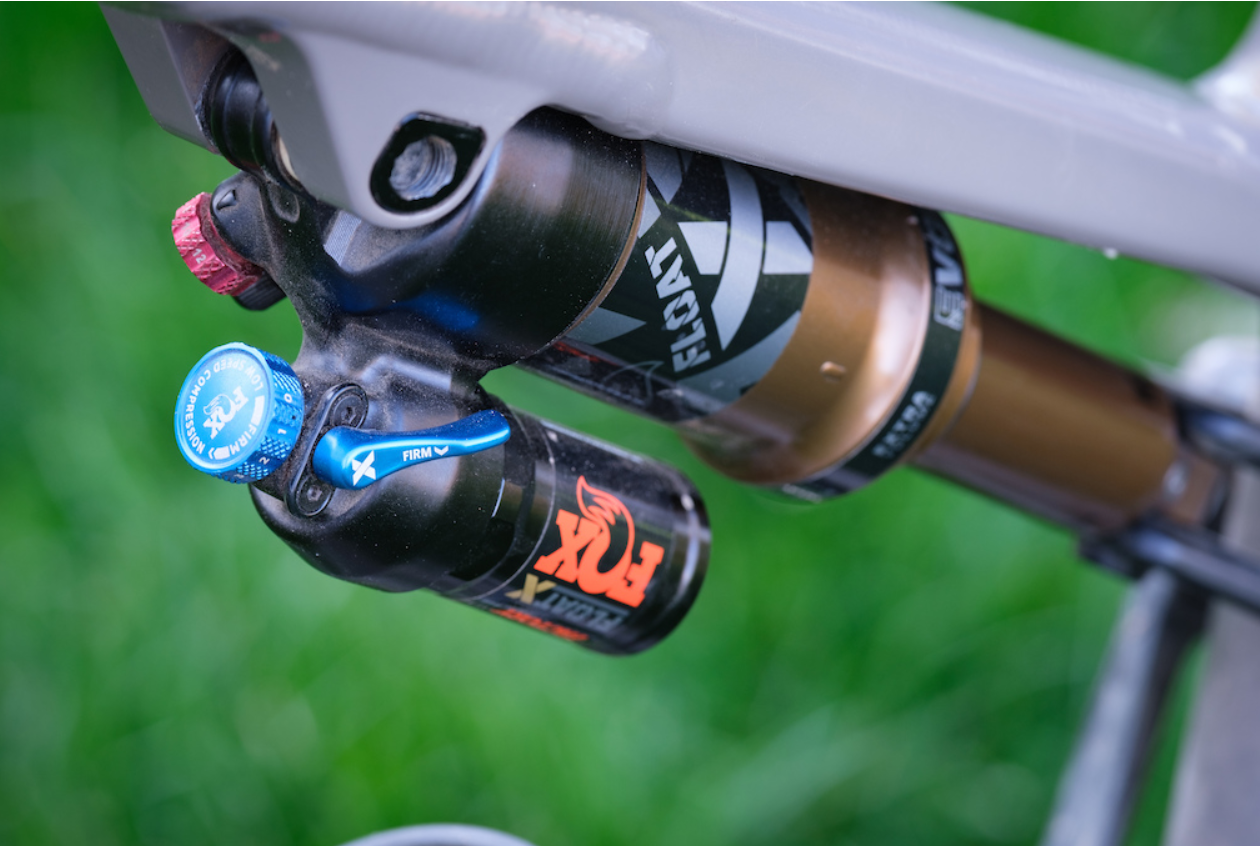

The FOX FLOAT X Sealhead Pin Socket (2022+) fits FOX FLOAT X shocks made in 2022 and later, and the Marzocchi Bomber Air. It is not compatible with the FOX DPX2 or any other FOX shock models. Verify your shock model year before ordering.

Does the FOX FLOAT X Sealhead Pin Socket work for all FLOAT X travel lengths?

For FLOAT X shocks with 47.5–75 mm of travel, this pin socket is required to remove the sealhead bearing housing. For shorter travel variants (37.5–45 mm), the travel spacer plate must be removed first and a standard 32 mm wrench is used instead. The pin socket is not needed for the 37.5–45 mm range.

How does the FOX FLOAT X Sealhead Pin Socket differ from a generic splined socket or adjustable pin wrench?

Generic splined sockets and adjustable pin wrenches apply uneven load and risk rounding or bending the soft aluminum engagement tabs on the FLOAT X bearing housing. This socket engages both pins simultaneously with even load, preserving tab geometry across repeated rebuilds. It also accommodates the luggage scale torque method since no 3/8″ drive is used.

What shipping options are available to Canada for the FOX FLOAT X Sealhead Pin Socket?

Tracked shipping within Canada starts at $8.49 CAD, with a maximum of $14.99 CAD. Orders over $89 CAD qualify for free shipping. The tool ships from Canada with fast order processing, typically within 1 business day of purchase.

Who should use the FOX FLOAT X Sealhead Pin Socket, and are there any safety requirements before using it?

This tool is intended for experienced home mechanics performing DIY rebuilds on FOX FLOAT X shocks — it is not rated for high-volume shop use. Before opening the air can, fully release both air spring and damper pressures. Apply slow, even torque; if the housing resists, apply heat rather than forcing it, as the threads are shallow and soft.

1 3

Shockwave Parts

FOX FLOAT X Sealhead Pin Socket (2022+)

Name: FOX FLOAT X Sealhead Pin Socket (2022+)
Brand: Shockwave Parts
Price: 39.49 CAD
Availability: InStock

$39.00 CAD

Sale Sold out sorry :(

Shipping calculated at checkout.

FOX FLOAT X Sealhead Pin Socket (2022+)

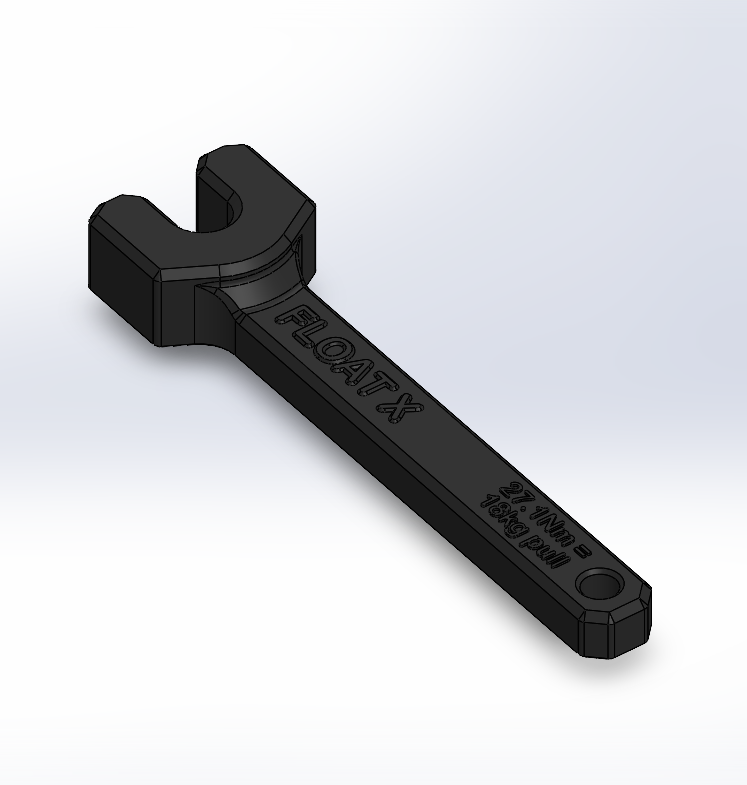

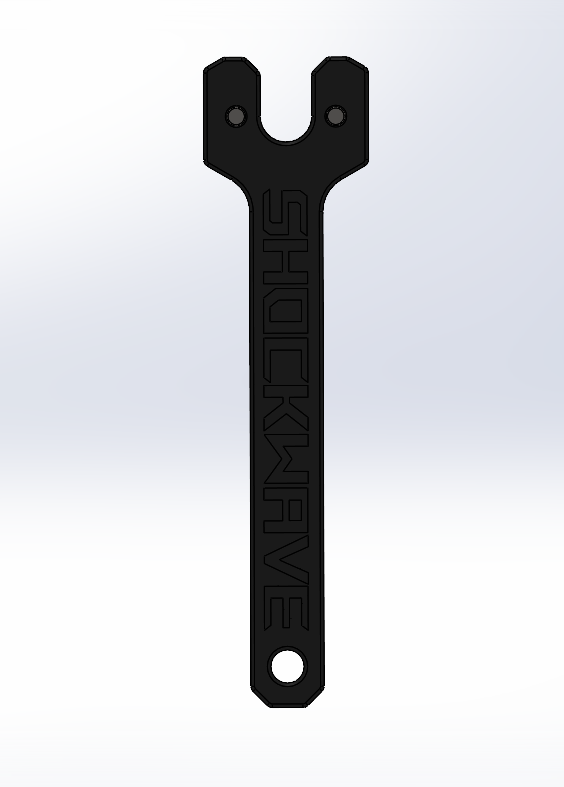

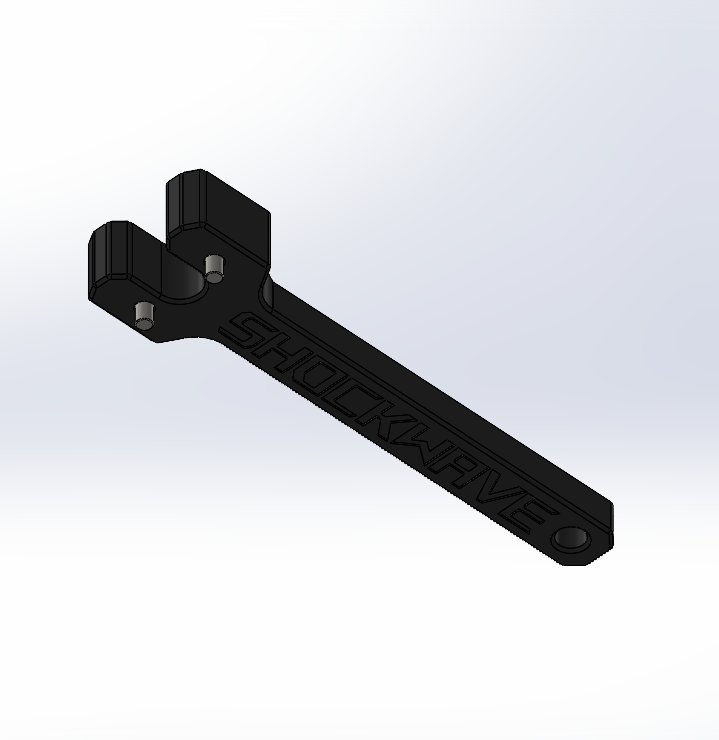

Specialized two-pin socket for opening the sealhead bearing housing on FOX FLOAT X shocks (2022+).

What This Tool Does

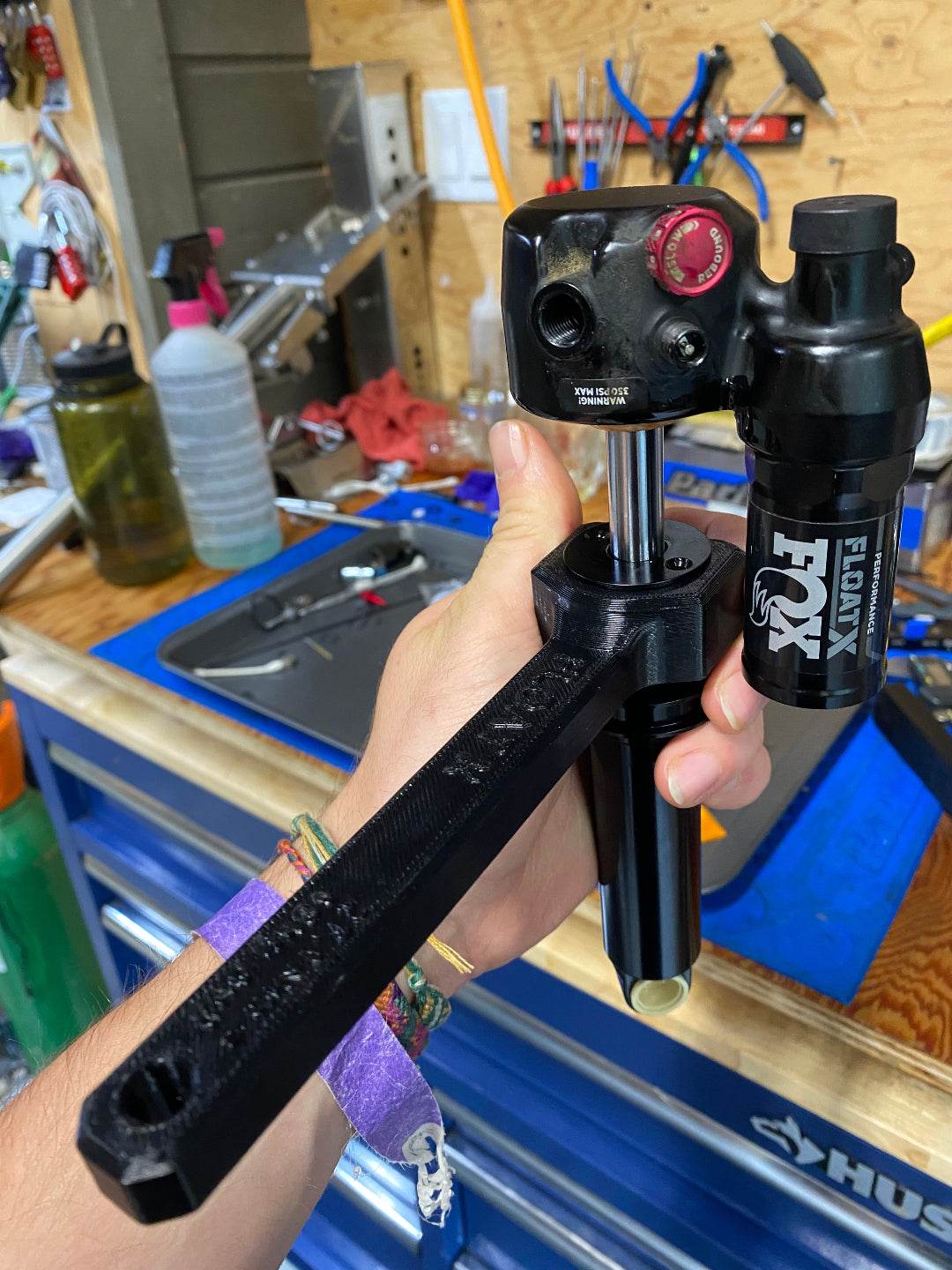

This tool cleanly unthreads the sealhead bearing housing without damaging the soft aluminum tabs.

It ensures:

Even load on both engagement points
No rounding or bending of the tabs
Consistent results across multiple rebuilds

Compatibility

FOX FLOAT X (2022+)
Marzocchi Bomber Air
Not compatible with DPX2 or other FOX models

How to Use (By Travel Length)

FLOAT X shocks use two different bearing housings depending on travel.

37.5–45 mm travel:
- Remove the travel spacer plate first
- Unthread the housing using a 32 mm wrench
47.5–75 mm travel:
- This pin socket is required

No 3/8″ drive: Use the luggage scale torque method instead of a torque wrench.

Warnings

Never force the sealhead, threads are shallow and soft
Apply slow, even torque
Use heat if resistance feels abnormal

Safety & Disclaimer

Always release air spring pressure before opening the air can
Ensure both air and damper pressures are fully discharged

This tool is intended for experienced home mechanics. Not for high-volume shop use.
