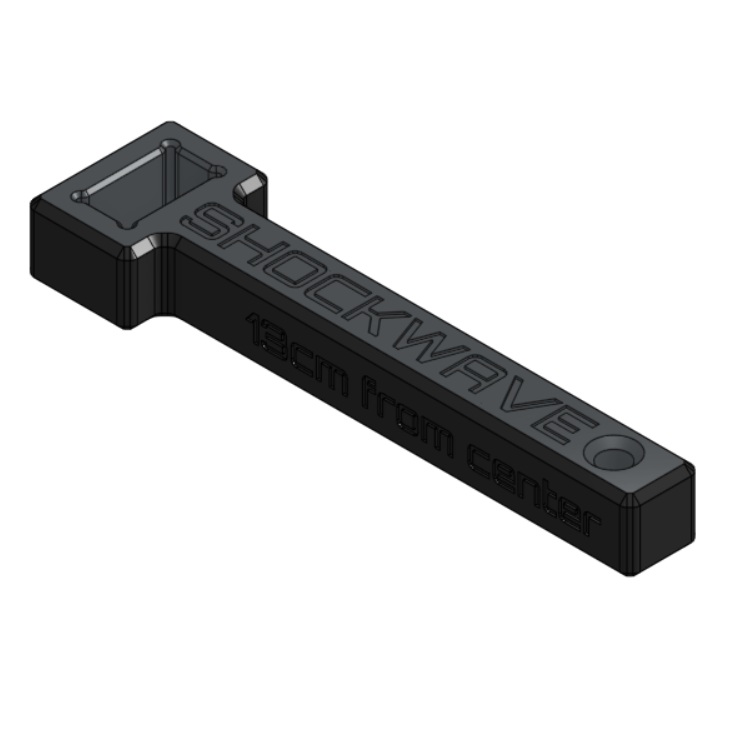

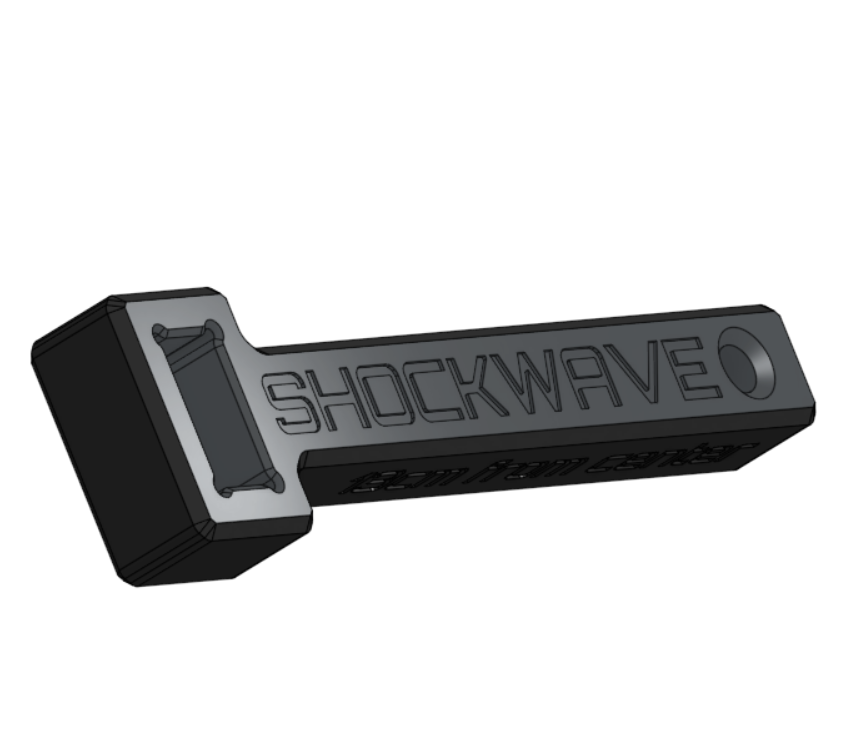

Universal Suspension Eyelet Wrench
This tool is a dedicated shock eyelet wrench. Eyelets are standardized in width across most rear suspensions, which means this wrench fits all common eyelets and lets you tighten them safely without scratching, marking, or crushing the aluminum.
Important Compatibility Info
- Compatible with all standard suspension eyelets (width-wise).
- Designed specifically for rear suspension eyelet installation and removal.
- Ideal for very low torque values (≈ 4–15 Nm typical).
- Safe alternative to pliers or Knipex-type tools that easily damage eyelets.
What This Tool Does

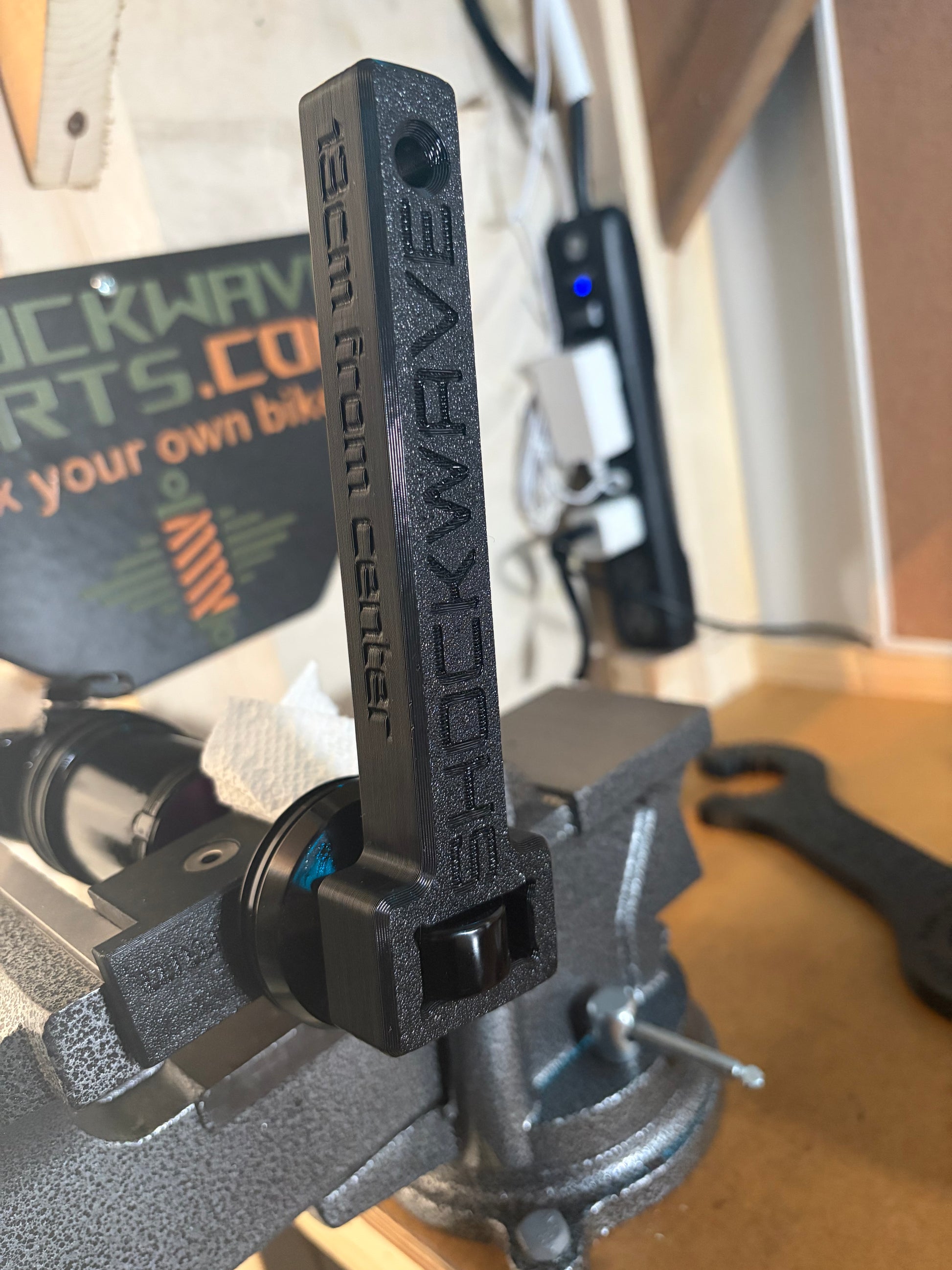

The wrench fully surrounds the eyelet, creating a simple, positive, non-slip interface. Because the eyelet is captured evenly, the tool cannot slip out and does not mark the surface.
Usage Tips
- Do not over-tighten suspension eyelets.
- Some suspensions require as little as 4.8 Nm; exceeding this can break the shaft.

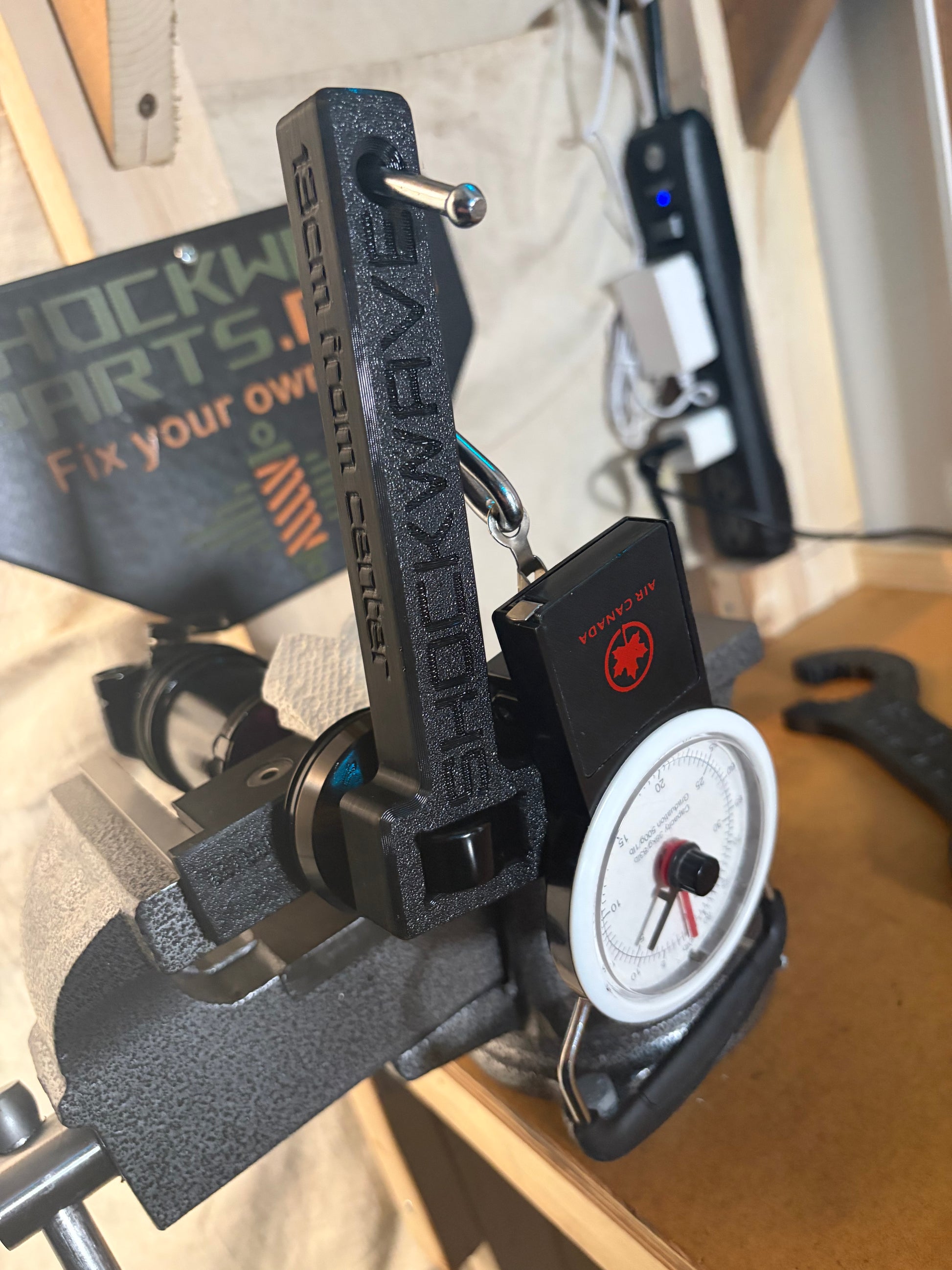

- The wrench includes a hole for use with a luggage scale + our torque calculator.
- The effective lever arm is exactly 13 cm from the center of the eyelet.
- If calculating torque manually, use this distance for accurate results.
- Always tighten slowly and smoothly. If it feels wrong, stop.
Specs
- Application: Rear suspension eyelets
- Interface: Full-capture eyelet profile
- Lever arm length: 130 mm (center to scale hole)
- Material: Reinforced polymer (3D-printed)
- Torque range: Designed for very low torque suspension use
- Includes: One eyelet wrench
⚠️ Eyelets are extremely easy to damage or break if over-tightened. This tool is designed to reduce risk, not eliminate it. Always follow manufacturer torque specifications. By using this tool, you agree to our terms and conditions.
