Shockwave Parts
RockShox Rush RC Damper + Air Shaft Rebuild Kit (200h Service)
RockShox Rush RC Damper + Air Shaft Rebuild Kit (200h Service)
Regular price
$45.49 CAD
Regular price
Sale price
$45.49 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
RockShox Rush RC + 200h Air Shaft Rebuild Toolkit
This kit includes everything you need to rebuild both the damper and the air shaft on Rush RC-equipped forks during a 200-hour service. Fits ZEB, Lyrik, and Pike BASE forks (2023+).

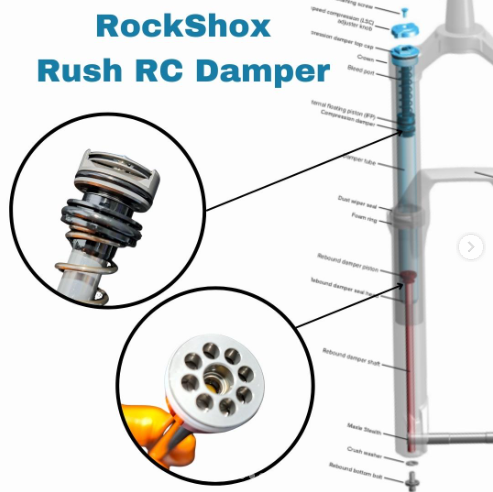

Rush RC dampers are found in BASE models and are easy to work on. Youβll know you have one if the damper top cap takes a 24mm socket, not a cassette tool like Charger RC. For the air shaft service, youβll get a matching Dust Wiper Seal Press Tool of your choice, so you can do the full service properly.
Clamping Tip:
If your tool uses a big-diameter shaft clamp (like 20mm or more), make sure you're clamping it properly.
See the full clamping guide here: How to Use a Big Diameter Shaft Clamp
If your tool uses a big-diameter shaft clamp (like 20mm or more), make sure you're clamping it properly.
See the full clamping guide here: How to Use a Big Diameter Shaft Clamp

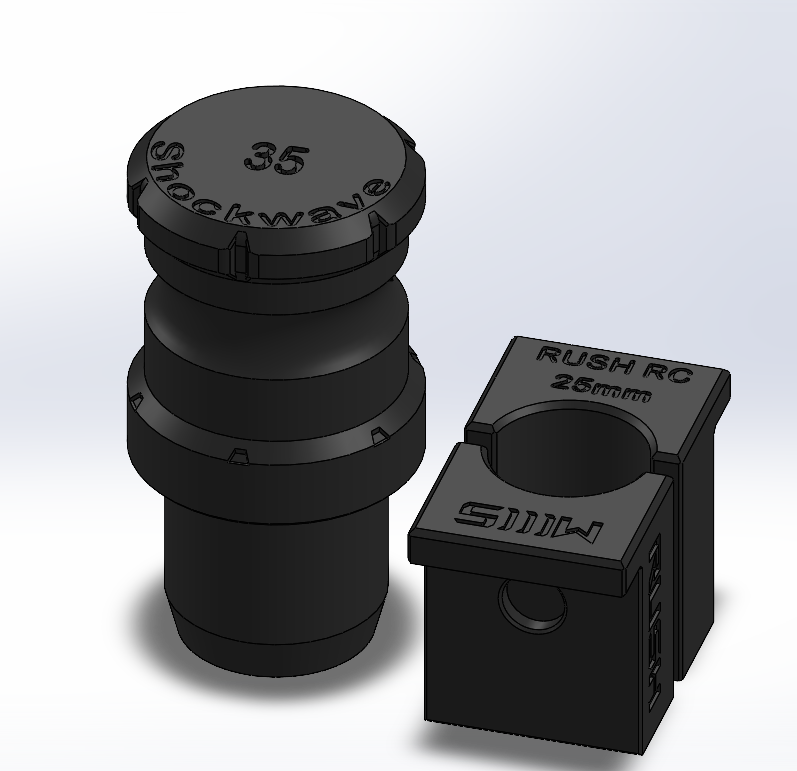

Included in This Kit:
Service Notes:
- 25mm Damper Body Clamp: for clamping the Rush RC damper safely
- Dust Wiper Seal Press Tool: choose the correct size at checkout
Use the clamp with soft jaws in a vise. The press tool ensures seals go in straight without damage.
- Follow the SRAM manual from page 164 onward for the damper
- The air shaft rebuild uses standard air spring procedures.
- Donβt over-grease the air piston. Too much can affect performance or even create pressure spikes
- Make sure to install the air shaft straight and donβt scratch the shaft surface when sliding it into the stanchion
- Always fully depressurize the air spring before beginning work
Recommended Tools:
- 24mm socket or 10" Knipex Pliers
- Essential Tools Starter Pack
- Dust Wiper FinderΒ to select the correct press tool
β οΈ Warnings:
- Use only soft jaws and proper clamps
- Always fully depressurize before opening
- Damper clamp only fits Rush RC, not Charger RC
- Donβt reuse damaged shaft seals or dry bushings
- Use only soft jaws and proper clamps
- Always fully depressurize before opening
- Damper clamp only fits Rush RC, not Charger RC
- Donβt reuse damaged shaft seals or dry bushings
Disclaimer: This kit includes the damper clamp and dust wiper press tool only. You must supply your own oil, grease, seals, and general tools. Service at your own risk. Always follow the SRAM service manual. See our Terms of Service.
