Shockwave Parts
RockShox Motion Control Damper Rebuild Kit
RockShox Motion Control Damper Rebuild Kit
Regular price
$26.49 CAD
Regular price
Sale price
$26.49 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
RockShox Motion Control Damper Rebuild Tool Kit
For forks using the classic Motion Control open bath damper, this is everything you need to safely open it and change the seal head or internals. This damper is found in many entry-level RockShox forks like Recon, 35, Yari, and Judy. Always base model. If your fork says “Select” or higher, this is not the right damper.
Included in this Kit:
- Motion Control Mid-Valve Clamp (9/16" / 14.3 mm) : required to hold the shaft for mid-valve disassembly

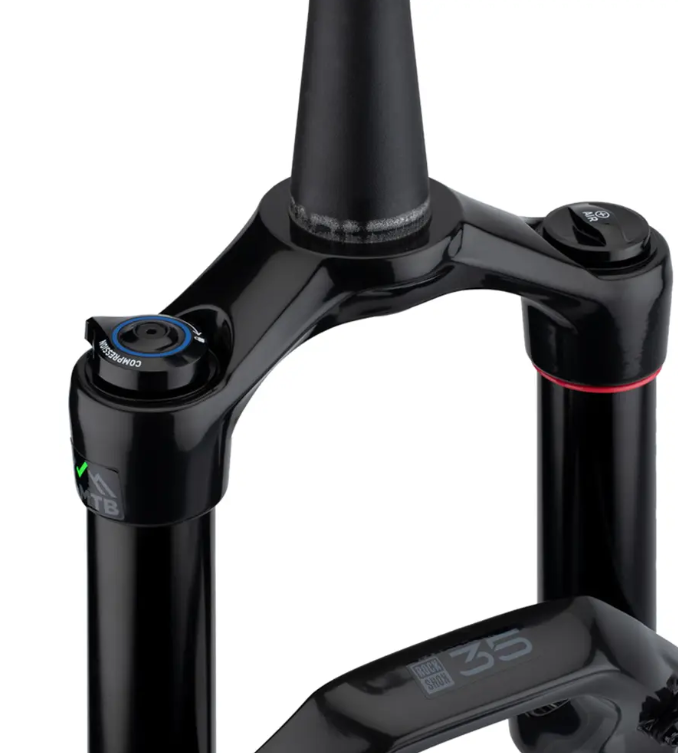

How to Identify This Damper
- Found only in base forks: Pike/Yari/Revelation 2019–2023, Judy, 35 Gold/Silver, Boxxer RC, older Reba and Recon, etc.
- Top cap is removed with a 24mm socket
- Open bath design : there’s no internal bladder or IFP
- Oil is stored in the damper extension itself
- No bleed needed : but oil volume must be extremely precise
⚠️ Critical Warning:
This damper is fragile and very sensitive to oil fill volume. Too much = hydro-lock and damage. Too little = no damping. Use only exact oil volumes as specified.

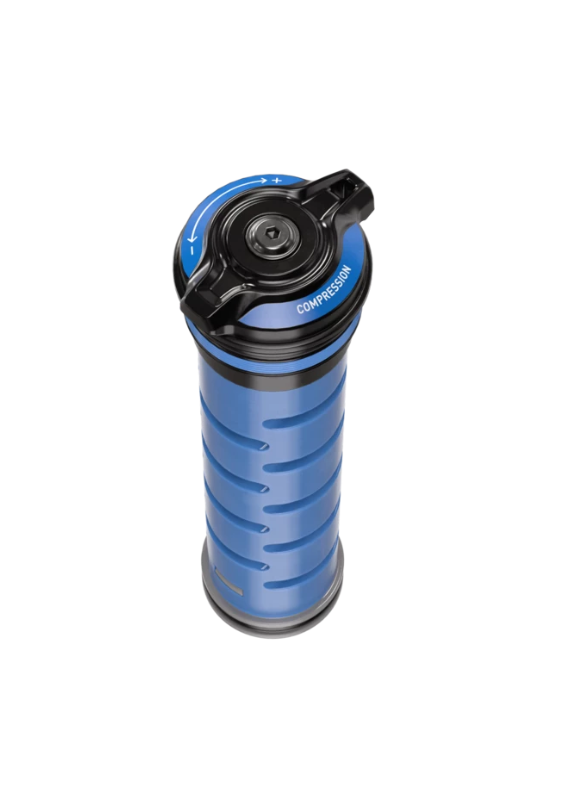

Use a 24mm socket to remove the compression unit, and pull it straight out, it’s mostly plastic and very easy to crack. Use circlip pliers to remove the lower clip and pull out the seal head.
This damper is fragile and very sensitive to oil fill volume. Too much = hydro-lock and damage. Too little = no damping. Use only exact oil volumes as specified.
Use a 24mm socket to remove the compression unit, and pull it straight out, it’s mostly plastic and very easy to crack. Use circlip pliers to remove the lower clip and pull out the seal head.
Useful Resources:
- How to Clamp Large Diameters (for mid-valve removal)
- 2019–2023 Yari & Lyrik Service Manual (starts pg. 62)
- 2019–2023 Pike & Revelation Manual
- 2020–2022 RockShox 35 Manual
- Judy, 30, Recon 2018–2023 Manual
- Reba & Bluto 2017 Manual
- Recon & Sektor 2016–2017 Manual
- Boxxer RC 2015–2018 Manual
- Open Bath Damper Oil Volume Reference Chart (Unofficial but very helpful)
How It Works
Unlike closed cartridge dampers, this one is open-bath and fills from the top directly into the stanchion. There's no need for bleeding, but oil volume precision is critical. This damper uses shaft displacement and chamber pressure to move oil through the base valve. This means even 5 ml overfill can cause performance issues or break parts.
Unlike closed cartridge dampers, this one is open-bath and fills from the top directly into the stanchion. There's no need for bleeding, but oil volume precision is critical. This damper uses shaft displacement and chamber pressure to move oil through the base valve. This means even 5 ml overfill can cause performance issues or break parts.
No Other Custom Tools Included
- Just the custom 9/16" shaft clamp
- Everything else uses standard tools: circlip pliers, 24mm socket, isopropyl alcohol
Disclaimer: Use only if confident in your understanding of open bath dampers. We do not accept responsibility for damage caused by overfilling or misassembly. Always follow RockShox torque specs and fill volumes. By purchasing, you agree to our Terms of Service.
