Clamping Tip:
If your tool uses a big-diameter shaft clamp (like 20mm or more), make sure you're clamping it properly.
See the full clamping guide here: How to Use a Big Diameter Shaft Clamp

Included in This Kit:

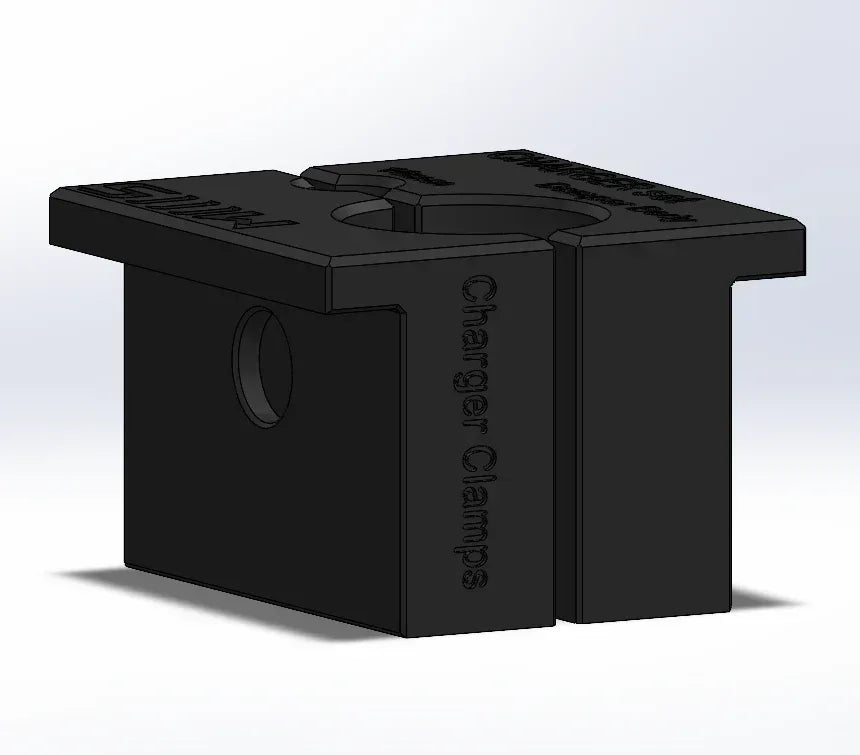

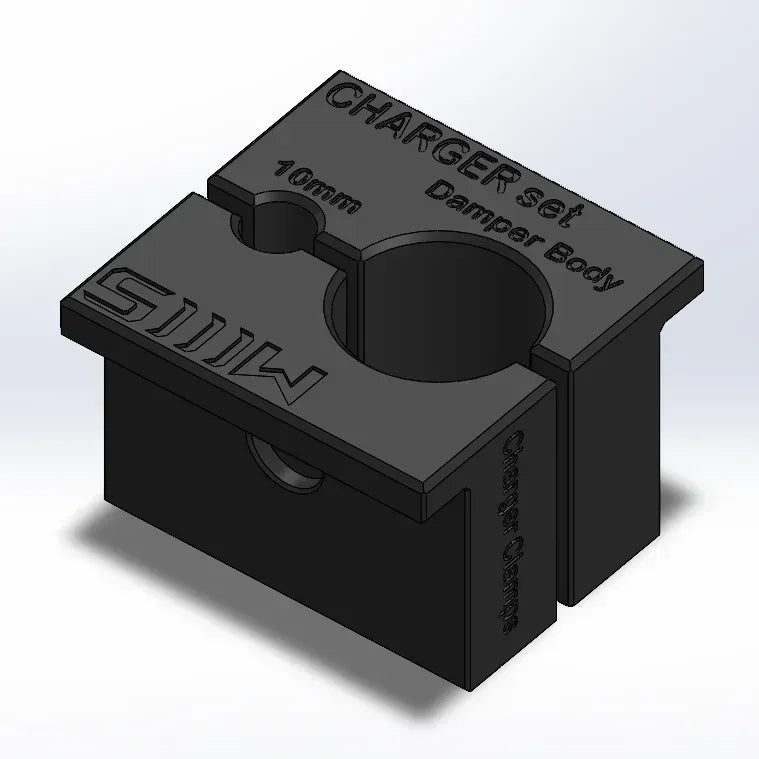

• Charger Combo Clamp : fits Charger R and RC

This is all you need to safely hold the damper during service. Clamp into soft jaws in your vise and follow standard bleeding procedure.

Bleeding Notes:

• Fill until oil reaches the bleed port
• Stroke slowly and evenly, do not push the damper shaft past the specified non-entering zone
• Refer to SRAM Service Manual page 72 for full Charger R manual and exact shaft stroke limits by fork and travel when you bleed the damper (same as Charger RC)
• Top cap installs with the same keyed tab and alignment method as all sealed dampers

Tips:

• This damper was never intended to be user-serviceable, but it absolutely is
• Oil changes alone go a long way — the internals last years with fresh fluid
• Use a luggage scale and our torque calculator to retorque components safely
• Compatible with ZEB, Lyrik, Pike forks from the 2020–2021 model years

⚠️ Warnings:
- Always depressurize your fork before disassembly
- Make sure you’re clamping the damper body, and clean it well with isopropyl alcohol before or it will slip forever!
- Follow correct fill level and stroke range for your fork travel

Disclaimer: This listing includes the Charger damper clamp only. All service is DIY at your own risk. Always follow SRAM’s documentation. See our Terms of Service.
