Which shocks is the Fox X2 Bleed Drip Tray Trio compatible with?

The Fox X2 Bleed Drip Tray Trio is compatible with Fox DHX2 (2021–2025) and Fox Float X2 (2021–2025). DHX2 service uses the one-piece tray design, while Float X2 service uses the split tray, which can be removed after installing the mid-valve and bearing assembly even with the air piston blocking the tube.

What's included in the Fox X2 Bleed Drip Tray Trio?

The trio includes three trays: a DHX2 (2021–2025) one-piece damper tube drip tray, a DHX2/X2 (2021–2025) one-piece IFP reservoir drip tray, and a Float X2 (2021–2025) split damper tube drip tray. All three share the same REZI Clamp interface and are made from TPU for repeated use.

Why does the Float X2 tray use a split design instead of a one-piece design?

The Float X2 tray splits into two halves so it can be removed after the mid-valve and bearing assembly are installed, even when the air piston is blocking the damper tube. The split geometry is engineered to separate without spilling collected oil — a one-piece tray cannot be extracted in that assembly state.

How does the Fox X2 Bleed Drip Tray Trio compare to buying individual shock-specific tray bundles?

The Trio covers both DHX2 and Float X2 in a single purchase, making it the practical choice for shops or riders who service both platforms. Buying the Float X2 Split Bleed Drip Tray Bundle or DHX2 Bleed Drip Tray Bundle separately addresses only one shock model each; the Trio consolidates all three required trays at one price of CAD $59.49.

Who should use the Fox X2 Bleed Drip Tray Trio, and how is it used during a bleed?

This tool is designed for bike shops and home mechanics performing bleed service on Fox DHX2 or Float X2 rear shocks. Install the appropriate tray before reinserting internal components — it press-fits around the damper tube or IFP reservoir to intercept oil displaced during reassembly. After final assembly, remove the tray slowly (keeping split-tray halves upright) and clean with alcohol for the next service.

1 5

Shockwave Parts

Fox X2 (2021–2025) Bleed Drip Tray Trio

$59.49 CAD

Sale Sold out sorry :(

Shipping calculated at checkout.

Fox X2 (2021–2025) Bleed Drip Tray Trio

This trio is the complete oil-control setup for Fox X2 bleed service. You get the one-piece TPU trays for DHX2 plus the split TPU trays for Float X2. Same concept, same REZI Clamp interface, but the Float X2 version splits so it can be removed with the air piston installed.

Important Compatibility Info

Compatible with Fox DHX2 (2021–2025).
Compatible with Fox Float X2 (2021–2025).
Uses the same REZI Clamp interface across all trays.
DHX2 uses a one-piece tray design.
Float X2 uses a split tray design so it can be removed with the air piston installed.

What This Tool Does

When finishing a bleed, reinserting parts always displaces oil. Even if you are careful, it runs down the shock body. It is simply part of the process. These trays capture the oil at the source so the shock stays clean during final assembly.

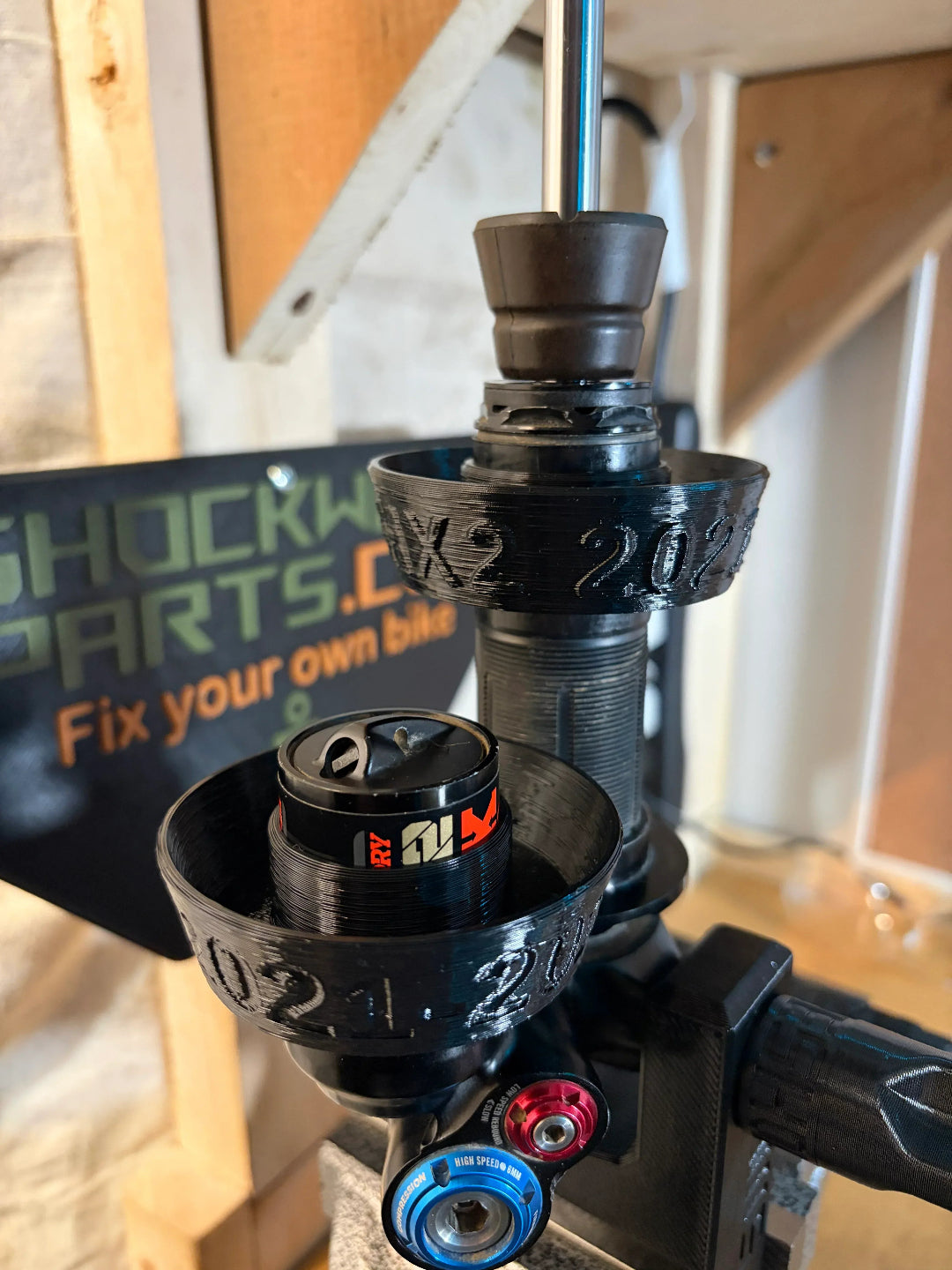

They press-fit around:

The damper tube
The IFP reservoir / reservoir opening

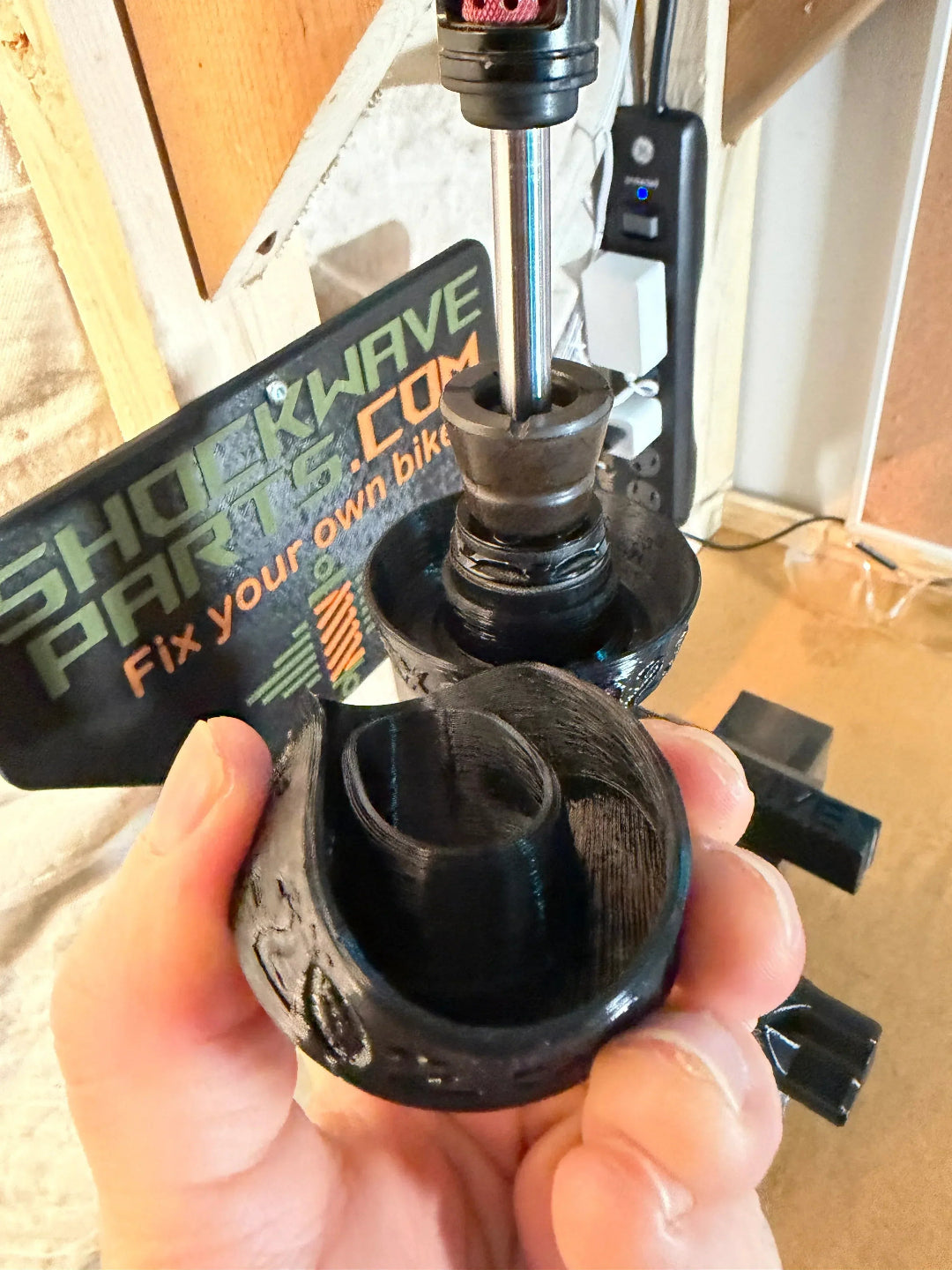

For Float X2, the tray splits in half so you can remove it after installing the mid-valve and bearing assembly, even with the air piston blocking the tube. The split geometry is designed to separate without dumping collected oil.

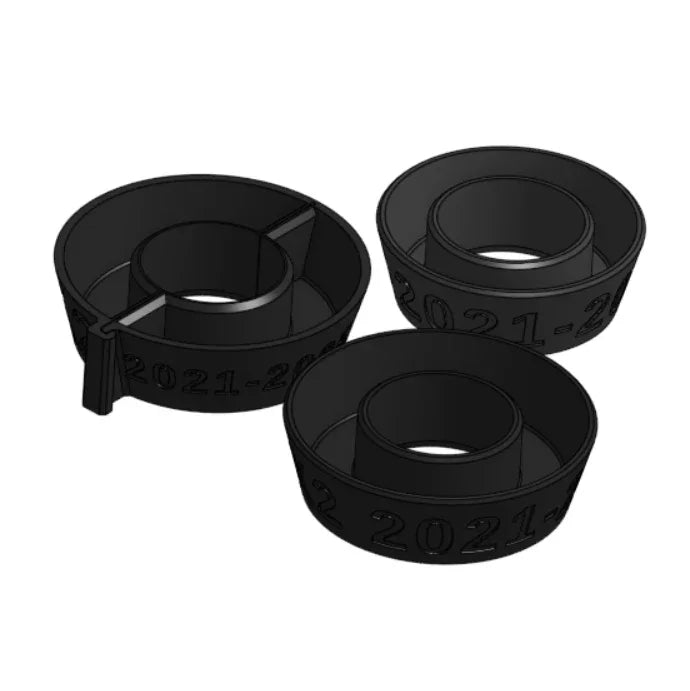

What’s Included

DHX2 (2021–2025) one-piece damper tube drip tray
DHX2/X2 (2021–2025) one-piece IFP reservoir drip tray
Float X2 (2021–2025) split damper tube drip tray

This is the best option for shops or riders servicing both DHX2 and Float X2.

Usage Tips

Install the tray before reinserting internal components.
Ensure full press-fit so it seals evenly around the tube.
After final assembly, remove slowly to avoid spilling collected oil.
For split trays, separate the halves slowly and keep the opening upright.
Clean with alcohol after use.
Designed for workshop use.

Specs

Application: Fox DHX2 + Float X2 (2021–2025)
Interface: Press-fit capture design (one-piece + split)
Material: TPU
Reusable

⚠️ This tool does not replace proper bleed procedures. Always depressurize the reservoir before service. Use at your own risk. By using this tool, you agree to our terms and conditions.
