Fox/Rockshox Forks Clamps Set | Angled Version

Fox/Rockshox Forks Clamps Set | Angled Version

$49.00 CAD
$49.00 CAD
Sale Sold out sorry :(
Shipping calculated at checkout.

Front Forks Clamps Set — 20° Angled

The same universal clamp, tilted 20° to the left so long damper shafts and damper bodies clear the center of your vise. Compatible with nearly every modern damper shaft and damper body from Fox and RockShox.

Same price as the straight version, pick whichever suits your bench, they do the same job. 🙂

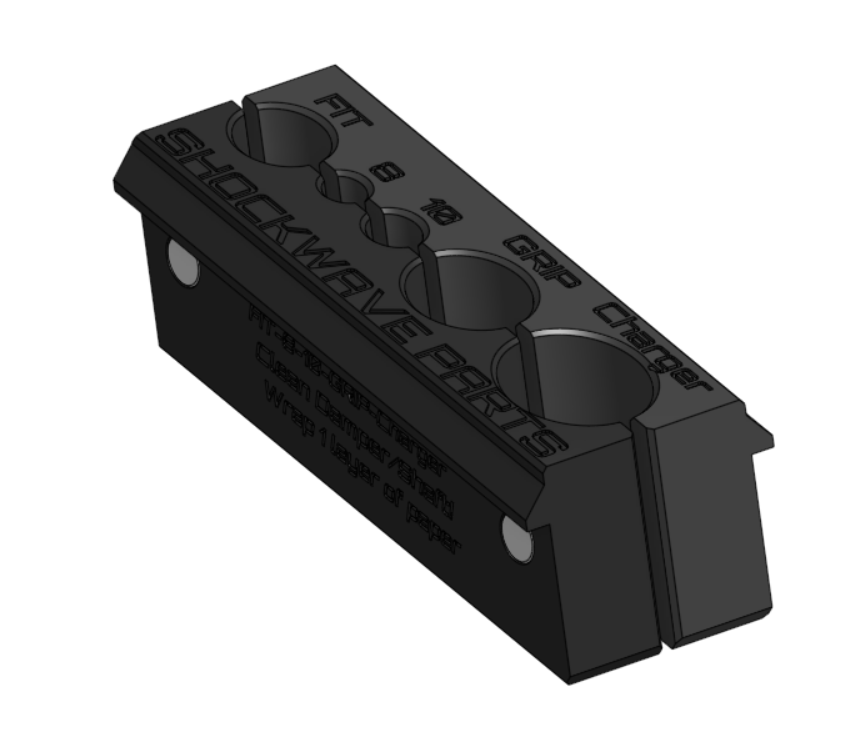

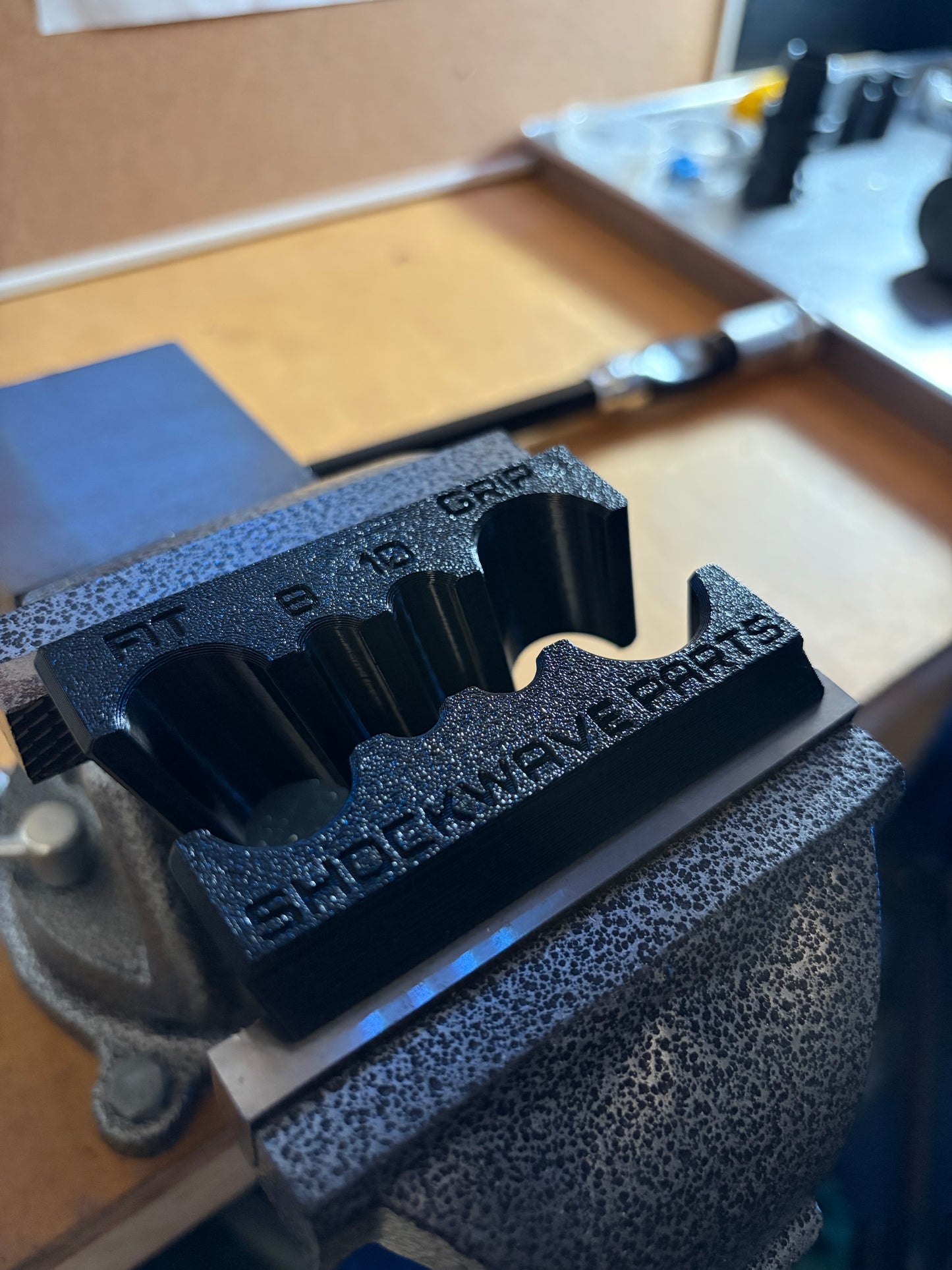

Note: the clamp shown in the photos is the Fox shaft clamp. Same design — it just has one bore less than this one.

Why 20° Angled?
  • Clears the vise center. The 20° left tilt pushes long parts off to the side instead of straight down into the bench or vise body.
  • Made for long parts. Fork dampers and shafts are long, the angle gives you the room to work without fighting for clearance.
  • 4 built-in magnets. The clamp holds itself in place in the vise jaws while you line up the shaft, so you're not juggling parts one-handed.
What It Fits
  • Fox FIT RC2, FIT4, GRIP, GRIP2 — all damper shaft types
  • RockShox Charger series, Charger 1.0, 2.0/2.1, 3.0/3.1 Works with Base, Select, Select+, Ultimate
How to Use the Universal Clamp Set

Full manuals & detailed technique:
• How to Clamp Small Shafts
• How to Clamp Big Diameters

Tips for Best Results
  • Let the magnets hold the clamp against the vise jaw first, then feed the shaft in.
  • Wipe the shaft with isopropyl before clamping for maximum friction.
  • A single layer of paper towel adds grip and reduces required vise force.
  • Check that the shaft is straight inside the clamp before tightening.
Safety & Disclaimers
  • Never clamp a damper shaft directly without the correct clamp diameter.
  • Depressurize your fork before opening anything internal.
  • Excessive vise force can bend or score a damper shaft.
  • The magnets position the clamp — they don't hold it. Always close the vise before applying any force.
