DVO Shaft Clamp Combo – 10 / 12.7 / 14 mm
DVO Shaft Clamp Combo – 10 / 12.7 / 14 mm
Couldn't load pickup availability
⚠️ Important Safety Warning
Always depressurize air and damper circuits before clamping or disassembly. Clean the shaft thoroughly with isopropyl alcohol and wrap it in a paper towel before clamping. Never clamp near the sealhead or eyelet. Follow all safety procedures.

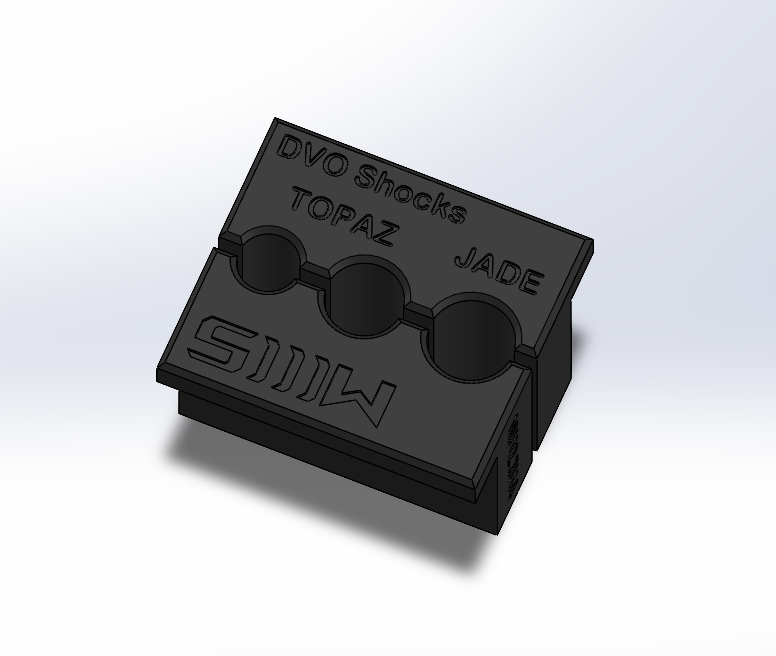

DVO Shocks Shaft Clamp Combo 10 mm / 12.7 mm / 14 mm
The only shaft clamp combo you’ll ever need for servicing DVO shocks, from Topaz Gen 1 all the way to Jade-X Prime. Three clamp sizes, one block, zero compatibility worries.
What It Includes
- 10 mm Groove : For DVO Topaz Gen 1 & Gen 2
- 12.7 mm Groove : For DVO Topaz Gen 3, Pro, and Prime (1/2" shaft)
- 14 mm Groove : For all Jade Coil, Jade-X, and Jade-X Prime shocks
Each groove is precision-made to match DVO shaft diameters and minimize the risk of damage when used correctly in a bench vise. Perfect for disassembly, eyelet removal, sealhead service, or valving work.
Why This Combo is great
If you're working on multiple bikes or don’t know the exact generation of your shock, this combo has you covered:
- Topaz Gen 1 & Gen 2 : 10 mm shaft
- Topaz Gen 3 / Pro / Prime : 12.7 mm shaft
- Jade / Jade-X / Jade-X Prime : 14 mm shaft
This is the most cost-effective way to be ready for every modern DVO shock.
Read This Before Using
⚠️ Safety Notes & Disclaimers
- Always clean the shaft with isopropyl alcohol
- Wrap the shaft in paper towel before clamping
- Clamp only in the middle of the shaft, never near ends, threads, or seals
- Do not overtighten your vise, just snug enough to hold
- This tool is intended for use by confident home mechanics
- Improper use may cause shaft damage or void your warranty
By purchasing this product, you acknowledge that you have read and agree to our Terms of Service.
