Dropper Post Shaft Clamps Full Set | Angled Version
Dropper Post Shaft Clamps Full Set | Angled Version
Couldn't load pickup availability

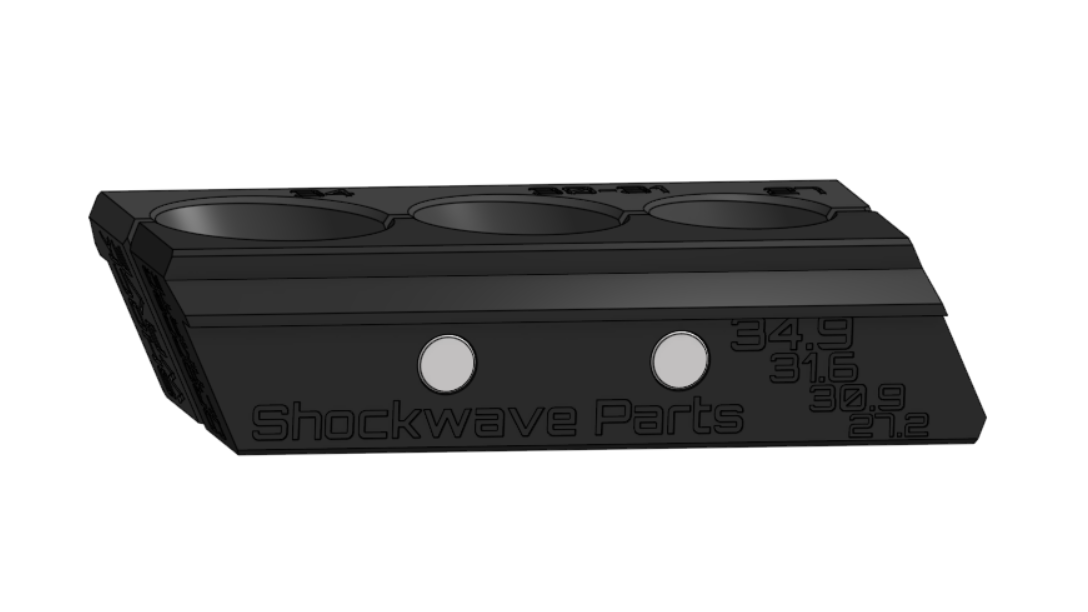

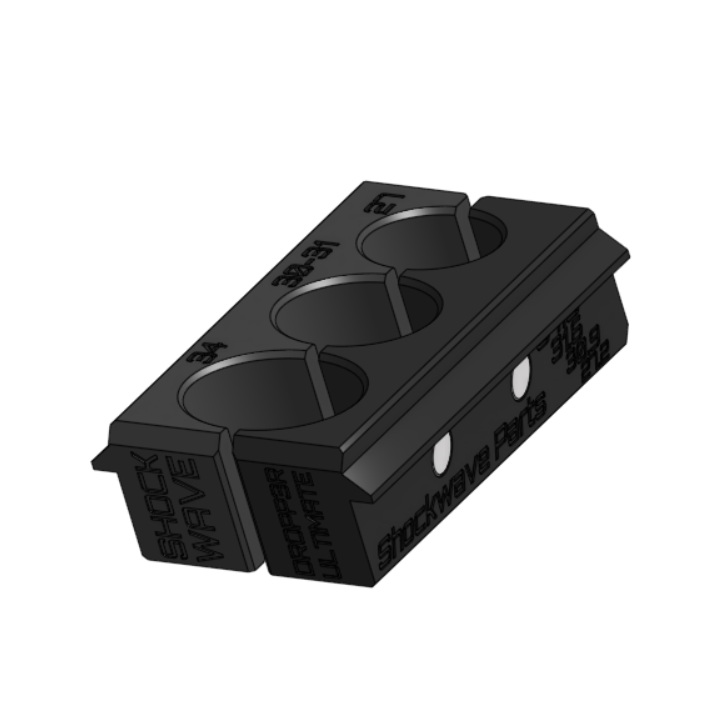

Universal Dropper Post Shaft Clamp – Angled 25° Combo Tool
The compact version of our dropper combo clamp, set at a 25° angle so long dropper posts clear the center of the vise instead of running into the bench. Three bores cover all major diameters: 27.2 mm, a shared 30.9 / 31.6 mm bore, and 34.9 mm. One tool, less clamps in the drawer.
Why 25° and Only 3 Bores
- The angle clears the vise. Dropper posts are long. Tilting the clamp 25° pushes the post off to the side so you are not fighting for clearance around the vise body or the bench edge.
- Three bores instead of four. 30.9 mm and 31.6 mm are close enough that we cut a single in-between bore for both, which makes the whole tool smaller and lighter.
- Need more bite on a 30.9? Wrap a layer of paper towel around the post body before closing the clamp. That takes up the small difference and gives you a solid grip.
⚠️ Warning
Incorrect clamping, uneven pressure, dirt between surfaces, or partial contact can scratch or deform your post. Always clean the surface properly and follow the big-diameter clamp guide to prevent damage.
On the shared 30.9 / 31.6 bore, check that the shim material sits evenly all the way around the post before you tighten. A bunched or partial wrap creates a pressure point and can mark the post.
Compatibility
- Works with 27.2 mm, 30.9 mm, 31.6 mm, and 34.9 mm round dropper posts.
- 30.9 mm and 31.6 mm share one in-between bore. Add a layer of paper towel on a 30.9 mm post for extra grip.
- Compatible with most major brands: Fox Transfer, RockShox Reverb, OneUp V2, PNW, BikeYoke Revive, KS, and more.
Tip: The angled version is the one to grab if your vise sits close to a wall or a bench edge, or if you service long-travel posts regularly.
How to Use the Clamp
- Clean the dropper post surface thoroughly with isopropyl alcohol.
- Wrap the post in a single layer of paper towel to increase grip and reduce clamp force. On a 30.9 mm post in the shared bore, this step is not optional.
- Set the clamp in the vise with the angle running clear of the bench, then close it evenly on both sides and tighten gently until secured.
- For large diameters (30.9 / 31.6 / 34.9), follow the official guide here:
How to Use Big Diameter Shaft Clamps - Once the clamp grips securely, proceed with your dropper service.
Disclaimer
Shockwave Parts is not responsible for damage resulting from improper clamping, dirty surfaces, excessive vise pressure, or incorrect technique. Always verify full contact before tightening and follow all linked usage guides.
