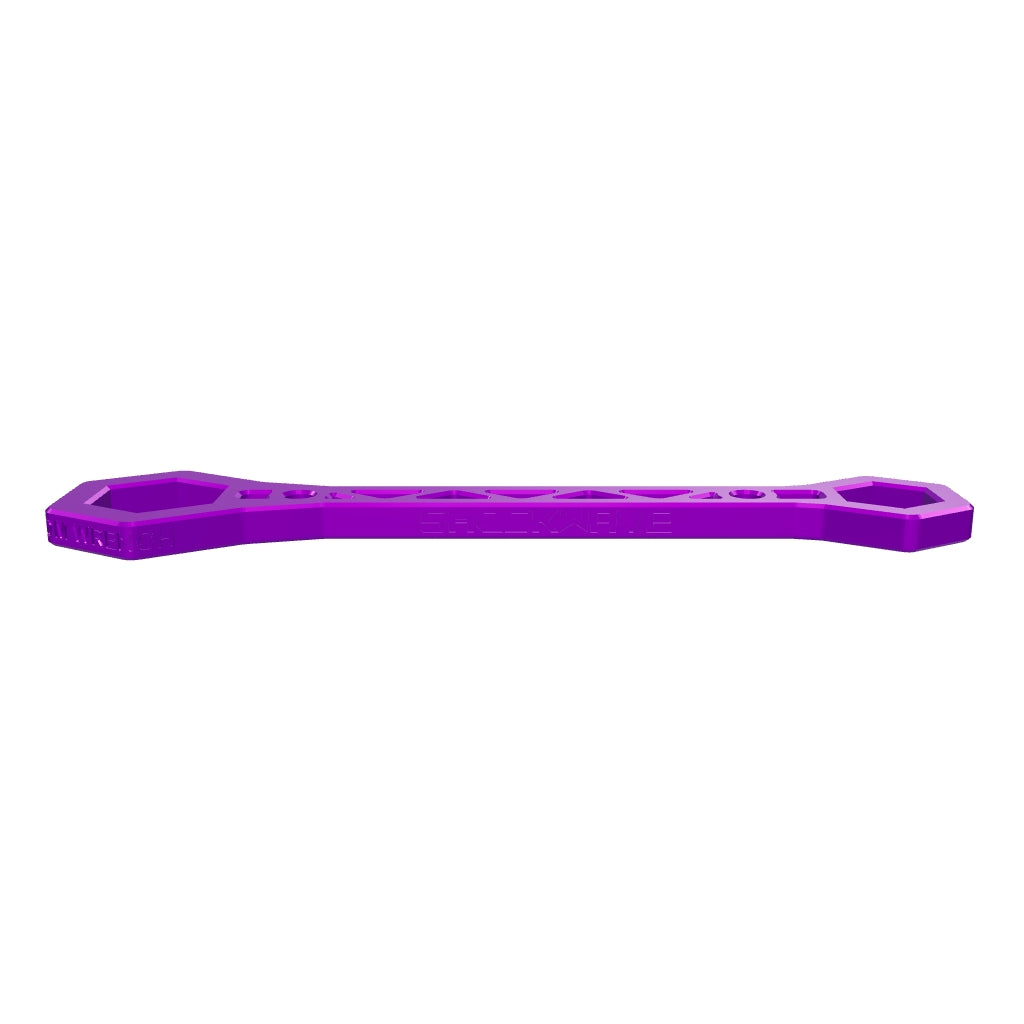

Two-Sided Pin Socket Wrench | STL File
The Two-Sided Pin Socket Wrench is the digital version of our custom wrench made specifically for Shockwave Parts pin sockets. It is designed to fit the outer geometry of our sockets with extremely tight tolerances, helping you apply torque cleanly without sideways slip or unnecessary play.
This wrench includes two working sides: one for 24 mm pin sockets and one for 32 mm pin sockets.
Do not use this as a top cap wrench, it will break, it is only to be used with our pin sockets.
This STL file is free. If you already have one of our pin sockets and access to a 3D printer, you can print this wrench and work efficiently on your suspension without needing additional tools.
This is a digital STL product only. You print it yourself.
How It Works
The wrench slides directly over compatible Shockwave Parts pin sockets and is designed to seat with very little play. Once fully seated, it helps keep the socket aligned while you install or remove sealheads, adjuster caps, base valves, and similar low- to mid-torque parts.
Each side of the wrench is matched to a specific socket size. The 24 mm side is intended for smaller pin sockets, while the 32 mm side is for larger ones.
A centered hole is also included for luggage-scale torque measurement if you want a more controlled and repeatable setup.
Important Notes
This tool is only useful with Shockwave Parts pin sockets. It is not intended to be used as a normal wrench, general workshop tool, or substitute for metal tools.
Do not use it on random hex fittings, top caps, pedals, axle nuts, or anything outside its intended use. This wrench exists only to drive our 24 mm and 32 mm pin sockets correctly.
Like the physical version, this tool is meant for low- to mid-torque work only. Be gentle. Most of these assemblies seal with O-rings, so slight under-torque is usually far safer than over-torque.
STL File Only (Digital Download)
This is a digital product. You are downloading the STL file only to print the wrench yourself.
No physical product is shipped.

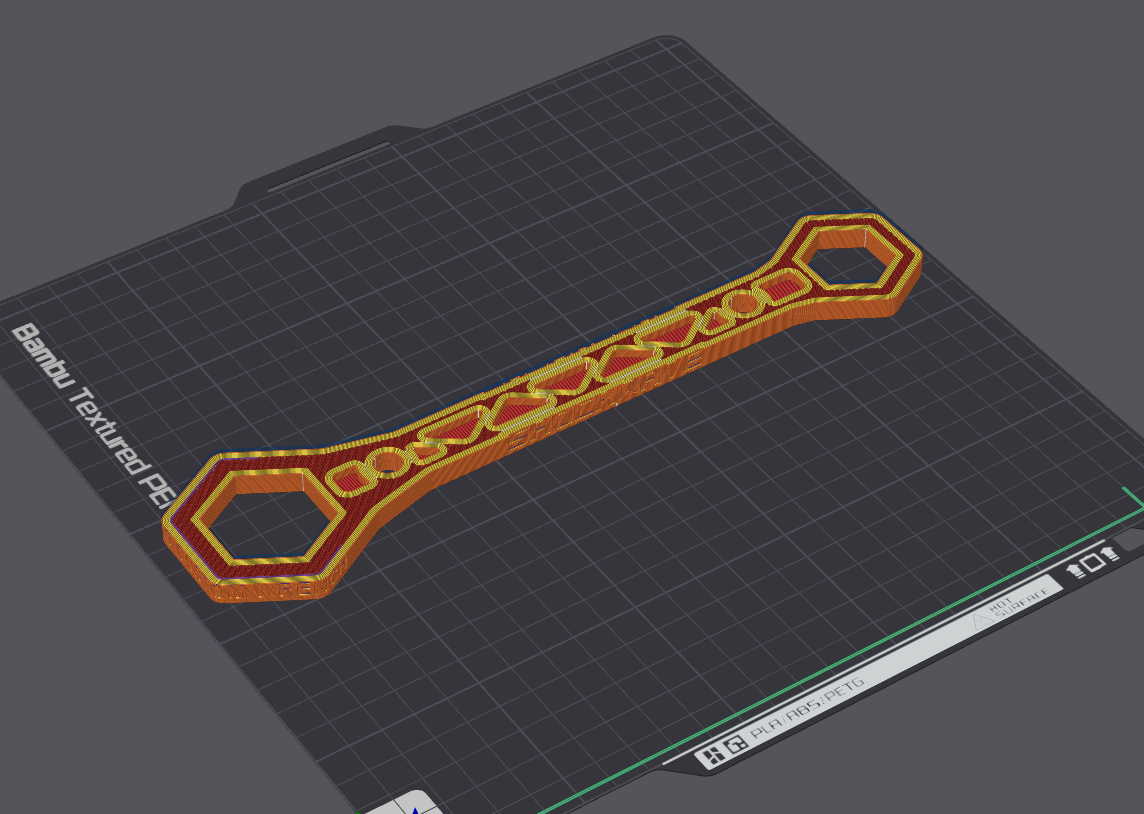

Print Specifications
- Material: PETG (recommended)
- Layer height: 0.20 mm (0.4 nozzle)
- Nozzle: 0.4 mm
- Walls: 5–6 walls
- Infill: 50%
- Supports: Not required
This tool must be printed strong. Do not reduce walls or infill. Strength and rigidity are critical for proper function and safety.
What’s Included
- Two-Sided Wrench (24 mm + 32 mm) STL file
- No physical item is shipped.
Liability Disclaimer
Downloading, printing, and using this file are at your own risk. Shockwave Parts is not responsible for damage, injury, or failures caused by incorrect use, poor printer calibration, or unsuitable materials.
Acceptance of Terms
By downloading this file, you confirm that you’ve read, understood, and agreed to the conditions above.
