Digital STL | The Modern Guard

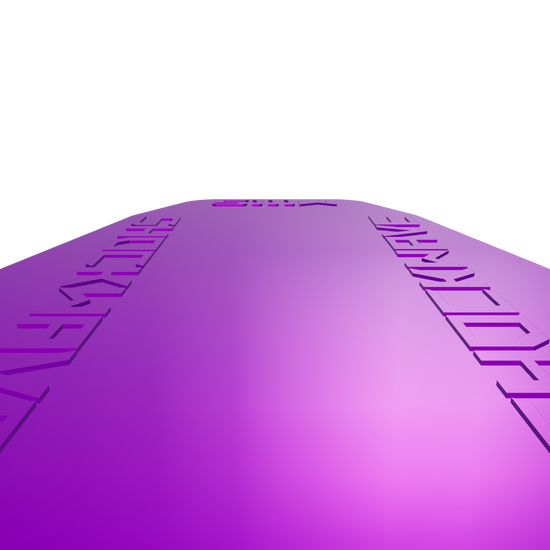

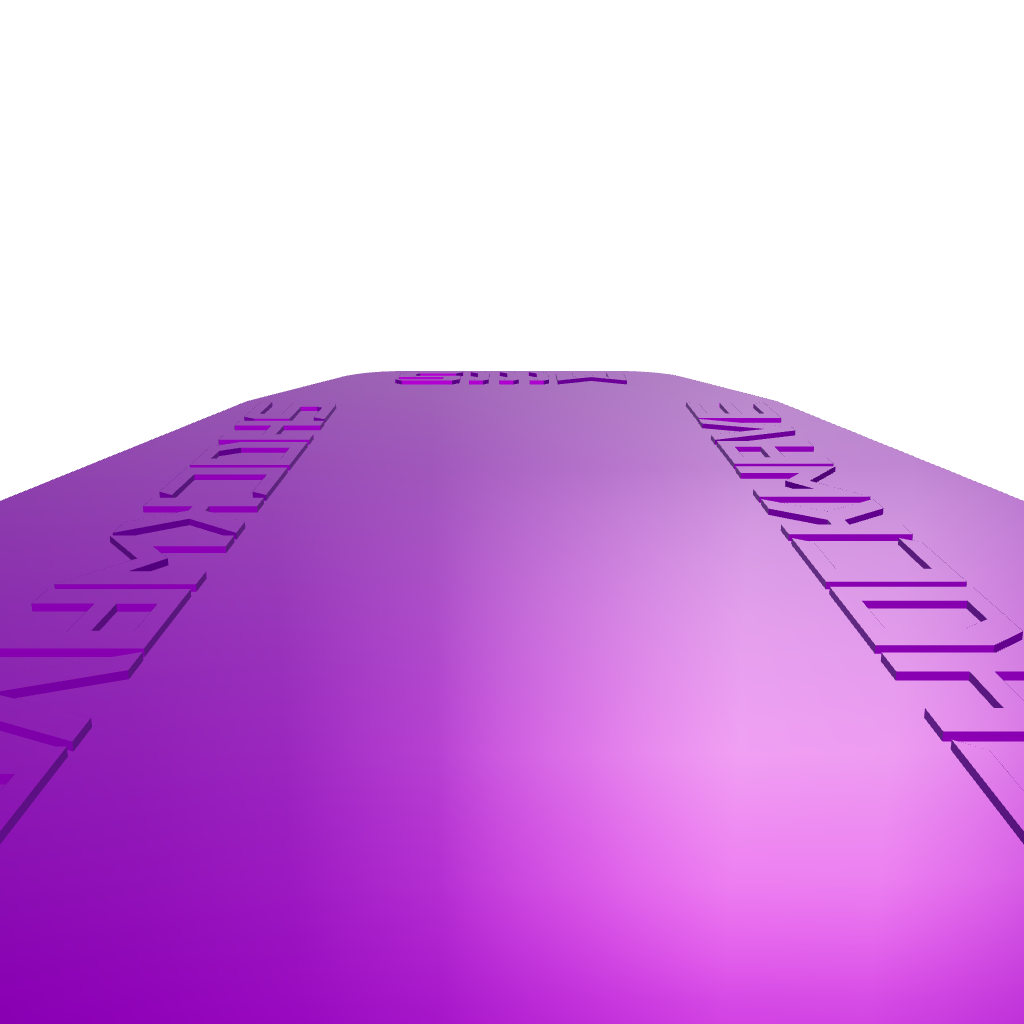

• Front (Universal): Clean, squared look with integrated flex lines.
• Rear – HighFit: Taller profile, cleaner look, slightly more impact-exposed.
• Rear – LowFit: Lower profile, maximum protection for linkage + rear triangle.

Both rear versions work great, pick HighFit for the cleanest silhouette, or LowFit for tougher coverage.

This is a digital download. You are purchasing the STL files to print these guards yourself. No physical product is shipped.

• The visible lines are flex/bend zones. Heat here to create crisp bends or match your frame.
• Do not bend cold. Use a HEATGUN or carefully use a lighter until flexible, then bend along the lines.
• You can heat-shape the rear triangle arch if clearance is tight. Maintain at least 10 mm clearance.
• Once cooled, the shape holds. Avoid over-bending to keep impact flex.

Safety: Heat in a ventilated area, keep flame off the surface, avoid overheating one spot.

• Nozzle: 0.4 mm (best finish), 0.6 mm works for speed
• Layer height: 0.20–0.28 mm (0.20 mm for clean lines)
• Walls: 3–4
• Top/Bottom: 4–5
• Infill: 15–20% (gyroid or grid)
• Supports: None, print flat on the bed
• Bed adhesion: Clean bed; brim optional
• Material: PETG (balanced) or Nylon (toughest, needs dry filament)

Notes: PETG works all summer but can crack from extreme hits. Nylon is stronger, dry fully before printing.

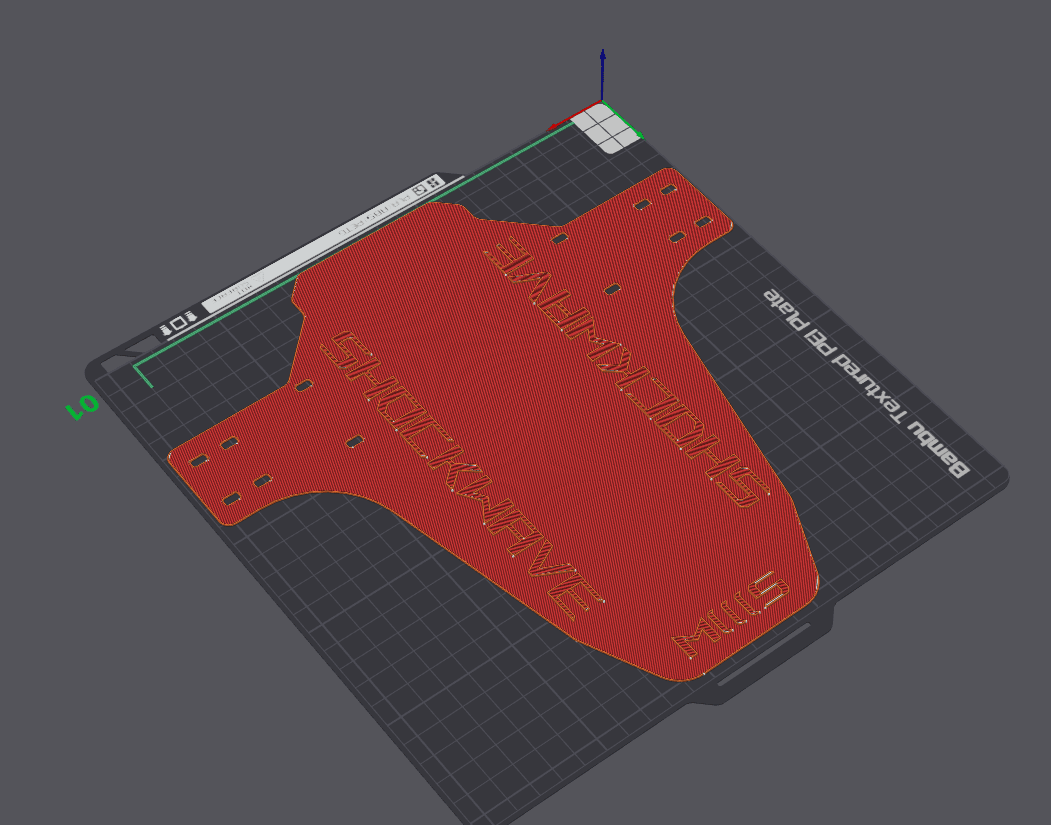

• Minimum build area: 256 × 256 mm
• Bambu Lab: All printers compatible except A1 mini

• 3 × STL files: Front (Universal), Rear HighFit, Rear LowFit
• No physical items are shipped

• Print for your personal use (unlimited copies)
• Do not upload, share, resell, or distribute STL files or printed parts
• No commercial use, sublicensing, or remixing for resale

Purchasing or downloading means you have read and accepted these terms.

Use at your own risk. Shockwave Parts is not responsible for damage, injury, or print failures due to setup, materials, or improper shaping. Always check tire and frame clearance before riding.

By completing your purchase, you confirm that you’ve read, understood, and accepted the license and conditions above. Any use outside these terms is prohibited and may result in legal action.
