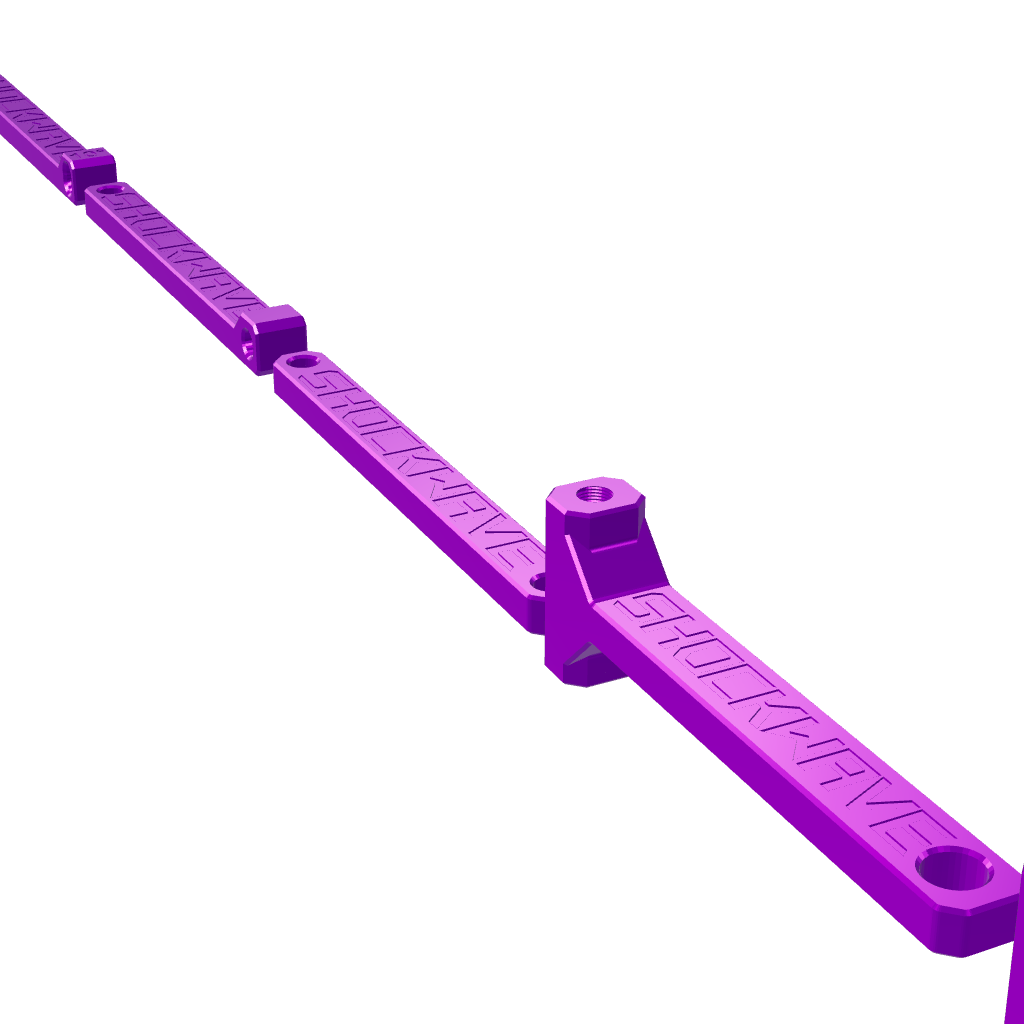

Digital STL | Single Fixed-Length Rear Shock Dummy
Download the STL file for one specific fixed-length dummy shock. Perfect if you only need a single size for your bike and want to print it yourself. No shipping, low cost, low footprint.
What You Receive
One STL file that matches the exact length and mount configuration you select.
- Standard Eyelet (M10): 190, 210, 230, 250 mm
- Trunnion: 165, 185, 205, 225 mm
- Mount options: Straight, Yoked, 10Β° Offset (Eyelet), Normal Trunnion, Yoked Trunnion, Yoke Crooked Trunnion, 15 mm Giant

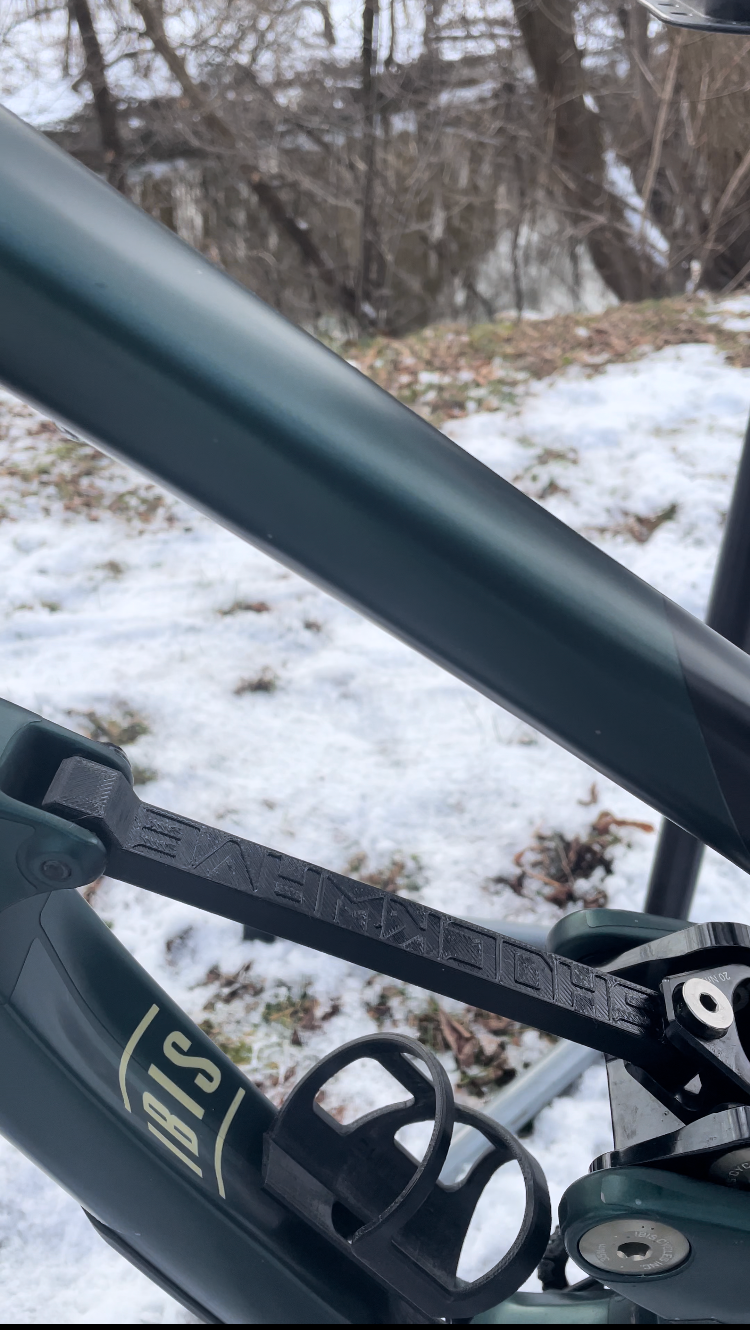

Same geometry as the physical tool, fully tested on real bikes.
Available Configurations
Standard Eyelet (M10 eye)
- Straight
- Yoked
- Offset (Diagonal mount)

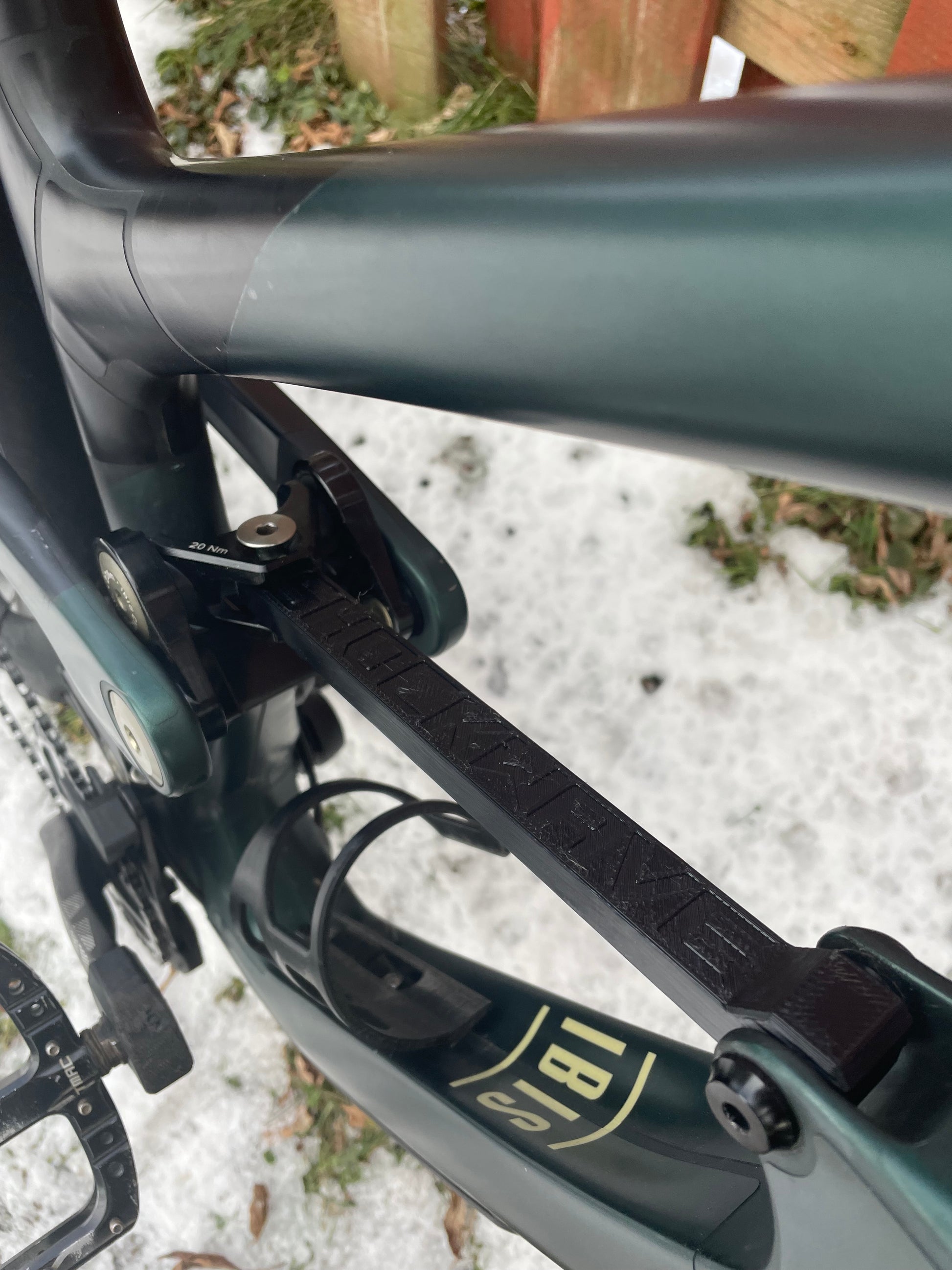

Trunnion (two M10 bolts)
- Normal Trunnion
- Yoked Trunnion
- Yoke Crooked Trunnion
- 15 mm Giant Version
Compatible with most diagonal and non-parallel trunnion mount orientations.
3D Printing Settings
- Material: PETG recommended (Nylon for heavy use)
- Nozzle: 0.4 mm (0.6 mm also works)
- Layer Height: 0.20 mm (0.3 mm for 0.6 nozzle)
- Walls: 5 walls (4 for 0.6 nozzle)
- Infill: 60% (40% with 0.6 nozzle)
- Supports: None required
Trunnion threads: Printed threads intentionally have light engagement. They only need to catch the bolts, they will not pull out during normal maintenance.
License & Fair Use
This is a personal-use license.
- You can print unlimited copies for yourself.
- Printing for friends is fine, consider a small donation.
- Reselling the file or the printed part is not allowed.
Support development: buymeacoffee.com/shockwaveparts
Safety Disclaimer
Not a riding component.
For maintenance, transport, and storage only. Light rolling in the shop is okay.
For maintenance, transport, and storage only. Light rolling in the shop is okay.
