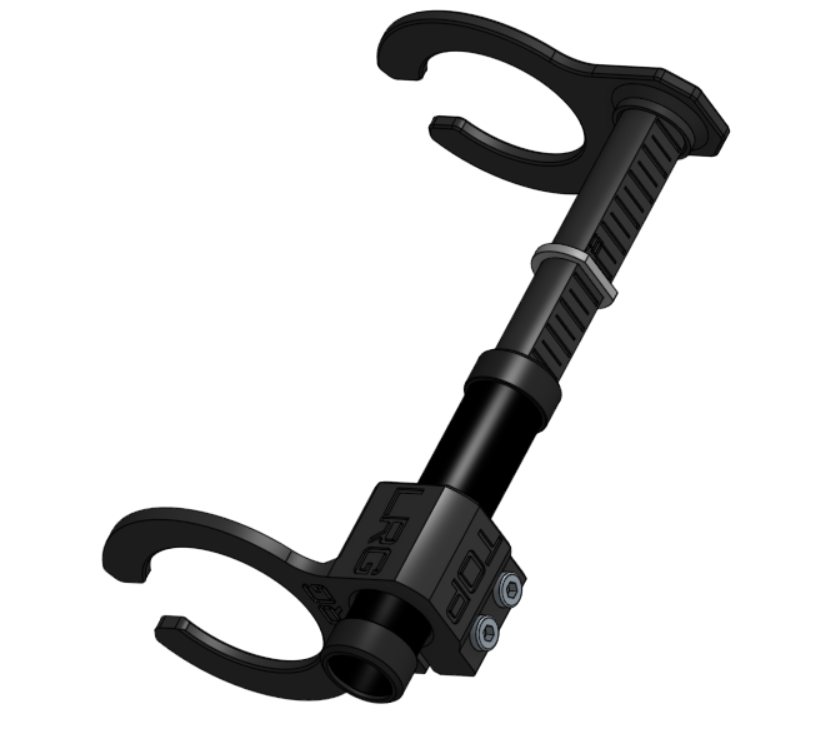

The CoilTracker Pro directly measures real shock travel and displays it as a percentage of stroke used.

Unlike the clip-on CoilTracker, this version works using the full spring length, so no calculator or conversion is required.

Once installed, you can directly read sag and travel usage on the shock.

Designed as a permanent setup and tuning tool for coil shocks.

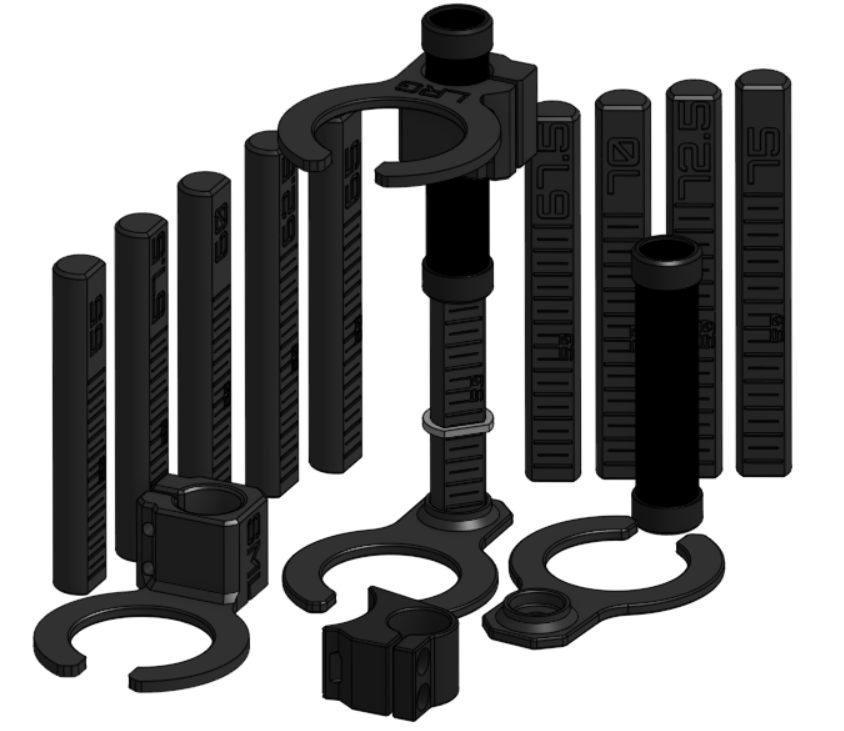

Two mounting versions are available:

• Piggyback Mount → mounts near the piggyback on compatible shocks
• Dual-Side Mount → mounts directly on both ends of the spring

Each version is calibrated for a specific shock stroke.

Choose the correct version for your shock.

Always verify frame and shock clearance before ordering.

• Remove the shock and spring
• Install the CoilTracker Pro parts
• Reinstall the spring and shock
• Rotate the indicator to the orientation you prefer
• Slide the cylinder to the 0% position
• Tighten the two 3 mm screws lightly
• Go ride
• Read sag and travel directly on the scale

The system adds approximately 6 mm of spring stack height, so make sure preload adjustment space is available before installation.

The included sag ring should align with the 0% mark during setup.

Important installation notes

• Do not overtighten the 3 mm screws or carbon tube
• Use only enough preload to keep the system stable
• Always verify frame, linkage, and piggyback clearance at full compression
• You can manually slide the cylinder to test clearance before riding
• FOX springs may fit looser than RockShox / EXT / Cane Creek springs
• Most parts can be replaced individually if damaged

No more temporary clips, calculators, or measuring after every run.

The indicator stays installed on the bike and always shows your real sag and travel usage.

Simple, accurate, and easy to read during setup or riding.

Proper installation and clearance verification are required.

Depending on the bike and shock layout, some configurations may not be compatible.
