Universal Shaft Clamps – Variable Diameter by Design

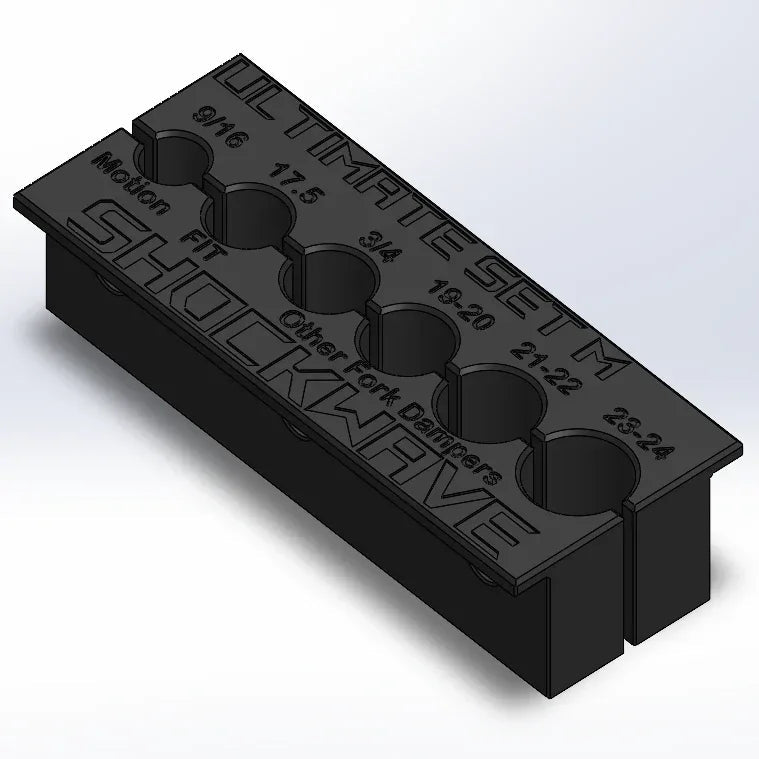

These universal shaft clamps are intentionally designed with in-between diameters (ex: ~25.6–25.7mm for a 25–26mm range).
It is a deliberate design choice.
Because the clamps are 3D printed in plastic, they can flex slightly under load. That flexibility, combined with the in-between diameter, allows one clamp to cover a wider usable range than traditional fixed-size clamps.
1. Designed for Range
Traditional clamps are made for one exact diameter.
These are built to adapt:
- Plastic flex absorbs variation
- Paper adjusts the interface diameter
- Friction locks everything in place
2. You Must Build the Fit
If your part is smaller than the clamp range, you need to compensate.
Example:
- 25mm shaft in a 25–26 clamp
- Wrap 3–5 layers of paper
3. The Method (This Is What Makes It Work)
Follow this exactly:
- Clean everything with isopropyl alcohol
- Wrap paper around the shaft
- Spray 2–3 shots of isopropyl onto the paper
- Clamp immediately
4. If It Slips, You Did Something Wrong
Don’t increase force blindly.
Fix the interface instead:
- Add paper
- Clean again
- Reapply isopropyl
5. Heat Will Kill the Clamp
These are plastic clamps. Heat will soften or deform them.
Keep heat sources away from the clamping area.
The strength of this system is versatility. One clamp covers multiple diameters without sacrificing grip, if used correctly.
