Shockwave Parts
8 mm Shaft Clamp
8 mm Shaft Clamp
Couldn't load pickup availability
⚠️ Important Safety Warning
Always depressurize air and damper circuits before disassembly. If your shock or fork is still pressurized, removing the eyelet,sealhead or opening the damper in genreal can cause injury or damage.
8 mm Shaft Clamp
Designed for 8 mm shafts used in forks, dampers, and some coil shocks. Not compatible with air shocks unless the eyelet is removed. Most air shocks require a horizontal shaft clamp instead.

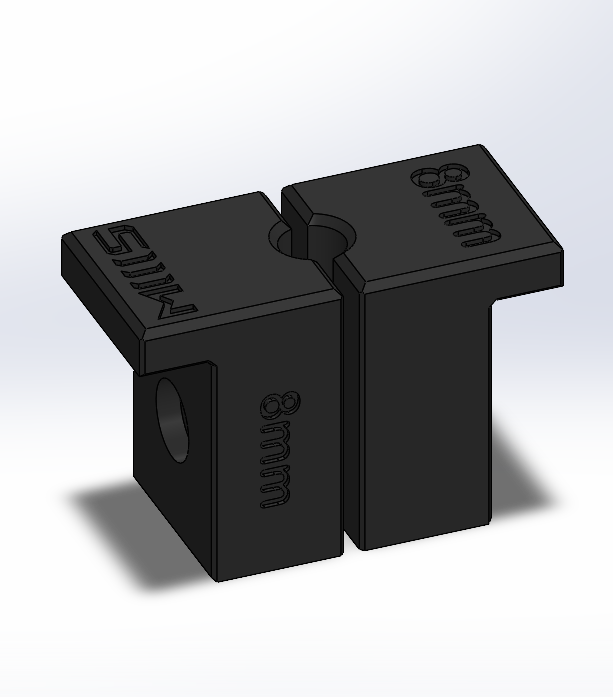

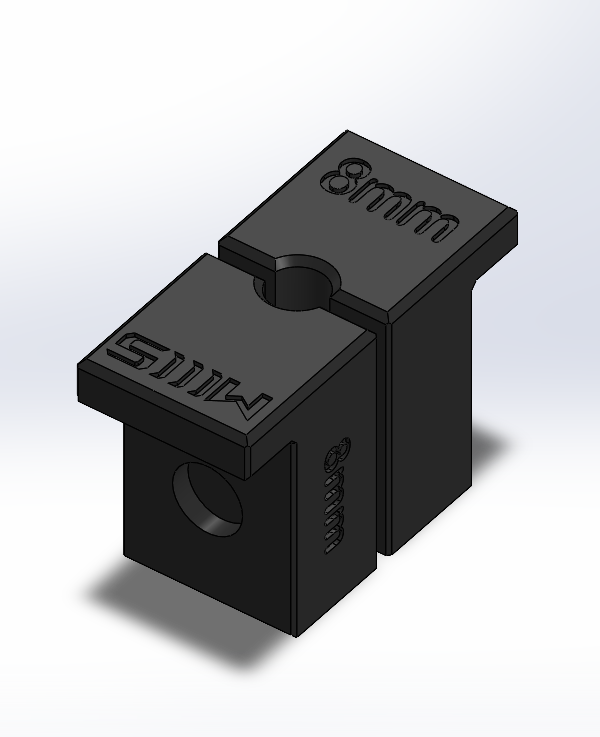

⚠️ Product photo shows a 3/8" (9.5 mm) clamp, actual 8 mm version may differ.
What It Does
This clamp securely holds 8 mm shafts in your bench vise for service. Ideal for removing eyelets, damper pistons, rebound assemblies, or air pistons in forks. It fits tightly and safely, when used properly.
- Fits: Some Cane Creek DB Coil shocks (8 mm versions only which are the older ones)
- Fits: 2020+ FOX FIT4 dampers
- Common use: Fork internals and small damper jobs
- ❌ Not for air shocks with eyelets attached, use horizontal clamp instead
Tip: Some Cane Creek DB Coil models now use a 9.5 mm shaft instead. Confirm before clamping, 8 mm clamps will not fit oversized shafts.
Setup Instructions
- Clean the shaft thoroughly with isopropyl alcohol, multiple passes
- Wrap the shaft in a dry paper towel before clamping
- Apply even vise pressure; do not overtighten
- Heat any Loctited part, FOX often uses red Loctite on eyelets
Read the full shaft clamp usage guide
Match Your Torque: Use our luggage scale torque calculator to safely estimate torque on your eyelet or damper shaft.
⚠️ Reminder: Improper cleaning, oily shafts, or using the wrong clamp size will lead to slippage and clamp damage. If it doesn’t fit easily, double-check your shaft diameter and ensure the clamp is fully seated.
Disclaimer
⚠️ These clamps are for home mechanics only. Improper use can cause shaft or clamp damage. Always follow proper technique. By purchasing this product, you agree to our terms of service.
