Shockwave Parts
9.5 mm-3/8" Shaft Clamp
9.5 mm-3/8" Shaft Clamp
Couldn't load pickup availability
⚠️ Important Safety Warning
Always depressurize air and damper circuits before disassembly. If your shock or fork is still pressurized, removing the eyelet, sealhead or opening the damper in general can cause injury or damage.

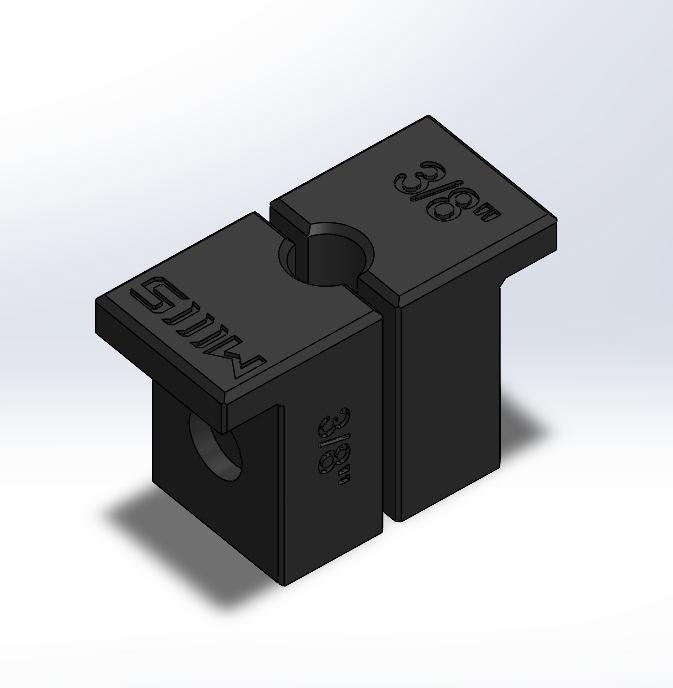

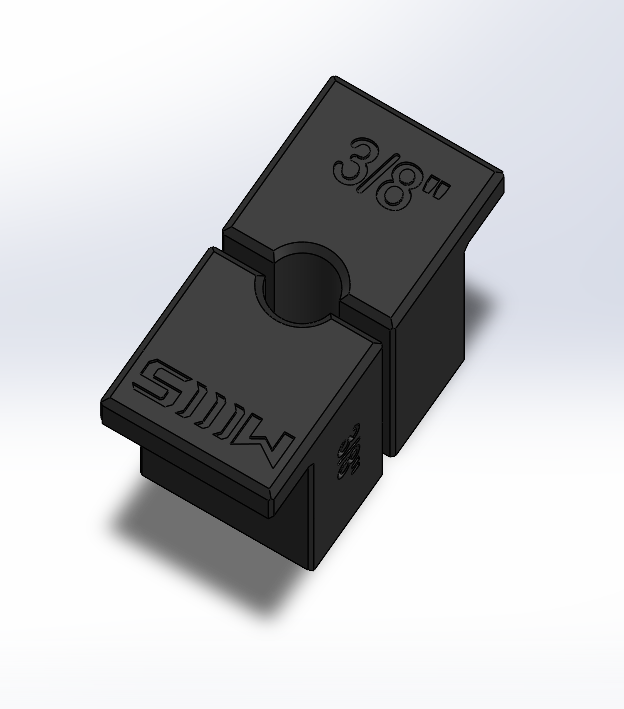

9.5 mm / 3/8″ Shaft Clamp
Designed specifically for 9.5 mm (or 3/8″ / 9.525 mm) damper shafts. This size is mostly found on coil shocks, not air shocks or forks.
⚠️ Product image shows the DHX2 3/8″ version as an example. Actual model may vary slightly.
What It Does
This clamp locks a 9.5 mm shaft into your bench vise during damper service, including piston removal or eyelet installation. The bore is tight-fitting and ribbed internally to prevent rotation under torque.
- Fits: 2021-2025 Fox DHX2
- Fits: Cane Creek Kitsuma Coil (confirmed)
- Fits: Some Cane Creek CS Coil (non-inline)
- ❌ Not compatible: Float X2 or air shocks with eyelet attached
Tip: This clamp is also a match for any 3/8″ damper shaft (9.525 mm). If your shaft feels loose, confirm you're not mistaking it for a 10 mm or 8 mm shaft, use calipers when in doubt but be careull not to scratch the shaft.
Setup Instructions
- Clean the shaft thoroughly with isopropyl alcohol, multiple passes
- Wrap it in a dry paper towel to increase grip and protect the surface
- Apply even vise pressure, never overtighten
- Heat Loctited areas like the eyelet, FOX often uses red Loctite
Read the full shaft clamp usage manual
Match Your Torque: Use our luggage scale torque calculator to estimate torque when removing eyelets or pistons.
⚠️ Reminder: Improper cleaning, oily shafts, or using the wrong clamp size will lead to slippage and clamp damage. If it doesn’t fit easily, double-check your shaft diameter and ensure the clamp is fully seated.
Disclaimer
⚠️ These clamps are for home mechanics only. Improper use can cause shaft or clamp damage. Always follow proper technique. By purchasing this product, you agree to our terms of service.
